Duplo DB-250 User Manual

42

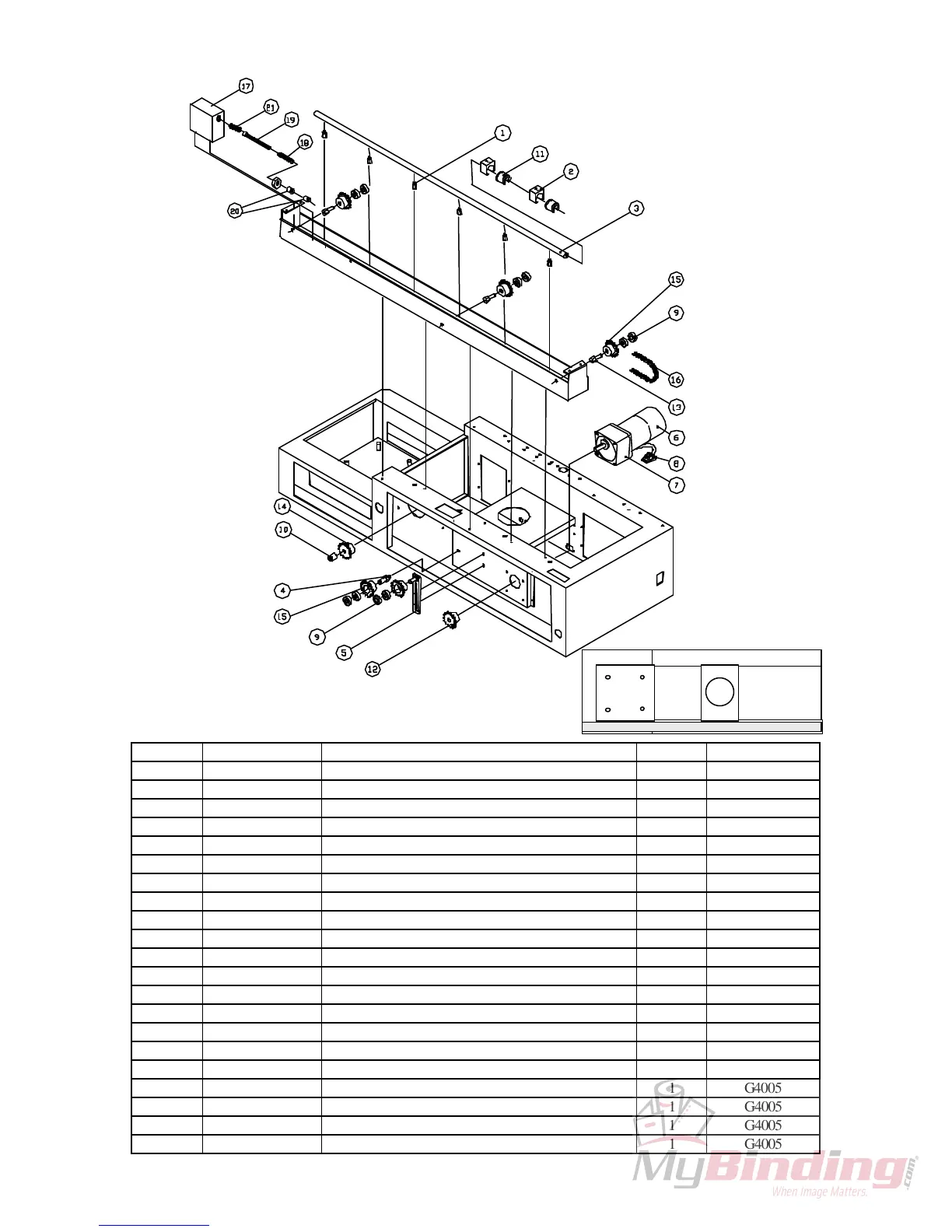

6. Driving Section
INDEX PARTS NO. DESCRIPTION QTY AREA
1 E4001 Driving Shaft Screw 6
2 E4002 Driving Shaft Slide Seat 2 G4001
3 E4003 Driving Shaft 1
4 E4004 Sprocket Shaft 1 1
5 E4006 Chain Adjustment 1
6 E7101 Main Motor ( M1 ) 1 G4002
7 E7101-G Main Motor Reduced Gear Box 1
8 E7402-W Main Motor Power Connector - female 1 G4002
9 E8101 Chain Shaft Bearing 10 G4003
10 E8105 Glue Drum Bearing 1 G4004
11 E8106 Driving Shaft Slide Bearing 2 G4001
12 E9001 Sprocket Gear 1 1
13 U4007 Sprocket Shaft 2 3
14 U9006 Sprocket Gear 2 1 G4004
15 U9007 Sprocket Gear 3 5 G4003
16 U9011 Chain 1
17 E4008-1 Bumper Mounting Block 1 G4005
18 E4008-2 Bumper Rough Adjust 1 G4005
19 E4008-3 Bumper Shaft 1 G4005
20 E4008-4 Bumper Fine Adjust 1 G4005
21 E8206 Bumper Spring 1 G4005

Duplo DB-250 Specifications

General

Brand	Duplo
Model	DB-250
Category	Binding Machine
Language	English
