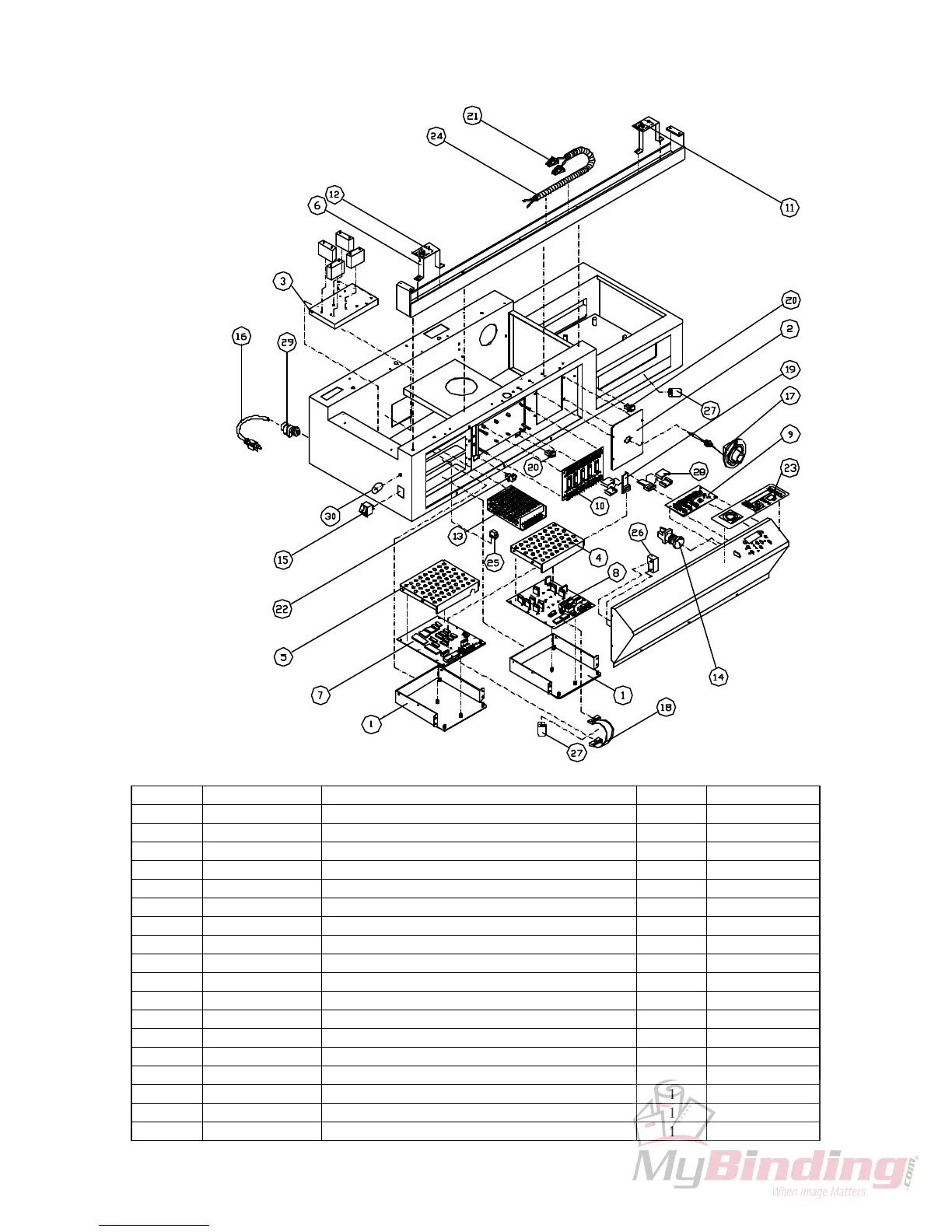

7. Electricity Section

INDEX PARTS NO. DESCRIPTION QTY AREA

1 E6011 PCB Box Base 2

2 E6012 Temperature Switch Bracket 1

3 E6014 Capacitance Base 1

4 E6015 PCB SSR Cover 1

5 E6016 PCB CPU Cover 1

6 E6404 Photo Switch Bracket 2

7 E7201 TG-200 CPU 1

8 E7203 TG-200 SSR 1

9 E7202 TG-200 Panel 1

10 E7204 TG-200D2 Fuse PCB 1

11 E7205 Photo Switch (LS1) 1

12 E7205 Photo Switch (LS2) 1

13 E7301 Switch Power 1

14 E7302 Emergency Switch 1

15 E7303 Main Power Switch 1

16 E7304 Main Power Chord 1

17 E7306 Temperature Switch 1

18 E7308 PCB Cable ( 26 pin ) 1
