5. Driving Section
5-1 Mechanism

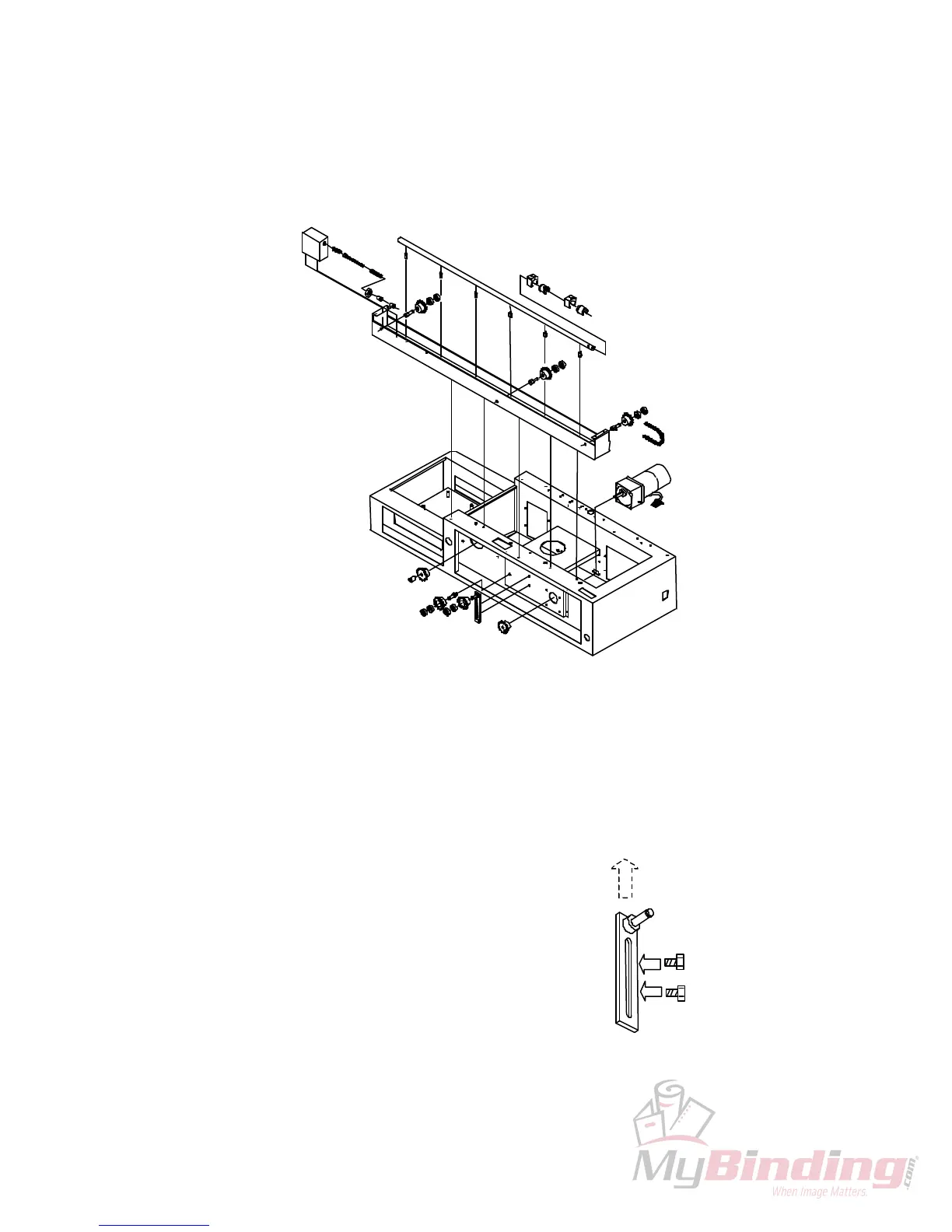

The mechanism for driving section is shown below.
5-2 Function
Provides driving power to move and locate the clamp station over the glue drum and
notching station, then return it back to the nipping station for covering and binding.
5-3 Adjustment
Adjust tensioner to eliminate any slack in chain.
