Duplo DBM-100 User Manual

9

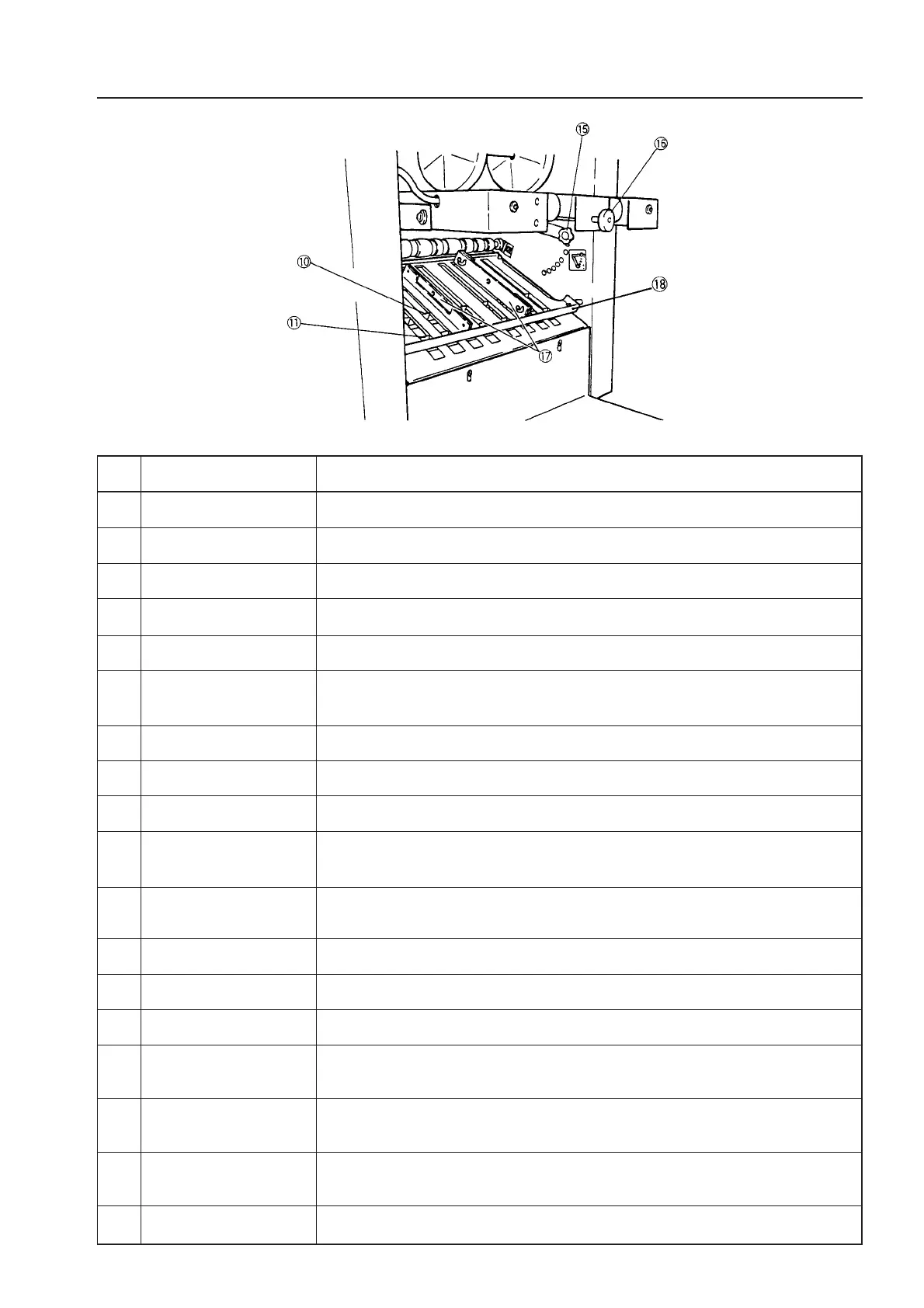

3. NAMES AND OPERATION OF PARTS
Side jogger
Back jogger
Conveyance unit
Conveyance belt
Conveyance roller
Ball unit
Stapler head
Clincher
Side-stapling stopper
Saddle-stapling
stopper
Folding position
stopper
Counter
Folding roller
Press roller
Clearance adjusting
lever
Belt conveyance unit
release
Clearance adjusting
plate
Folding plate
No. Name Operation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Aligns the width of the paper.
Aligns the length of the paper.
Holds the paper in conveyance.
Belt to convey the paper.
Roller to drive the conveyance belt and ball unit.
Conveys the paper from the saddle-stapling stopper to the folding position
stopper.
Staples the paper.
For flat stapling.
Stopper used for side-stapling or corner-stapling the paper.
Stoppers used when saddle-stapling the paper.
Stopper which decides the folding position.
Displays the maintenance period.
Roller for folding the saddle-stapled or center-folded paper.
Presses the fold made by the folding roller.
Clearance adjusting lever for the press roller.
Opens the belt conveyance unit.
Used for adjusting the clearance of the folding plate.
Guide for moving the paper to each stopper.
