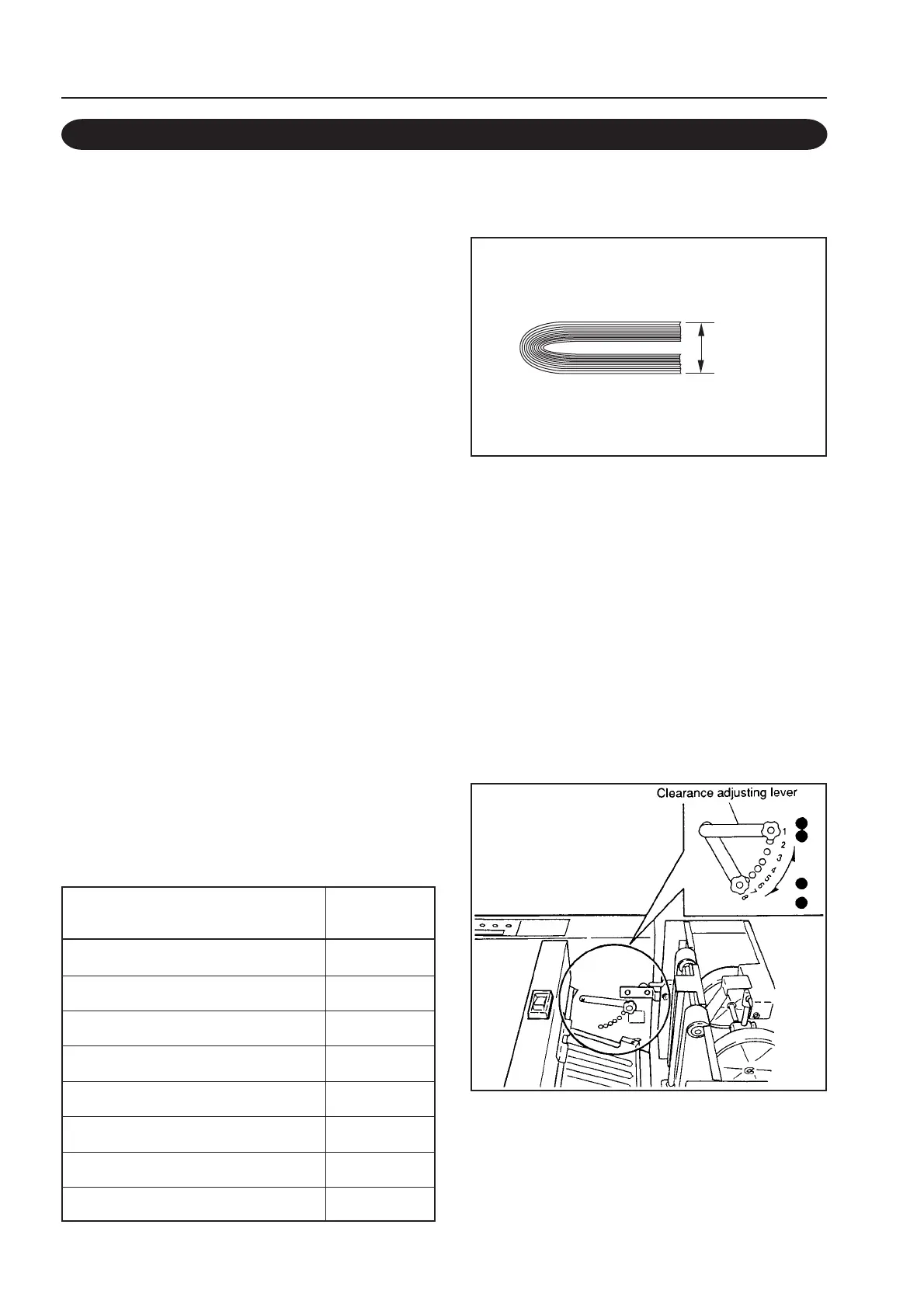

4-2. Adjusting the Press Roller Clealance
4. BINDING
If folding operations are to be performed, press roller clearance adjustment is required.
Set the clearance adjusting lever to an
appropriate position shown in the
following table according to the
thickness of the paper bound.
However, since conditions change
according to the paper quality, the
setting position of the lever may differ
from the following table.
The clearance adjusting lever is
provided at the left and right sides.
Be sure to set the same position number
for both the left and right sides.
1
2
3
4
This is to prevent the cover of the paper
bound from damages in binding
operations and to prevent paper
jamming during conveyance at the
folding section.
Lever
Position No.
Thickness for
One Binding
Below 1.7 mm
1.5 to 2.7 mm
2.5 to 3.5 mm
3.2 to 4.0 mm
3.7 to 4.5 mm
4.2 to 5.0 mm
4.7 to 5.2 mm
Above 5.0 mm
1
2
3
4
5
6
7
8
Paper bound
thickness
