1-5
11C-M12M0-0004-0

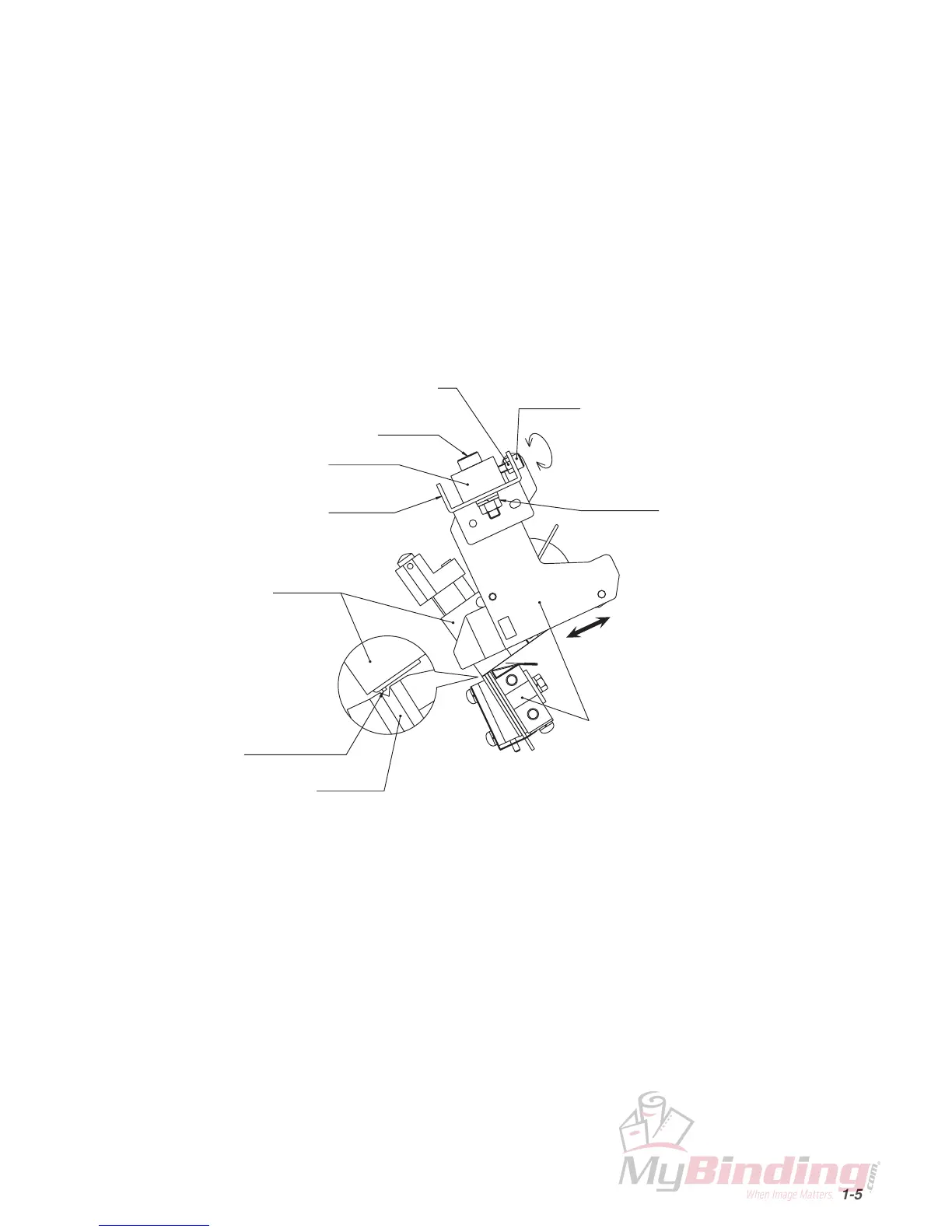

(2) Adjusting the front and back positions of the stapler unit
Adjust the position at which staples come out of the stapler unit to the groove of the clincher.
q Set the stapler unit with the staple cartridge removed and clincher at the 140 (5" 1/2) position of the indication
label.
w Rotate the crank shaft to the stapling position (bottom dead point).
e Loosen the M4 nut and M6 nut.
r Rotate the position adjusting screw (M4 capscrew bolt), and adjust the position of the staple guide so that the
position at which staples come out of the stapler unit (small projection) coincides with the groove of the
clincher.
t After completing the adjustment, tighten the M4 nut and M6 nut.
CFR4 × 20
N6, SW6, W6
CFR6 × 30
N4
Stapler unit
98R-2004X
(Small projection)
Position at which
staples come out
Clincher
11C-2308X
Move the stapler unit and
clincher to the 140 (5" 1/2)
position
Bracket
11C-2033X
Staple guide
11C-2012X
To Next Page
