8. FOLDING ADJUSTMENTS AND REGISTERING CORRECTIONS
8-1.
ADJUSTING THE FOLDING SLIPPAGE IN THE VERTICAL DIRECTION

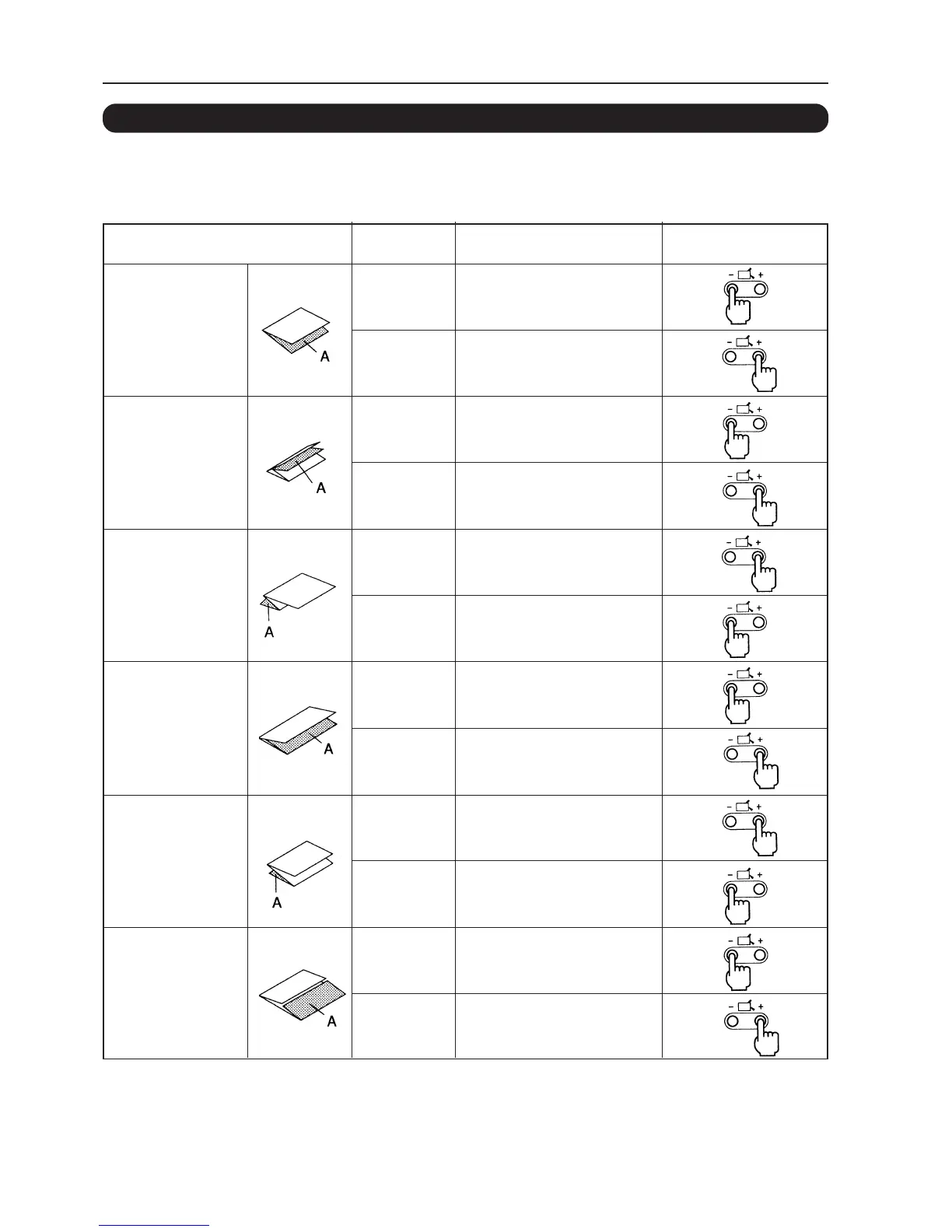

To adjust the folding slippage in the vertical direction, press the “folding stopper
adjusting” button.
Folding Style
Fold Surface A
Adjustment
Press the left button
Press the right button
Press the left button
Press the right button
Press the right button
Press the left button
Press the left button
Press the right button
Press the right button
Press the left button
Press the left button
Folding Plate 1
Adjusting Button
Single Fold
Double Fold
Letter Fold
Accordion Fold
Brochure Fold
Irregular
Accordion Fold
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
Press the right button
35
37
Table of Contents
Default Chapter
3
Safety Precautions
3
Table of Contents
4
1 Warning
5
2 Precation
7
3 Installing the Unit
8
Removing the Press Release Lever
8
Component Parts
9
Attaching the Parts
10
4 Names of the Parts
12
5 Names and Functions of the Control Panel Parts Panel Parts
13
6 Precautions before Use
15
Paper to be Used
15
Precautions for Stacking Paper
16
General Precautions
18
7 Operation Procedures
19
Fixed Folding of Fixed Paper
19
Folding Thick Paper
25
Double Folding Thick Paper
26
Special Folding of Fixed Paper
29
Calling the Registration
34
Switching the Mode Used
34
8 Folding Adjustments and Registering Corrections
36
Adjusting the Folding Slippage in the Vertical Direction
36
Registering the Folding Stopper Correction
38
Adjusting the Folding Slippage in the Horizontal Direction
40
9 Using Art/Coated Paper
41
Precautions for Stacking Paper
41
Operating Precautions
42
10 Using Non-Fixed Paper
44
Fixed Folding Procedure
44
Special Folding Procedures
46
11 Cross Folding
51
Precautions Upon Use
51
Cross Folding Fixed Paper
52
Cross Folding Un-Fixed Paper
54
12 Troubleshooting
57
Paper Has Jammed Near the Paper Feed Ring
57
Paper Has Slipped Near the Paper Feed Section
58
Paper Has Coiled Around the Rubber Roll Inside the Unit
58
Paper Has Jammed at the First Folding Plate
59
Paper Has Jammed at the Second Folding Plate
60
Paper Has Jammed Near the Stacker
62
13 Emergency Stops
63
14 Error Messages
64
15 Trouble Shooting Guide
66
16 Cleaning the Unit
69
Cleaning the Rubber Roll
69
Cleaning the Paper Feed Ring
70
17 Specifications
