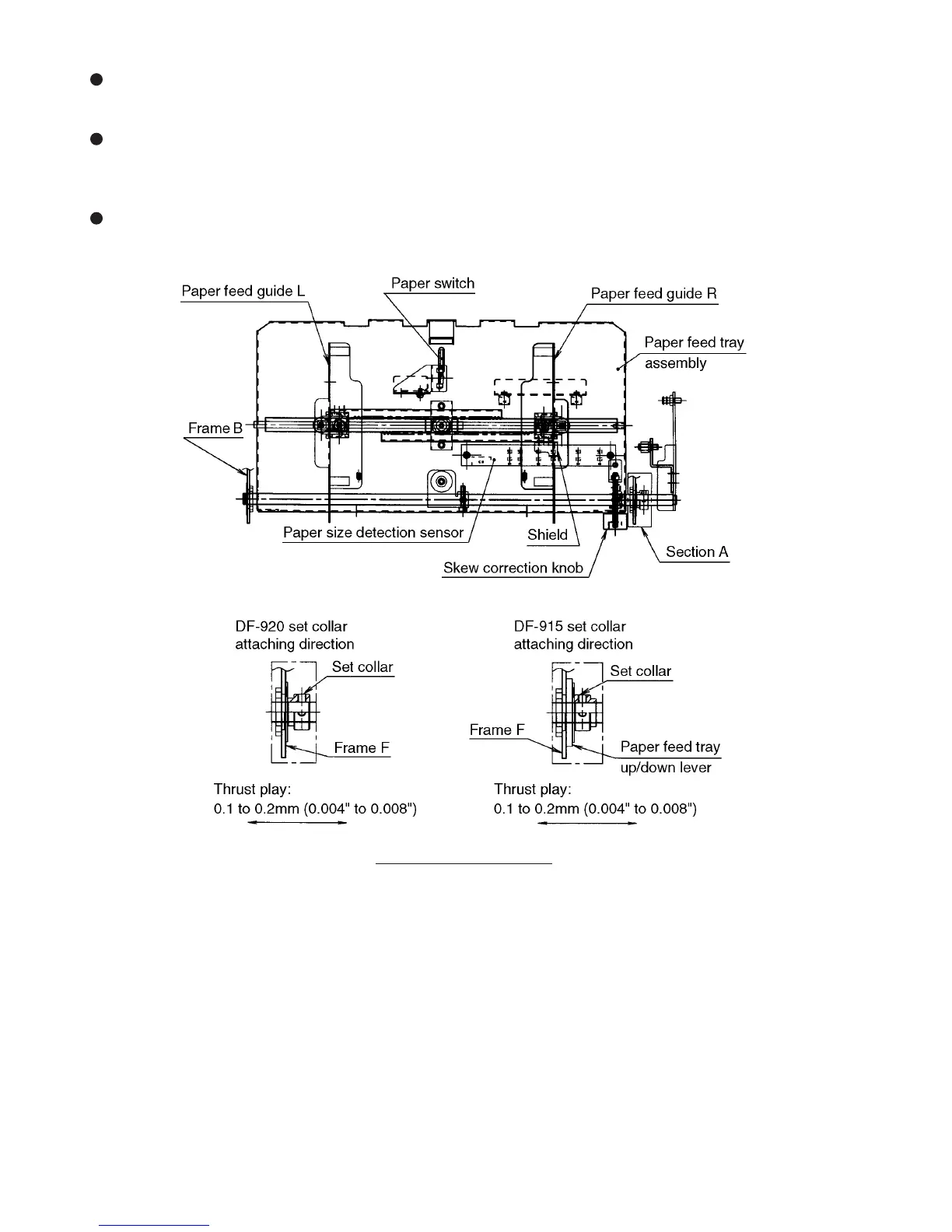

2-2-3. Attaching the paper feed tray assembly
Take note when attaching the paper feed tray assembly because the direction of the set collar differs between the
DF-920 and DF-915 according to whether the paper feed tray up/down lever is provided or not.
Secure the set collar with some thrust play (0.1 to 0.2 mm (0.004" to 0.008")). Otherwise, load increases when the
paper feed tray rises, resulting in insufficient paper feed pressure even if the pressure is adjusted, and paper slips
occur easily.
Apply a very small amount of oil to the area where the fixed plate bearing and hinge rod are connected.
(Orelube G90-140)
Enlargement of section A
