1-37
12H-M12M0-0309-0

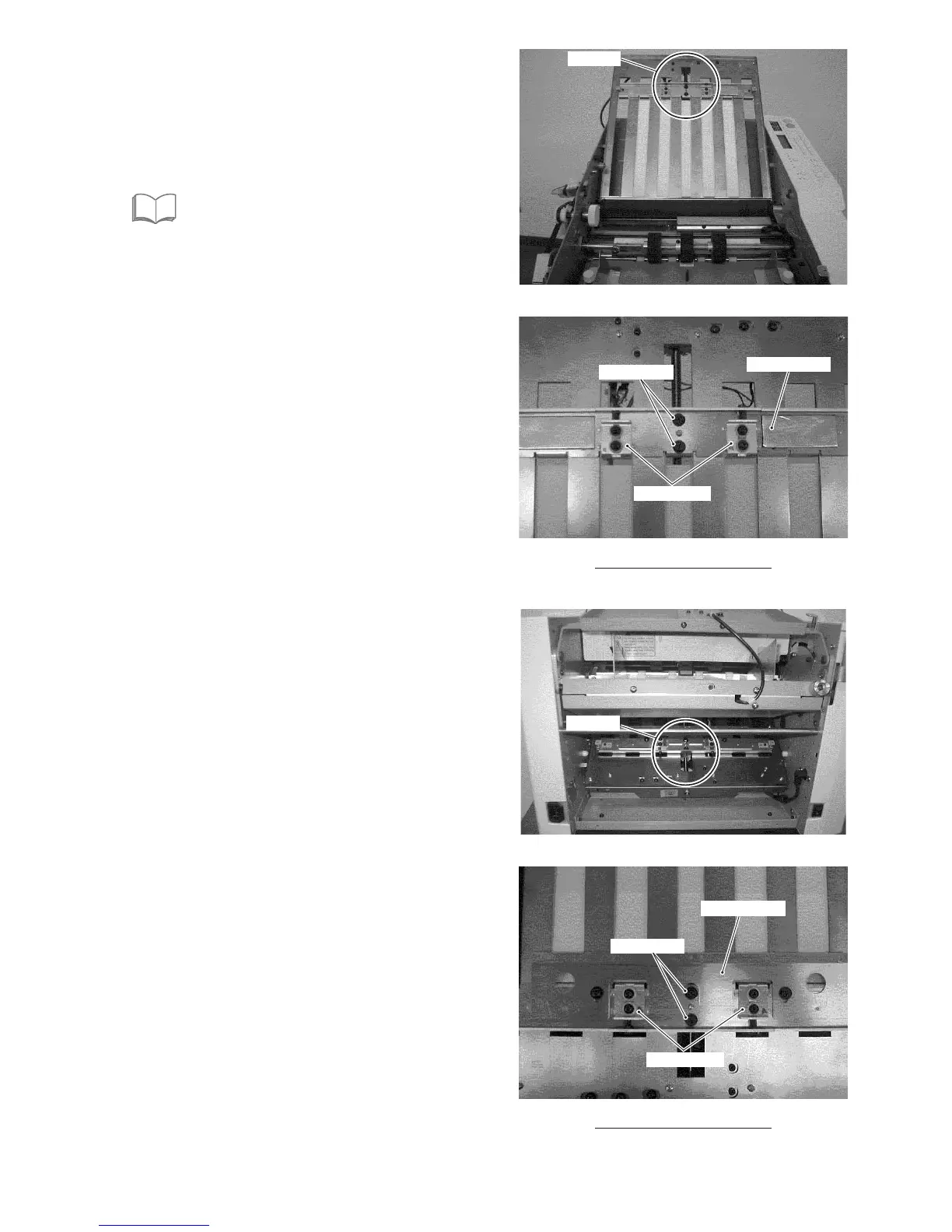

y Loosen the fixing screws of the folding stopper, and
adjust so that the folding stopper becomes parallel to
the lead edge of the paper, and then tighten the fixing
screws.
u If paper slips during conveyance in t, check the left
and right roller nips of the idler roller.
“2-1-2. (4) Attaching the drive gear (helical
gear) of folding roller”
SeeSee
i Rotate the jam correction knob, and move the lead
edge of the paper near the slide stopper of folding
plate 2.
o Loosen the fixing screws of the folding stopper, and
adjust so that the folding stopper becomes parallel to
the lead edge of the paper, and then tighten the fixing
screws.
Enlargement of section A
Enlargement of section B
Section A
Fixing screws
Folding stopper
Slide stoppers
Fixing screws
Folding stopper
Slide stoppers
Section B
To Next Page
