1-5
12H-M12M0-0309-0

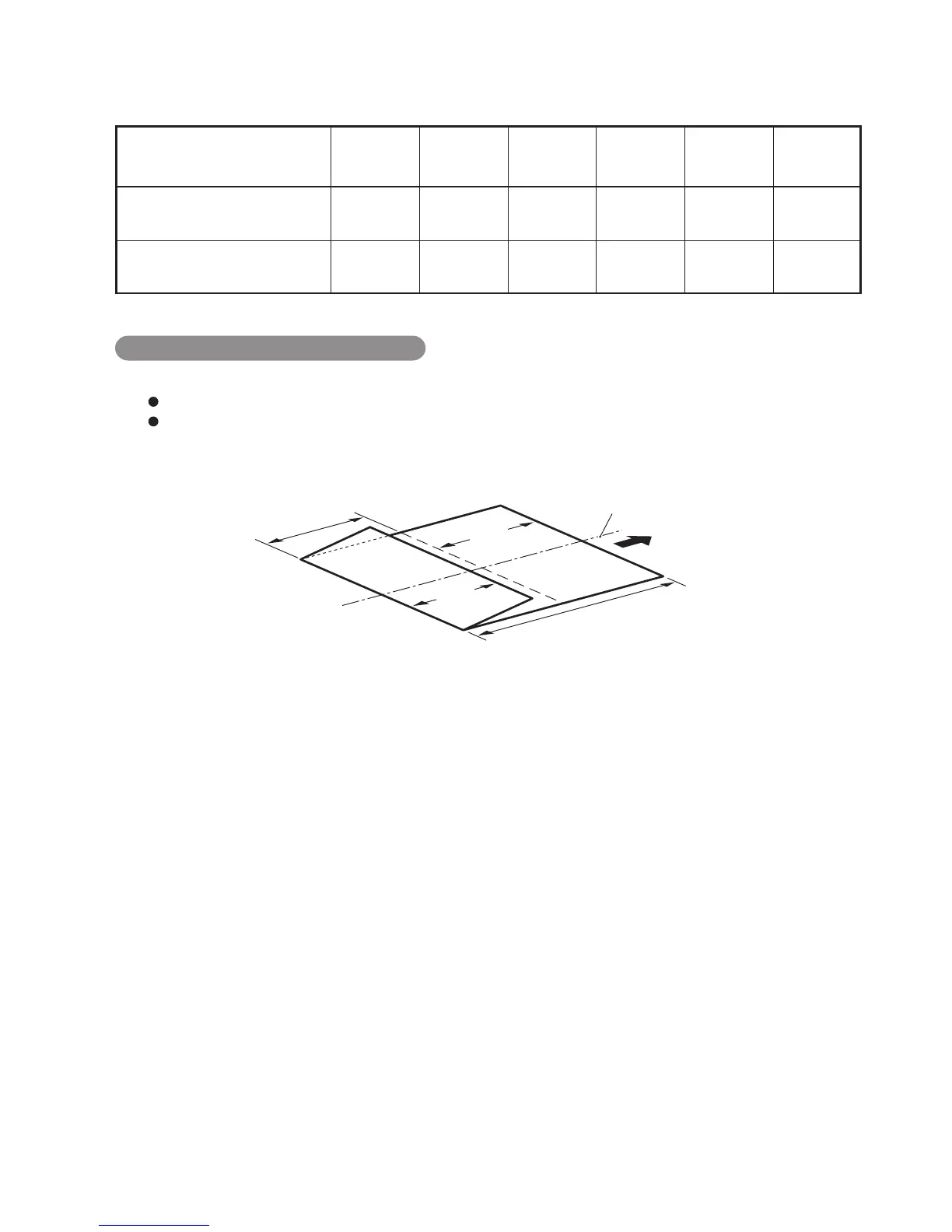

1-2-2. Folded size by folding plates 1 and 2 in each folding mode (theory)
The values in the table below are theoretical values. In actual use, folded size is finely adjusted according to the
folding mode to prevent dog ears and curling of paper.
Folding mode
Single
fold
Folded size by folding plate 1
(Ratio to paper length)
Folded size by folding plate 2
(Ratio to paper length)
1/2
0
Double
fold
1/2
1/4
Irregular
accordion
fold
1/4
1/4
Letter
fold
2/3
1/3
Accordion
fold
1/3
1/3
Brochure
fold
3/4
1/4
Example: Letter folding A4 (Letter) paper
A4 (Letter) paper length: 297 mm (11")
Folded size by folding plate 1: 199 mm (7.37") (About 2/3 of paper length)
Folded size by folding plate 2: 100 mm (3.70") (About 1/3 of paper length)
∗ Measure the folded size at the center of the paper.
Folded size by folding plate 1
199 mm (7.37")
Measuring point
(Center)
99 mm
(3.67")
98 mm
(3.63")
Folded size by folding plate 2
100 mm (3.70")
Paper feed direction
∗ ( ) shows the folded size for letter size paper.
To Next Page
