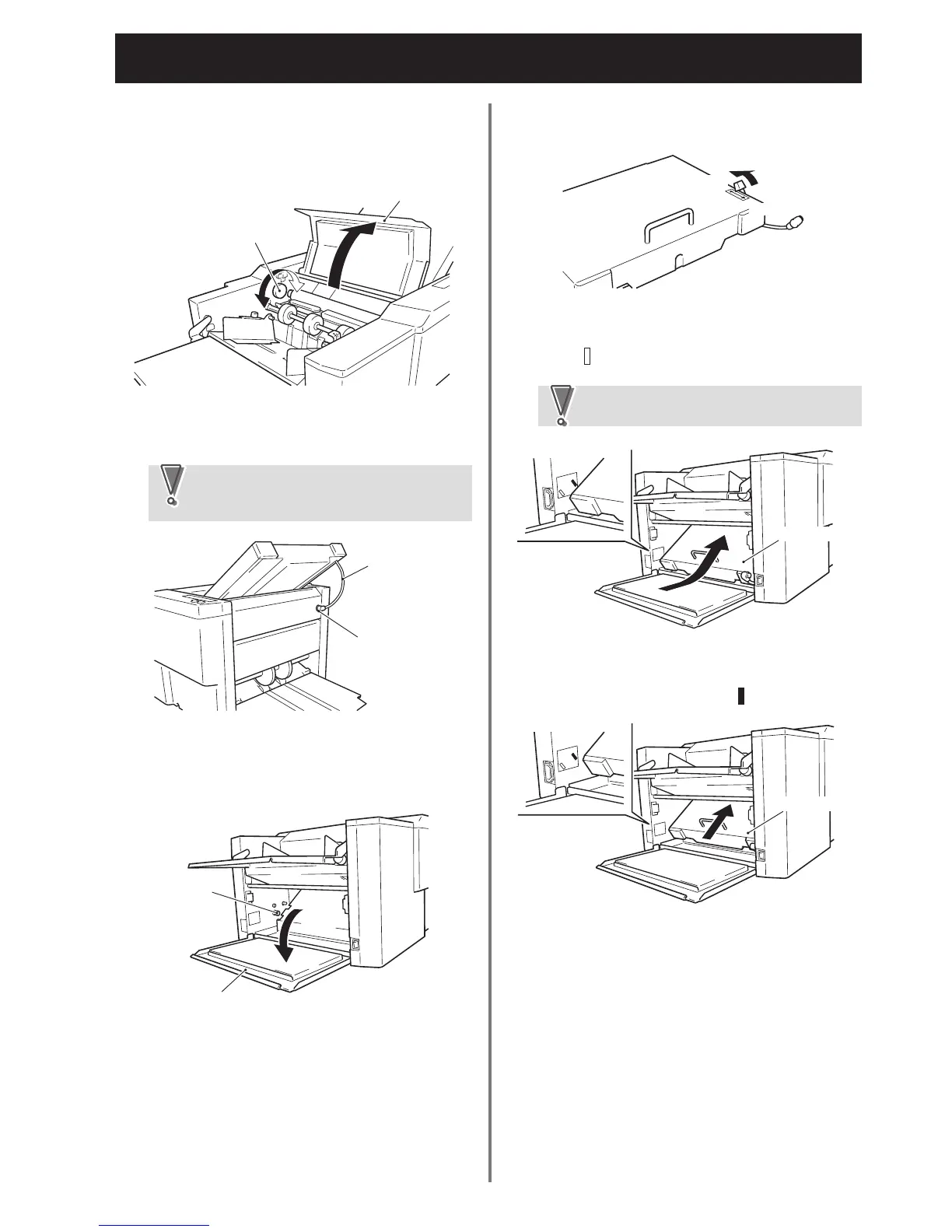

4. INSTALLATION
r Open the top cover, rotate the jam correction
knob to check that folding plate 1 is properly
secured. If the knob rotates smoothly, it means
that folding plate 1 is secured.
Jam correction knob
Top cover
t Connect control cord 1 of folding plate 1 to the
No.1 connector.
Be sure to turn off the power before
connecting or disconnecting the control
cord. Otherwise the unit will malfunction.
NoteNote
No.1 connector
Control cord 1
Attach folding plate 2.
q Open the side cover.
6
Side cover
Set guide
w Push the lock lever on folding plate 2 towards
“UNLOCK”.
UNLOCK
LOCK
e Push in folding plate 2 along the set guide to the
“2 ( )” mark. The safety stopper locks at this
position.
Folding plate 2
Be sure to insert the folding plate holding
the handle with both hands.
NoteNote
r While slightly lifting folding plate 2 with the
handle, push in it to the “1 ( )” mark.
1
2
Folding plate 2
To Next Page
