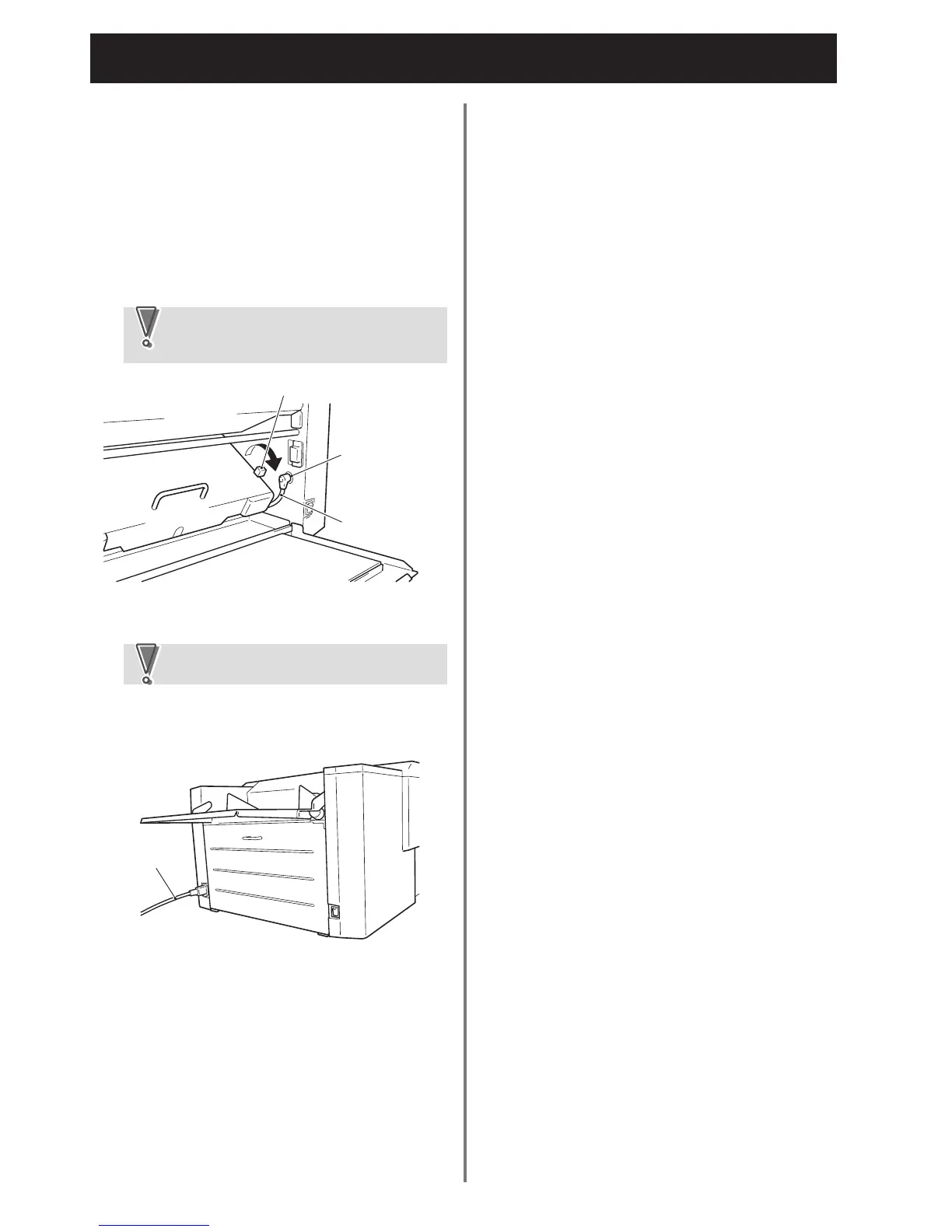

4. INSTALLATION
t Push the lock lever towards “LOCK”, and
secure folding plate 2.
y Move folding plate 2 up and down with the
handle to check that it is secured.
u Open the top cover, rotate the jam correction
knob to check that folding plate 2 is properly
secured again. If the knob rotates smoothly, it
means that folding plate 2 is secured.
i Connect control cord 2 of folding plate 2 to the
No.2 connector.
Be sure to turn off the power before
connecting or disconnecting the control
cord. Otherwise the unit will malfunction.
NoteNote
Lock lever
No.2 connector
Control cord 2
o Close the side cover properly.
Connect the power cord to the unit.
7
Power cord
Insert the power plug into the outlet.
8
If the side cover is open, the unit will not
operate.
NoteNote
