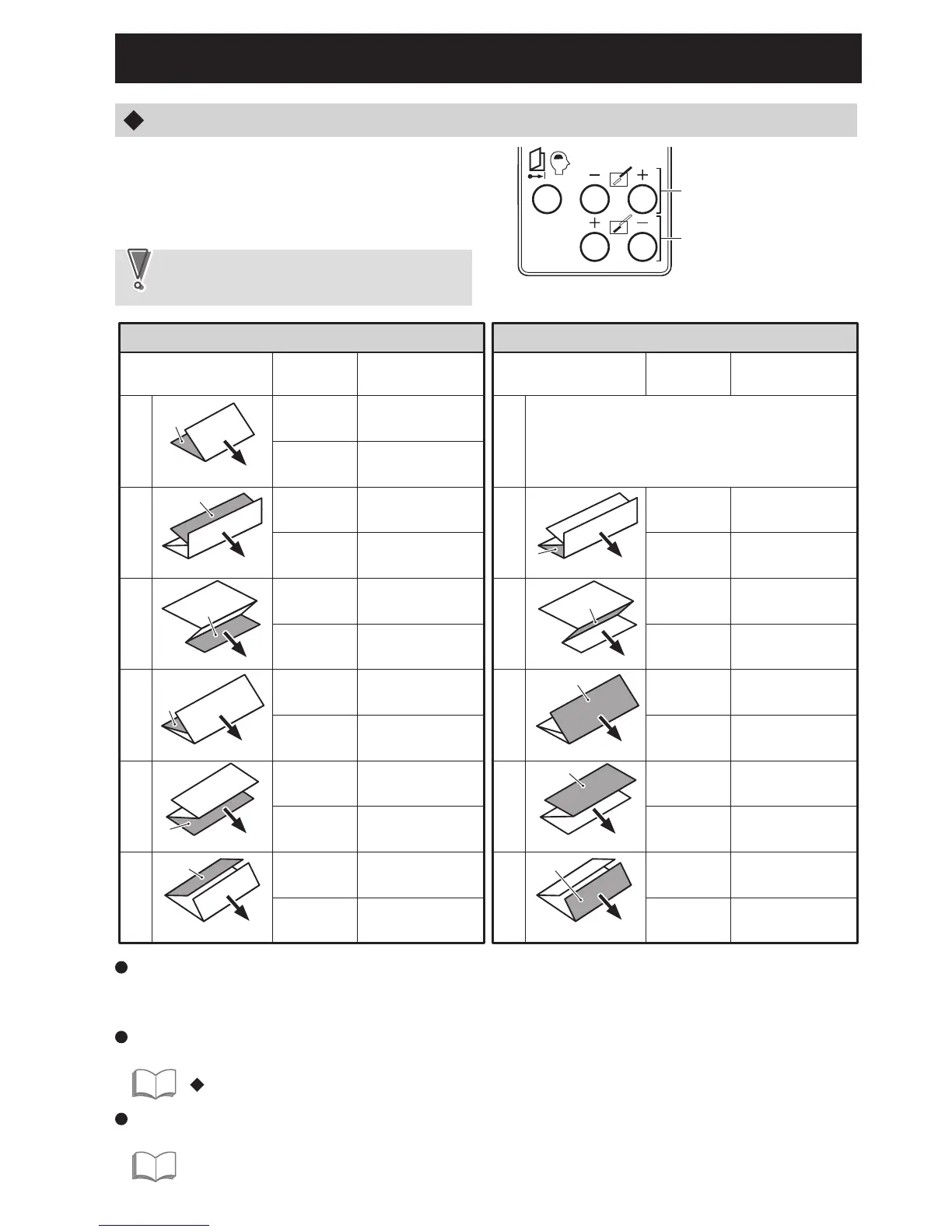

10. FOLDING MISALIGNMENT
Example of correcting folding misalignment along vertical length of paper by folding mode
Correct folding misalignment along the vertical
length of the paper in standard folding using
the folding stopper adjusting keys of folding
plates 1 and 2, referring to the following
example.
The positions of the “+” and “–” folding stopper
adjusting keys of folding plates 1 and 2 are
located opposite to each other.
NoteNote
Folding plate 1
folding stopper adjusting key
Folding plate 2
folding stopper adjusting key
The folding stopper moves by 0.005" every time the folding stopper adjusting key is pressed.
Pressing the adjusting key continuously moves the folding stopper continuously within the
range set.
The standard adjustable range is within ±0.2". Some paper may not be correctable in this range
due to restrictions.
“ Correction restrictions” (
☞
p.28)
When correction of more than ±0.2" from the standard paper size is required, consider such
paper as non-standard paper.
“11. STANDARD FOLDING OF NON-STANDARD PAPER” (
☞
p.32)
SeeSee
SeeSee
Adjusting key of folding plate 1
Folding mode Correction method
State of
folded plane A
A is long
A is short
Press the “+” key.
Press the “–” key.
A is long
A is short
Press the “+” key.
Press the “–” key.
A is long
A is short
Press the “–” key.
Press the “+” key.
A is long
A is short
Press the “+” key.
Press the “–” key.
A is long
A is short
Press the “–” key.
Press the “+” key.
A is long
A is short
Press the “+” key.
Press the “–” key.
Adjusting key of folding plate 2
Folding mode Correction method
State of
folded plane B
B is long
B is short
Press the “–” key.
Press the “+” key.
B is long
B is short
Press the “–” key.
Press the “+” key.
B is long
B is short
Press the “+” key.
Press the “–” key.
B is long
B is short
Press the “+” key.
Press the “–” key.
B is long
B is short
∗ Folding plate 2 is not used in single folding.
Press the “+” key.
Press the “–” key.
Single foldDouble fold
Irregular
accordion fold
Letter foldAccordion foldBrochure fold
Single foldDouble fold
Irregular
accordion fold
Letter foldAccordion foldBrochure fold
A
A
Ejection direction
Ejection direction
Ejection direction
Ejection direction
Ejection direction
Ejection direction
B
A
A
B
B
B
A
A
B
Ejection direction
Ejection direction
Ejection direction
Ejection direction
Ejection direction
