TC-12 TREE CHIPPER OPERATING INSTRUCTIONS
2.2 Engine Control Panel

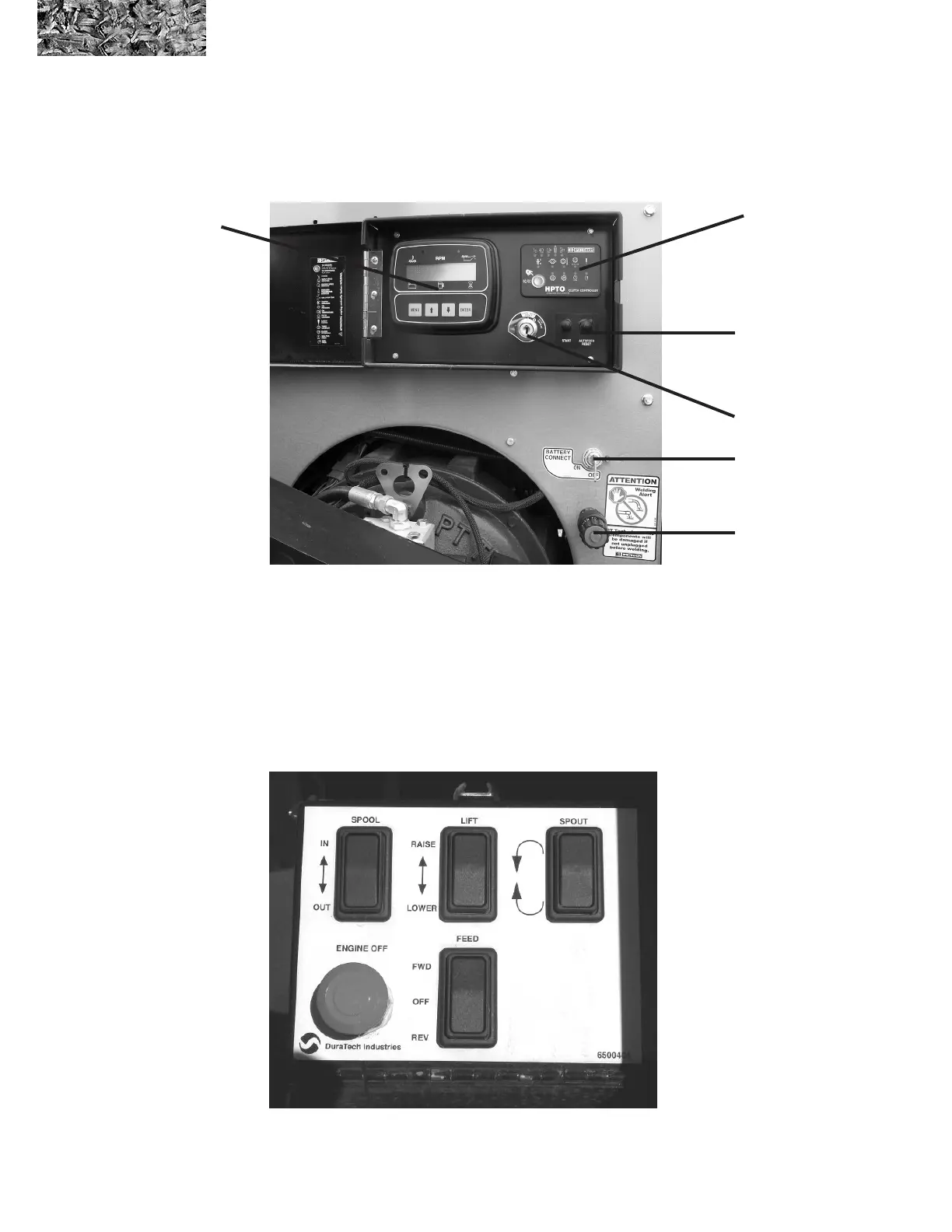

The engine control panel is located on rear of the engine compartment. Controls and gauges on the control panel in-
clude the key switch, fuel gauge, safety bar reset, and the engine management screen and controls.
Engine management system
5701021 - CAT (Tier II)
5701022 - Kubota Mechanical
Dry clutch
display - 57000916
Start and feed reset
switch - 5700831
Boot - 5700639
Battery disconnect
- 5700016
Key switch
Left side control panel
Located on the left side of the machine, the switches control the spool, lift, spout, feed mode and engine off.
Throttle cable
- 7501541
