TC-12 TREE CHIPPER OPERATING INSTRUCTIONS
Adjusting the belt tension on the TC-12 Chipper
1. Open belt shield.
2. Loosen all (6) bolts on the engine mount.
3. Using the “Tensioning Procedure”, adjust belt tension using the tensioner rod on the tension assembly.
4. Retighten the (6) engine mounting bolts.
5. Close belt cover.
Torques for sheave bolts
Disc side sheave (1400618) torque for bolts is 900 in-lbs (124.4 m-kg) and 720 in-lbs (99.5 m-kg) for engine side
sheave (1400617).

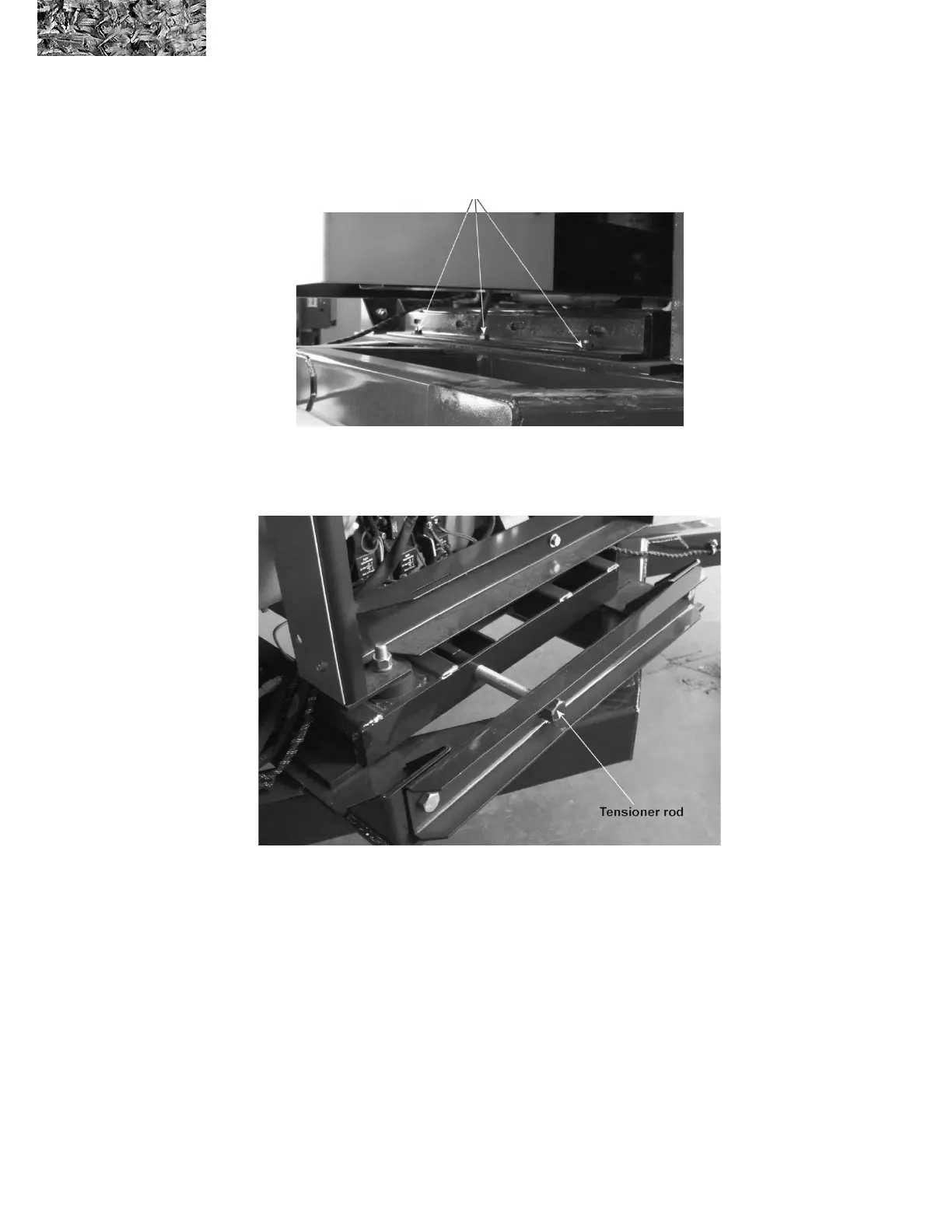

Location of the engine mounting bolts
