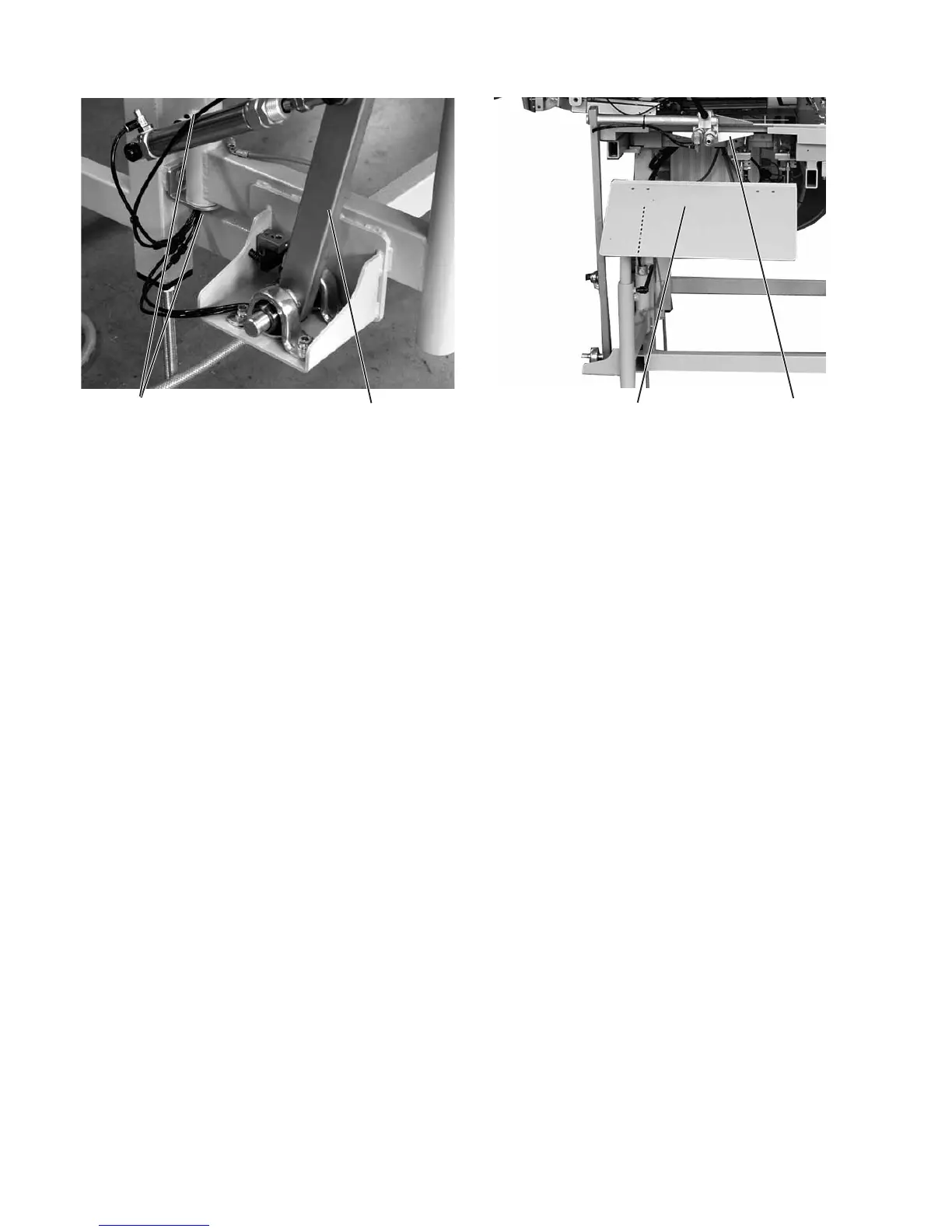

4.3 Pincer stacker (optional equipment)
The pincer stacker 1 (Order No. 0745 427514) is fastened to the s tand
of the sewing unit with two fastening screws 2.
Basic position
• Stacker bow at the front, stacker tongs open.
The open stacker tongs 3 should be positioned 20-25 mm in front
of the table top so that the workpiece can pass by.
• With the stop signal the stacker tongs moves to the front and grips
the workpiece.
• The stacker bow swivels to the back pulling the workpiece from the
table top.
–
Adjust the movement of the stacker bow with the throttling devices
in such a way that no jerky movements can be made.
•
The stacker tongs opens.
•
The workpiece is placed on top of the stacker plate 4.
The height of the plate has to be positioned in such a w ay that the
workpiece is put down safely.
•
The stacker bow swivels to the front.
10
21
43
