7. Oil lubrication
Caution: Danger of injury !
Oil can cause skin rashes.
Avoid longer skin contact.
After contact wash yourself thoroughly.
ATTENTION !
The handling and disposal of mineral oils is subject to legal
regulations.
Deliver used oil to an authorized collecting s tation.
Protect your environment.
Be careful not to spill any oil.
For filling up the oil reservoirs use nothing but DA-10 lubricating oil or
an equivalent oil with the following specification:
–
Viscosity at 40° C: 10 mm
2
/s
–
Ignition point: 150° C
DA-10 is available from the DÜRKOPP ADLER AG sales offices under
the following parts numbers:
250 ml Container: 9047 000011
1 l Container: 9047 000012
2 l Container: 9047 000013
5 l Container: 9047 000014

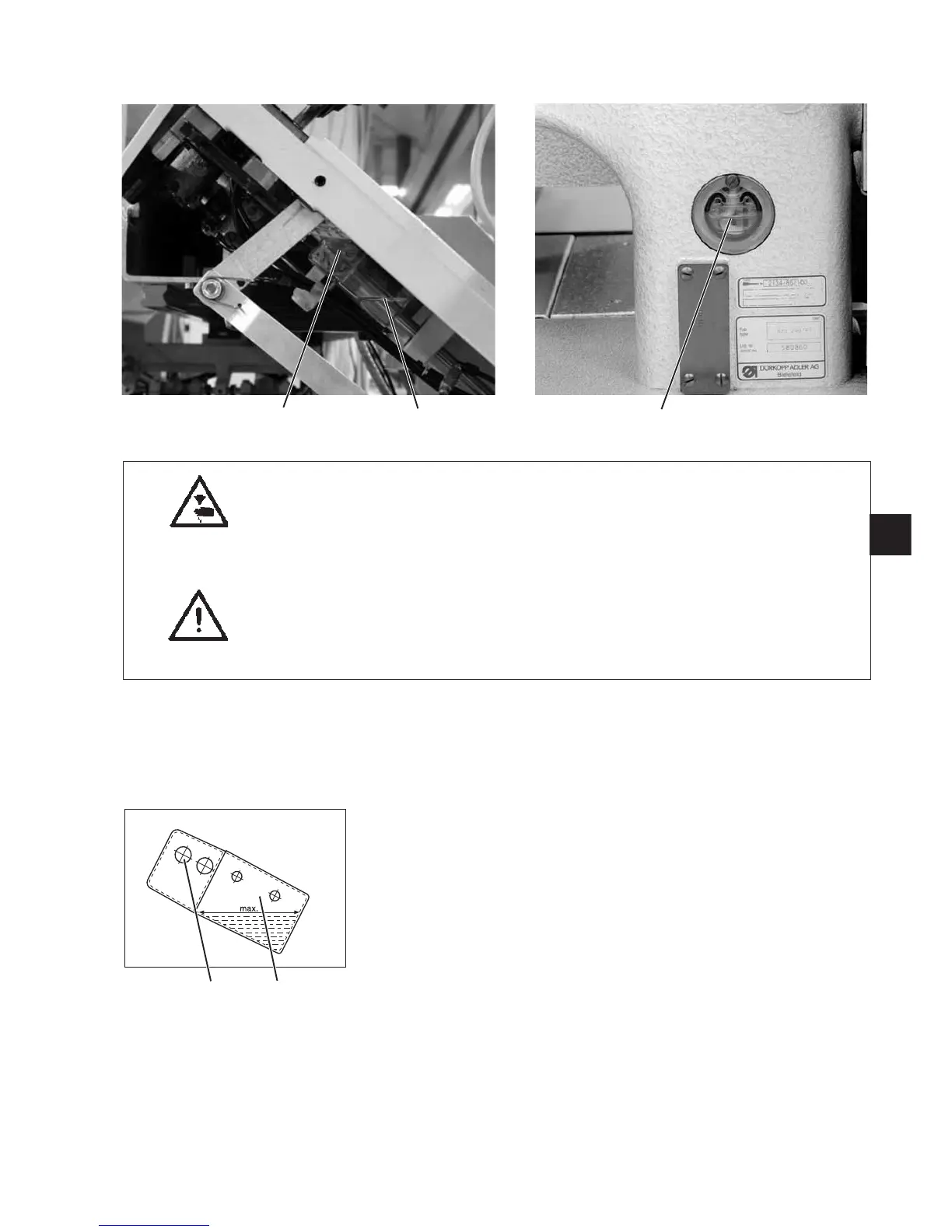

Oil reservoir for lubrication of t he machine head
–
Fill oil reservoir 1 with oil through the drill-holes in the inspection
glass.
The oil level must be between the “Min” and “Max” markings.
Oil reservoir for hook lubrication
–
Tilt the machine head up until the locking bow snaps in
(see Operating Instructions Chapter 2.3)
–
Fill oil reservoir 2 with oil up to the “max.” marking through nipple 3
(see sketch).
2
17
32
1
32
