DURKOPP ADLER 888 - Fitting the Side Guards

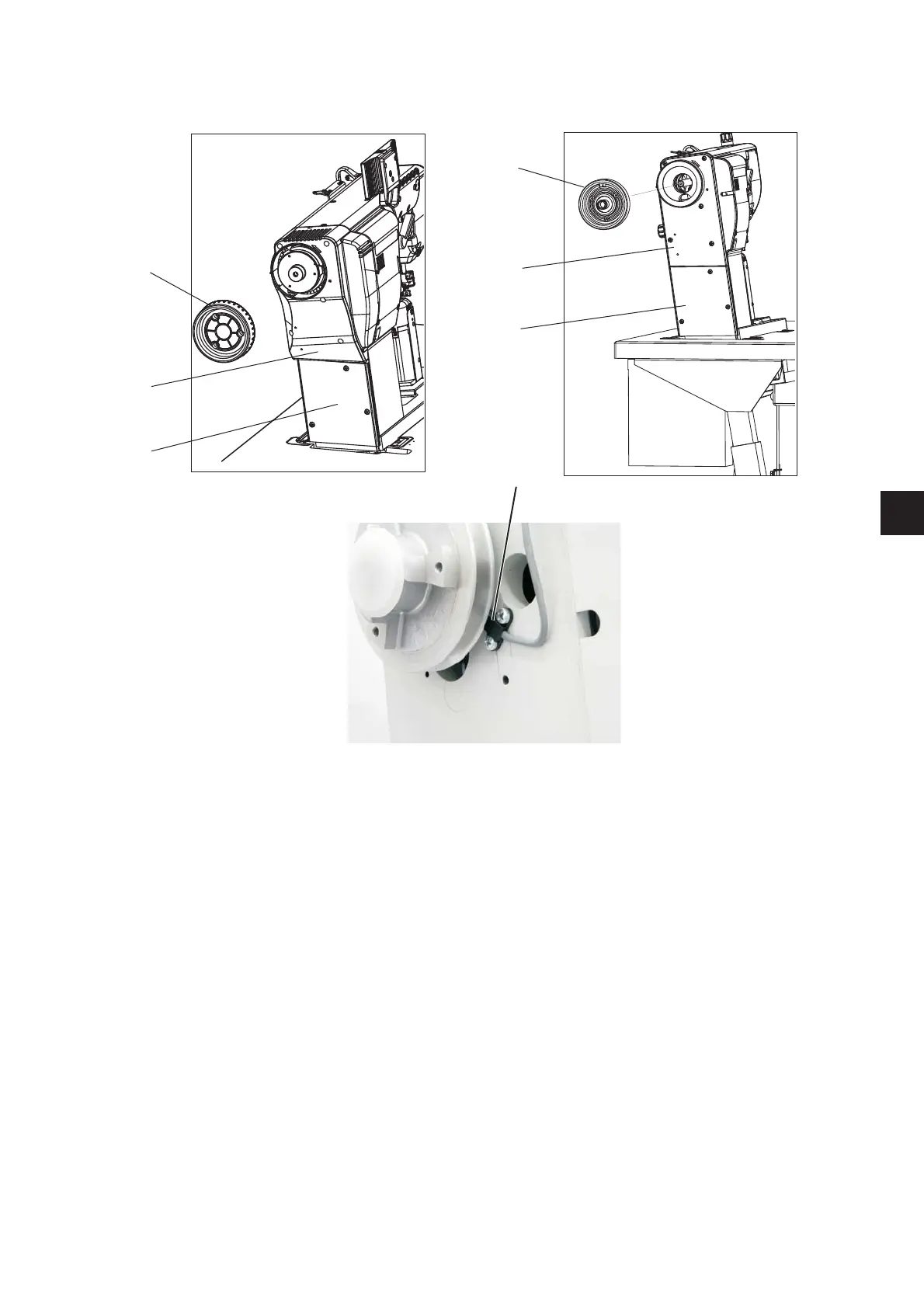

4.2 Fitting the side guards
–
Disassembly the hand wheel (1).
–
In the machines with the direct drive mount the guards (2) and (3)
on the machine head (the guard is included in of the motor part
set).
–
In the machines with the motor on the sewing head and with 1,55:1
toothed belt driving gear, mount the proximity switch (6). It is
included in the “kit for motor“.
–
In the all machines with the motor on the sewing head mount the
guards (4) and (5) on the machine head (the guard is included in of
the motor part set).
–
Mount the hand wheel (1). Doing this, observe the correct angle
position: if the needle is in the upper dead point, there should be
the 0° value on the hand wheel scale.
11
EN
1
2
3
1
4
5
6
