DUSK ISLA - IS 翻盖储物柜 ISL-TAU-HDDK 说明书 英文注释版241225 Model (1)

Page 10
Step 9
Step 10
C
4pcs
D
4pcs
D
D
D
D
C
C
C
C
3
2
9
K
L
M
x4
N
O
O
O
O
K
4pcs
L
4pcs
M
4pcs
O
4pcs
N
1pc
9
2
3
16
16
16
16
16

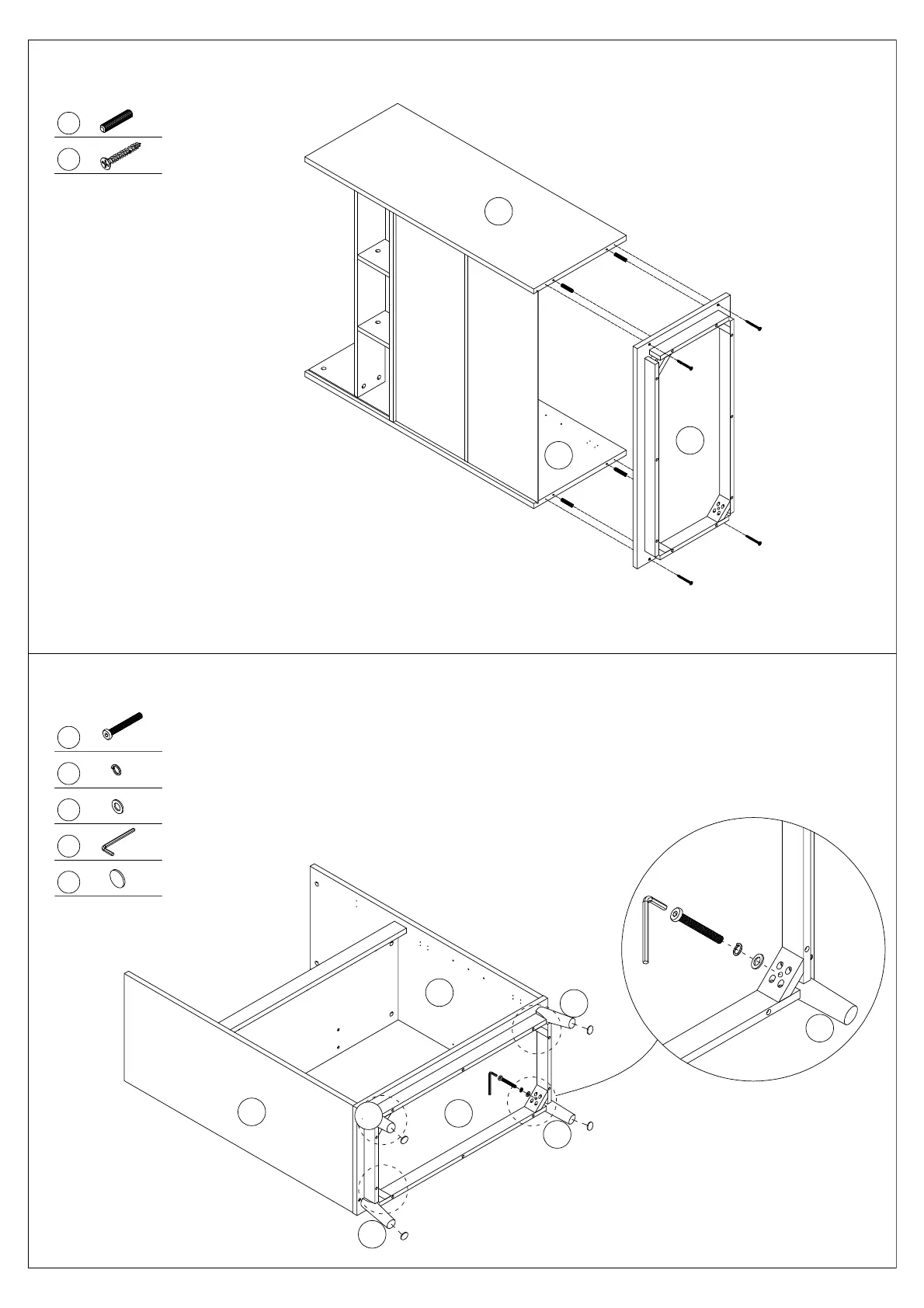

Attach the board 9
to the board 2 and
board 3 with wooden
dowel(C) then use
screw D to fix them.
Connect leg 16 to the frame on the board 9,put metal
plate(L) and (M) onto the screw rod(K) at first then tighten
the screw rod(K) with an Allan wrench,finally stick the
foot pads(O) onto the legs as shown.
