DUSK ISLA - IS 翻盖储物柜 ISL-TAU-HDDK 说明书 英文注释版241225 Model (1)

Page 14

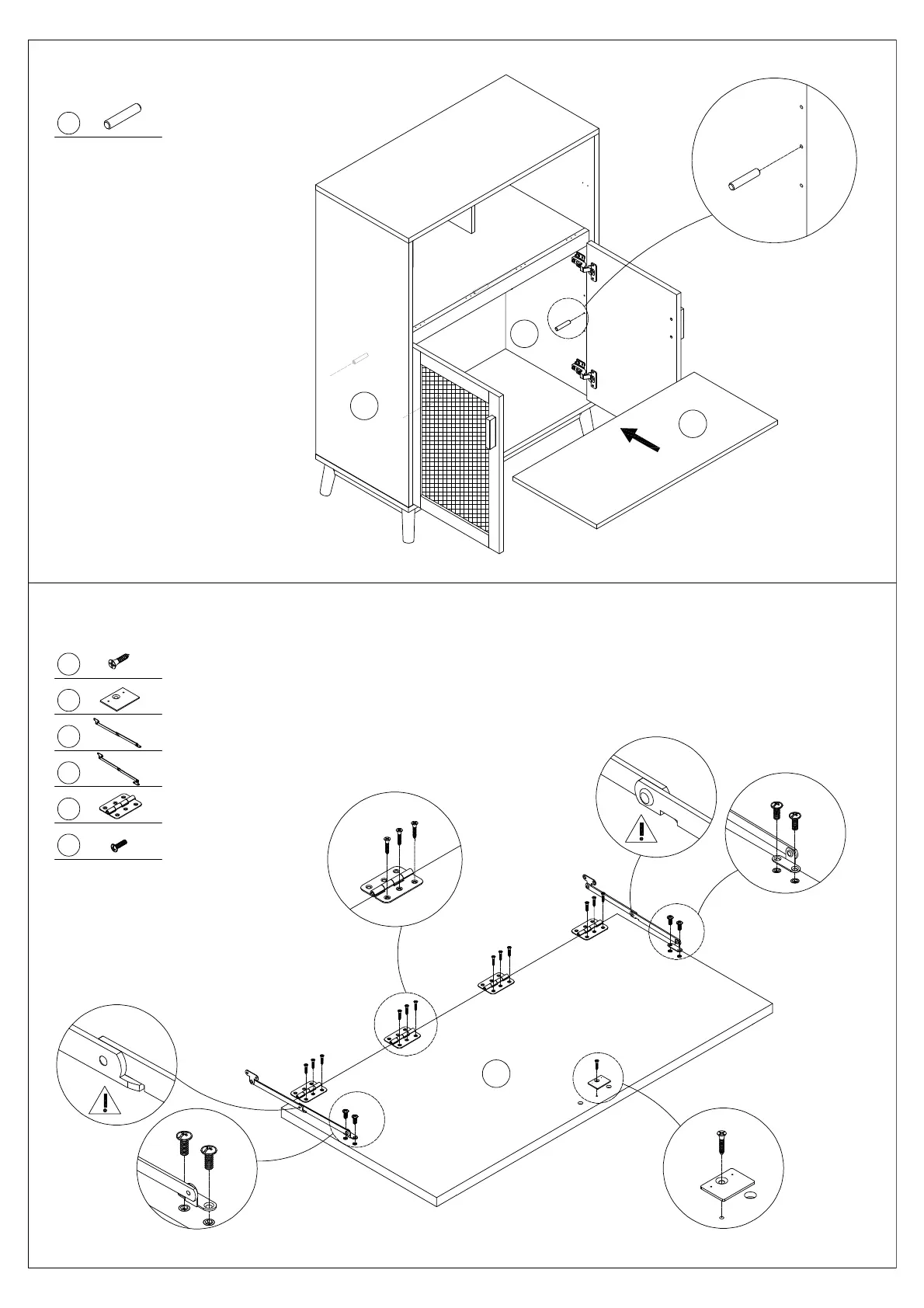

Step 16
V
4pcs
Step 17
V
V
V
V
2
3
8
V
10
E
13pcs
U
1pc
W
1pc
Y
X
1pc
Z
4pcs
E
E
E
U
E
Y
Y
Y
Y
Y
Ex3
Ex3
Ex3
Ex3
W
X
Z
Z
Z
Z
Z
Z
X
4pcs
Z
Z
W
W
X
Insert the shelf
support to the
board 2 and board
3 then put the
board 8 into the
cabinet as shown.
Fix hinge(Y) to the board 10 with screw(E).
Fix metal plate to the board 10 with screw(E).
Fix hinge W and X to the board 10 with screw(Z)
