DUSK ISLA - IS 翻盖储物柜 ISL-TAU-HDDK 说明书 英文注释版241225 Model (1)

Page 12
Step 13
B
4pcs
C
4pcs
T
4pcs
Step 14
S
S
R
T
T
T
T
B
B
B
B
C
C
C
C
1
2
3
11
12
I
4pcs
Q
2pcs
R
4pcs
S
8pcs
I
I
I
I
Q
Q
B

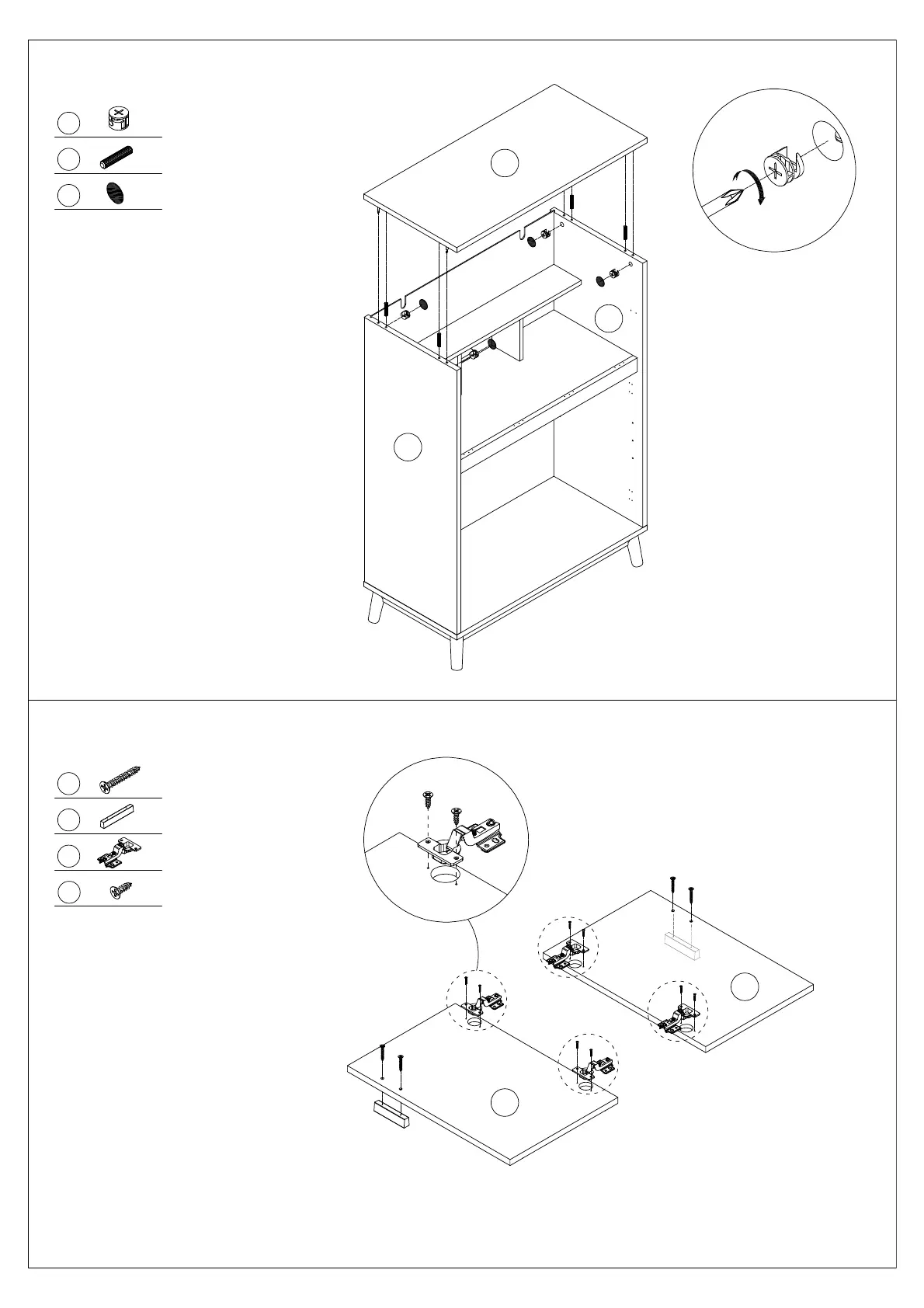

Attach board 1 to
board 2 and board 3
with wooden dowel(C),
put cam(B) into board
2 and board 3 then
turn clockwise to
tighten,stick the cam
holes with sticker(T)
as shown.
Fix hinge(R) to the
board 11 and board
12 with screw(S)
then fix handle(Q)
to the board 11 and
12 with screw(I) as
shown.
