Owner’s Guide
7
General
1. Flue Exhaust
2. Front Cover
3. Air Inlet
4. Inlet water filter
Inside Water Inlet (See page 21)
5. Gas Supply Valve
6. Water Supply Valve
7. Hot Water Pipe
8. External Weatherproof Power Point
9. (Condensing Model only)
Condensate Drain Pipe
Discharge the condensate.
10. (32END5N, 32END5L, 32END6N, and 32END6L
only)
Status Display
Indicate the status of Water Heater or error codes.
When the gas burner is on.
When the gas burner is on, set
temperature is displayed for one
minute.
When Water Heater is initially
plugged into power, set
temperature is displayed for
approx. thirty seconds.
When hot water flows.
After one minute passed from turn
on hot water, the outside edge of
the two digit display will rotate in a
circular pattern.
If the amount of water is too low,
“L” will be indicated.
If there is a problem with the
Water Heater, a numerical error
code will flash. (See page 24)
On
(e.g. 26ECB5N)

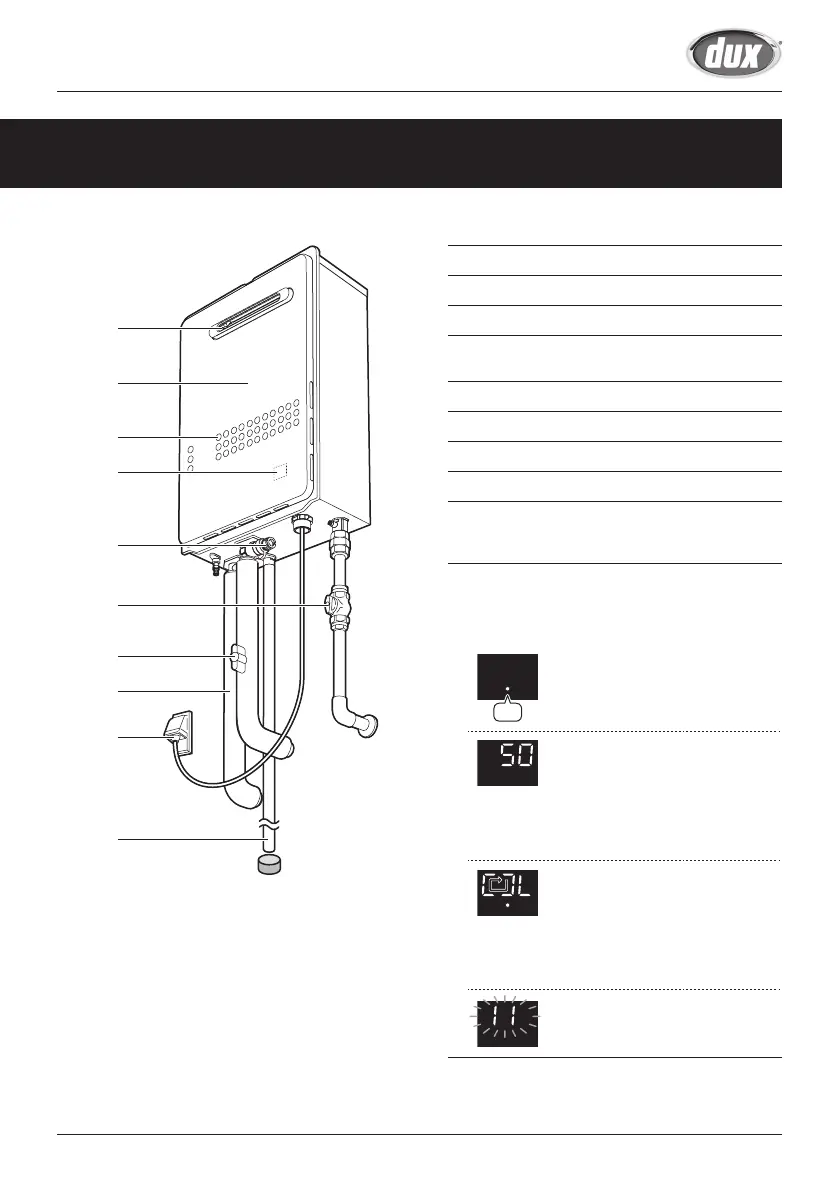

This illustration shows an example of installation.
The exact installation configuration may be slightly
different.
1
2
4
10
5
9
3
6
7
8
