G2030-II-S
Apr ‘19
- 29

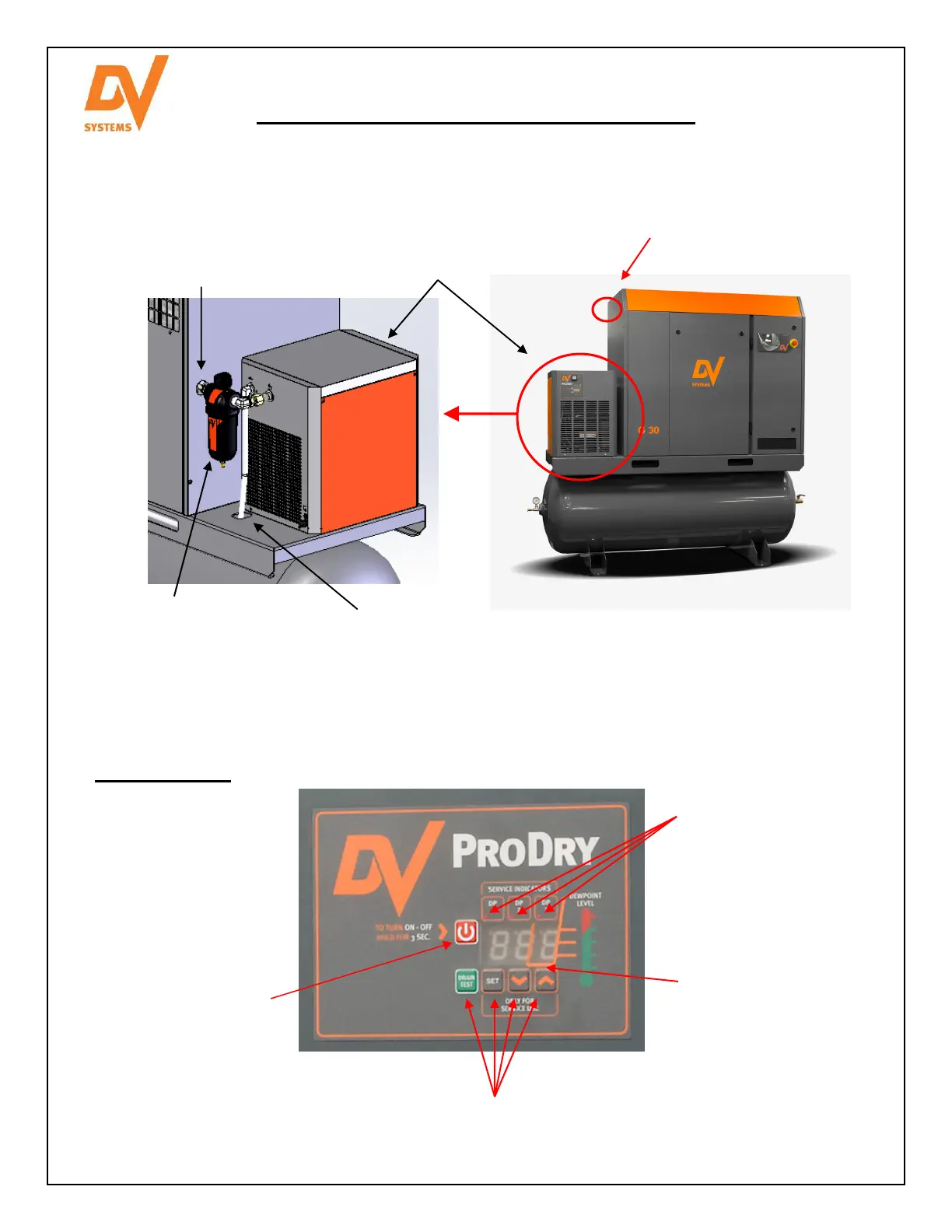

Separator Filter and Refrigerated Air Dryer
Your Unit may be equipped with a Separator Filter and an ‘ASD Series’ Refrigerated Air Dryer Unit as indicated
below. These items are located in the compressed air lines after the air is compressed but before it enters the Air
Receiver. This allows for what is termed a ‘dry’ Tank.
*Drains will discharge automatically under pressure. It is recommended that pneumatic drain tubes be anchored
and filtered as per your local municipality regulations.
More detailed information concerning the Dryer Unit is included in the Dryer manual. The information contained in
this manual is a ‘quick reference’ only.
Dryer Controls.
On/Off
Button
LED’s for
Compressor,
Drain, and Fan
Test/Programming
Buttons
Readout
To Air
Receiver
From Air
End
Separator
Filter
Unit Model and
Serial Numbers
Refrigerated
Air Dryer
To Next Page
