G2030-II-S

Apr ‘19

- 31

Separator Filter and Refrigerated Air Dryer (cont’d)

As previously noted, the Separator Filter is located between the Air End and the Refrigerated Dryer. It contains a

1 micron Separator Element which protects the Dryer Unit by removing liquids and solid particles 1 micron and

larger.

To replace a dirty Filter Element:

• Shut the Compressor Unit off.

• Bleed any compressed air from the system to ensure there is no pressure at the Filter.

• Unscrew the Bowl from the assembly and remove the filter element.

• Clean any debris from the inside of the Bowl

• Remove the O-ring from the inside of the Canister Head

• Install the new O-ring making sure it is properly seated

• Place the new 1 micron Separator Filter Element into the Bowl (the filter is self-centring).

• Screw the Canister with the Element inside it to the Canister Head until the indicators line up.

• Gauge will return to green when Filter is once again under pressure.

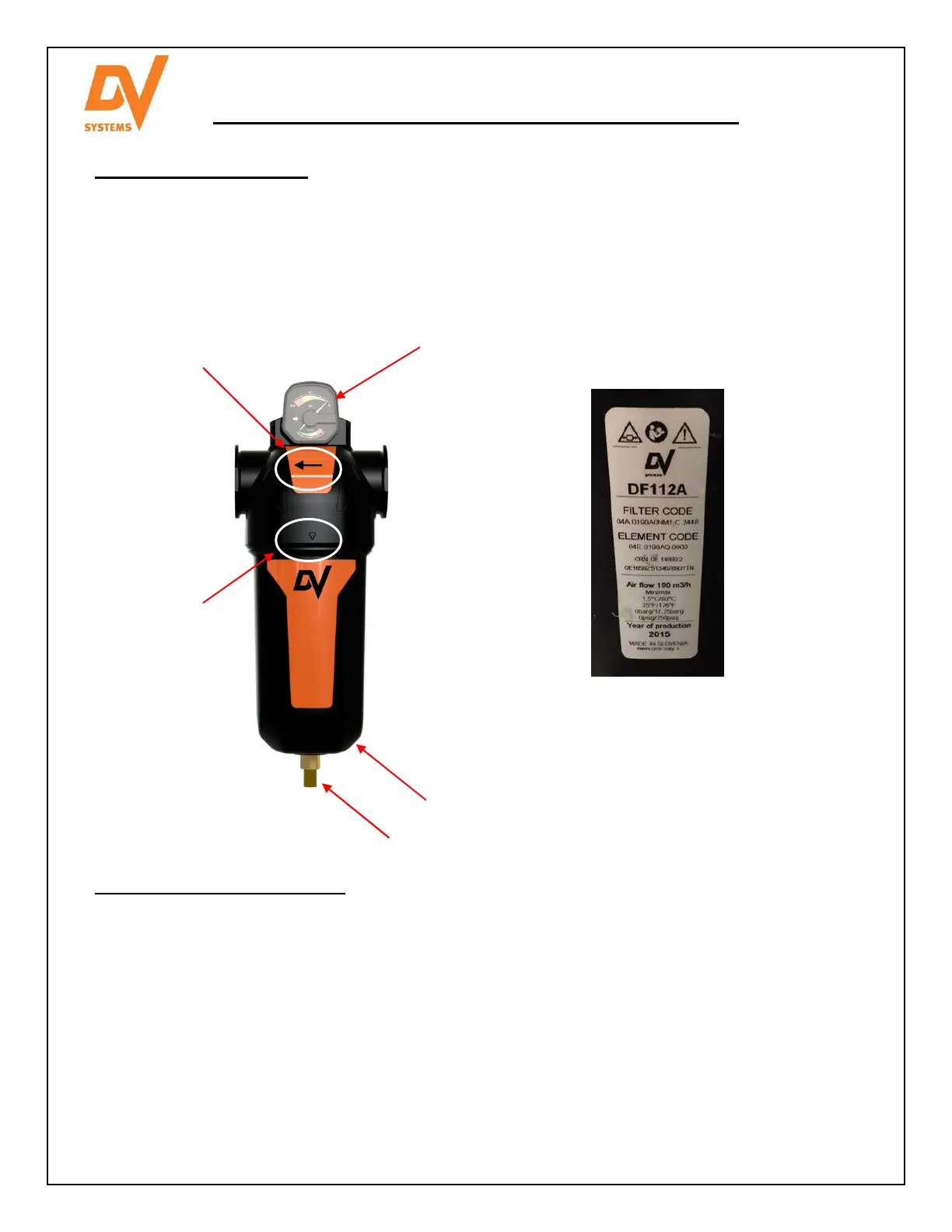

Typical Separator Filter.

Arrow Indicates

Direction of Air Flow

Dual Indicating Gauge (DF002)

Arrow pointing to Green = Filter Element is Clean

Arrow pointing to Red = Filter Element is Dirty

Float Drain (DF003)

Bowl which Contains Filter Element (DF112A)

The label shown above is included with a

replacement Filter Element, and should be

affixed to the outside of the Bowl for future

reference.

Filter Element Replacement.

Alignment

Indicators:

triangles on

canister and

head will align &

prevent further

tightening when

canister is

secured to the

head
