DVC DigitEyes Series - Digital Video Output; Analog Video Output; Electrical; Mechanical

3
2.2 DIGITAL VIDEO OUTPUT
Digital Video Output (14.31818 Mbytes/sec) Ten or Eight bit parallel differential (RS-422)
Gamma 1.0 (linear)
AGC None
2.3 ANALOG VIDEO OUTPUT
RS-170 Composite Video : 1Vp-p; 75Ω
Resolution: 565 TVL (H); 350 TVL (V)
Gamma (set at the factory) 0.45 (standard); 0.6 (optional); 1.0 (optional)
AGC (set at the factory) None (standard); 30 dB (optional)
Signal to Noise Ratio (no AGC, Gamma = 1)
≥ 62 dB (See VM-700 plots; Appendix E)
2.4 ELECTRICAL
Timing RS-170, 2:1 Interlaced
Power Supply Voltages &
Current requirements
± 12 V DC each @ 250 mA steady state
+ 5 V DC @ 250 mA steady state.
Clock Rate 14.31818 MHz
Synchronization Internal crystal @ 14.31818 MHz
Genlock (Optional) Reverts to crystal lock w/o External Sync.
2.5 MECHANICAL
Weight (without lens) 1 lb. (approx.)
Temperature limits (operating)
-10°C to 50°C
Temperature limits (storage)
-30°C to 70°C
Dimensions 4¾" X 3¾" X 2½"
Lens mount Industry standard C- mount
Camera mount ¼ - 20 threaded hole
Digital Video Connector DB-37, female connector (See Appendix A)
Power Supply Connector 5 pin DIN connector (see Appendix A)
Analog Video Connector BNC female connector

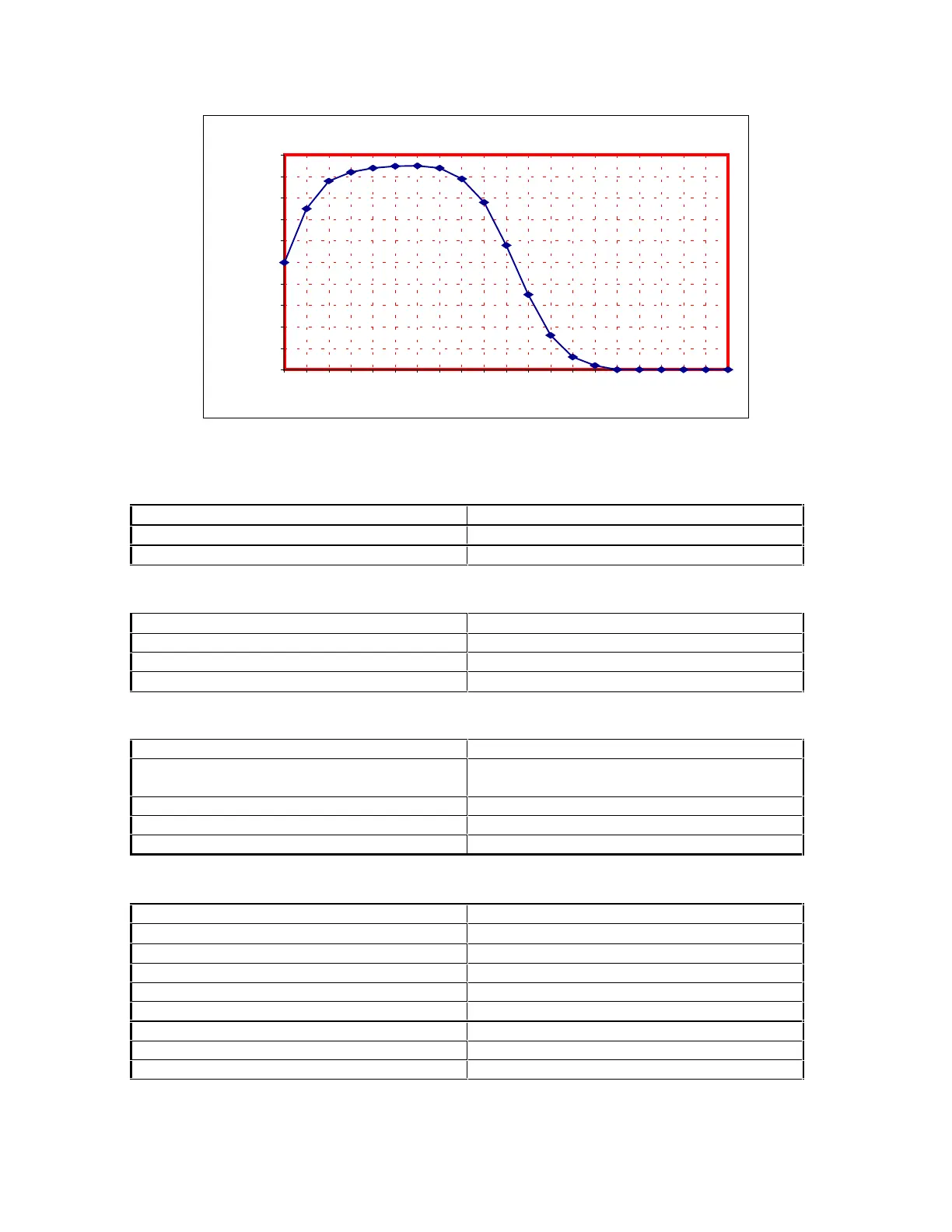

IR Filter Specifications
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
350 400 450 500 550 600 650 700 750 800 850
Wavelength (nm)
Transmission (%)
Figure 2-3: IR Filter Characteristics
