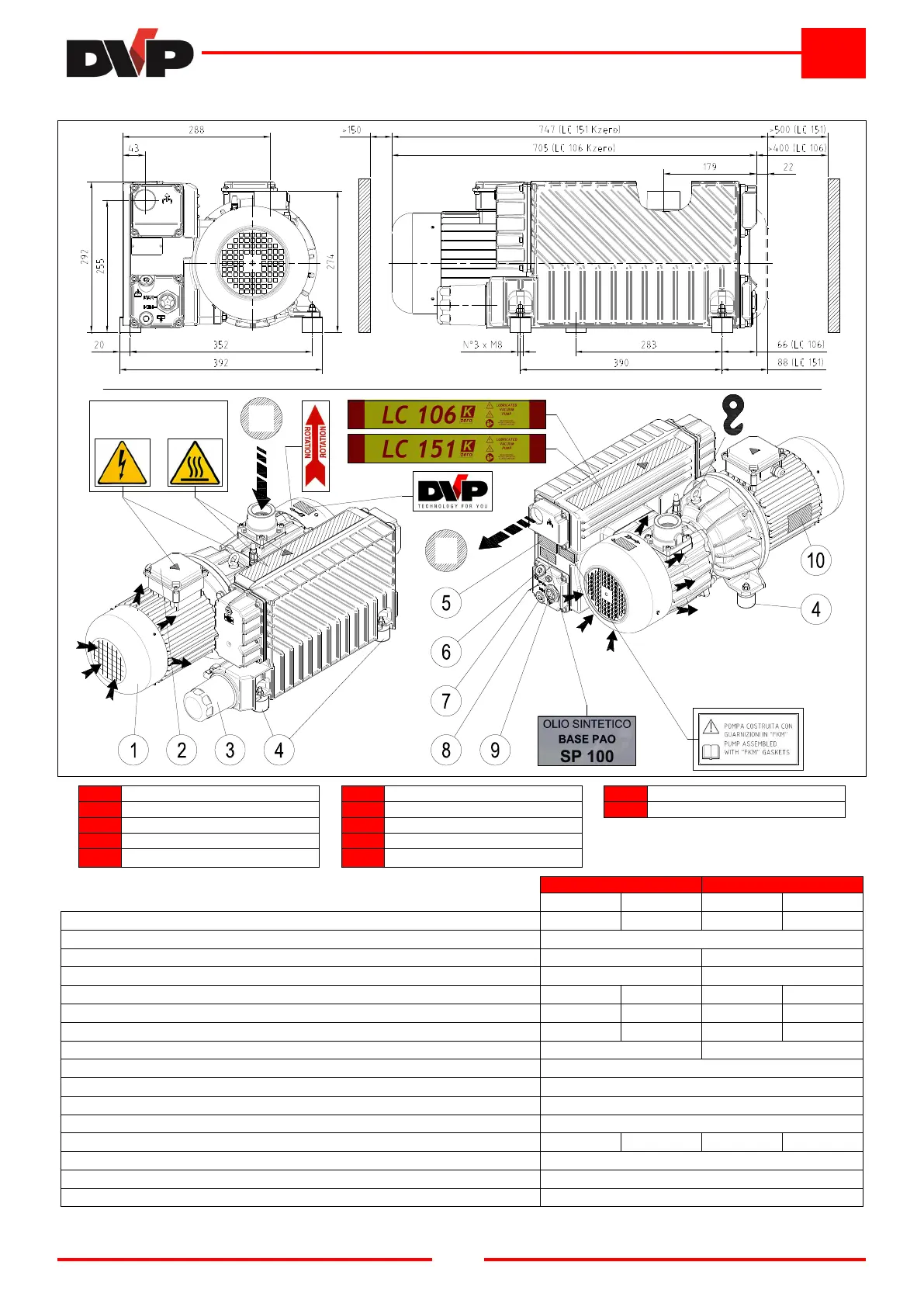

3.4.4 Model: LC 106 Kzero – LC 151 Kzero
A
B

A
Intake
4
Attachment point
9
Oil sight glass
B
Air outlet
5
Information plate
10
Motor rating plate
1
Motor fun guard
6
Oil filler plug
2
Terminal board
7
Level switch (optional)
3
Oil filter
8
Oil drain plug
TECHNICAL SPECIFICATIONS
LC 106 Kzero LC 151 Kzero
50 Hz 60 Hz 50 Hz 60 Hz
Inlet capacity m³/h 106 127 151 181
Final pressure (Abs.) mbar - hPa 4
Max inlet pressure for water vapour mbar - hPa 11 11
Max water vapour pumping rate Kg/h 1,0 1,4
Motor power (IE2)
kW (3~)
2,2 2,7 3,3 3,7
Nominal r.p.m. n/min 1400 1700 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 67 69 69 71
Weight
kg (3~)
70,5 80,0
Type of oil cod. DVP PAO SP100
Oil quantity Min÷Max dm³ 2,0 ÷ 3,0
Pump Intake / Outlet “G 1-1/2 / 1-1/4
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 4
Operating temperature (room temp. 20°C @ 100 mbar (Abs.)) °C 95 ÷ 100 100 ÷ 105 100 ÷ 105 110 ÷ 115
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m s.l.m. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
(**) IE2 efficiency motor.
