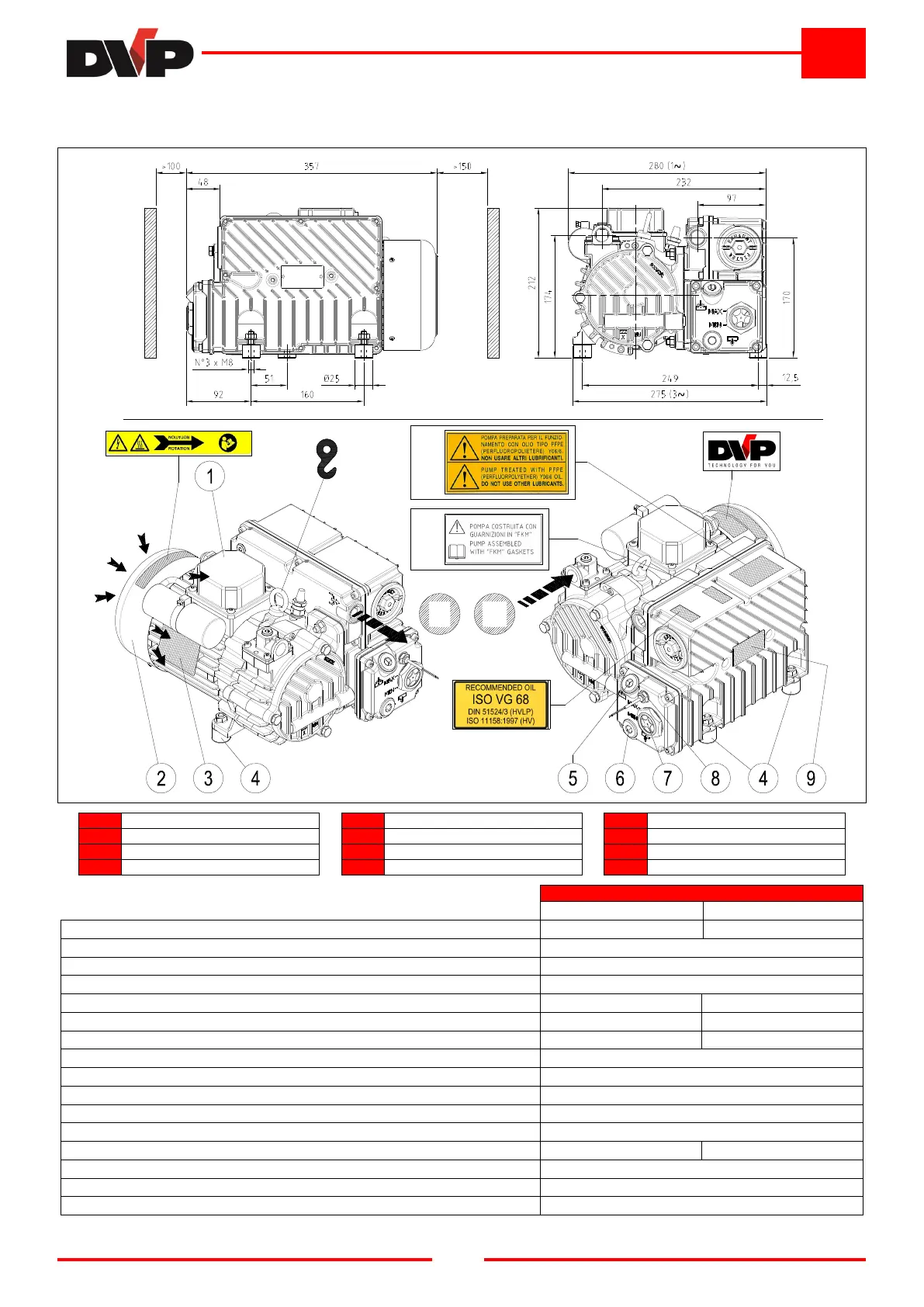

3.4 DIMENSIONS AND CHARACTERISTICS
3.4.1 Model: LC 25
B A


A
Intake
3
Motor rating plate
7
Oil sight glass
B
Air outlet
4
Attachment point
8
Level switch (optional)
1
Terminal board
5
Oil filler plug
9
Information plate
2
Motor fun guard
6
Oil drain plug

Only present on special versions
TECHNICAL SPECIFICATIONS
LC 25
50 Hz 60 Hz
Inlet capacity m³/h 25 29
Final pressure (Abs.) mbar - hPa 0,5
Max inlet pressure for water vapour mbar - hPa 40
Max water vapour pumping rate Kg/h 0,7
Motor power
kW (1~ / 3~)
0,75 / 0,75 0,90 / 0,90
Nominal r.p.m. n/min 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 57 59
Weight
kg (1~ / 3~)
26,0 / 25,0
Type of oil cod. DVP BV68 (SW60)
Oil quantity Min÷Max dm³ 0,7 ÷ 1
Pump Intake / Outlet “G 1/2 / 1/2
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 0,5
Operating temperature (room temp. 20°C) °C 80 ÷ 85 85 ÷ 90
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m s.l.m. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
