DVP LC 25 - Model: LC 106 - LC 151

Operating and Maintenance Instructions
EN
LC 25 – LC 40 – LC 60 – LC 106 – LC 106 Kzero – LC 151 – LC 151 Kzero – LC 205 – LC 305 – LC 205HV – LC 305HV – RC 50M
8
8702035 – 01/04/2018 – R.10 www.dvp.it

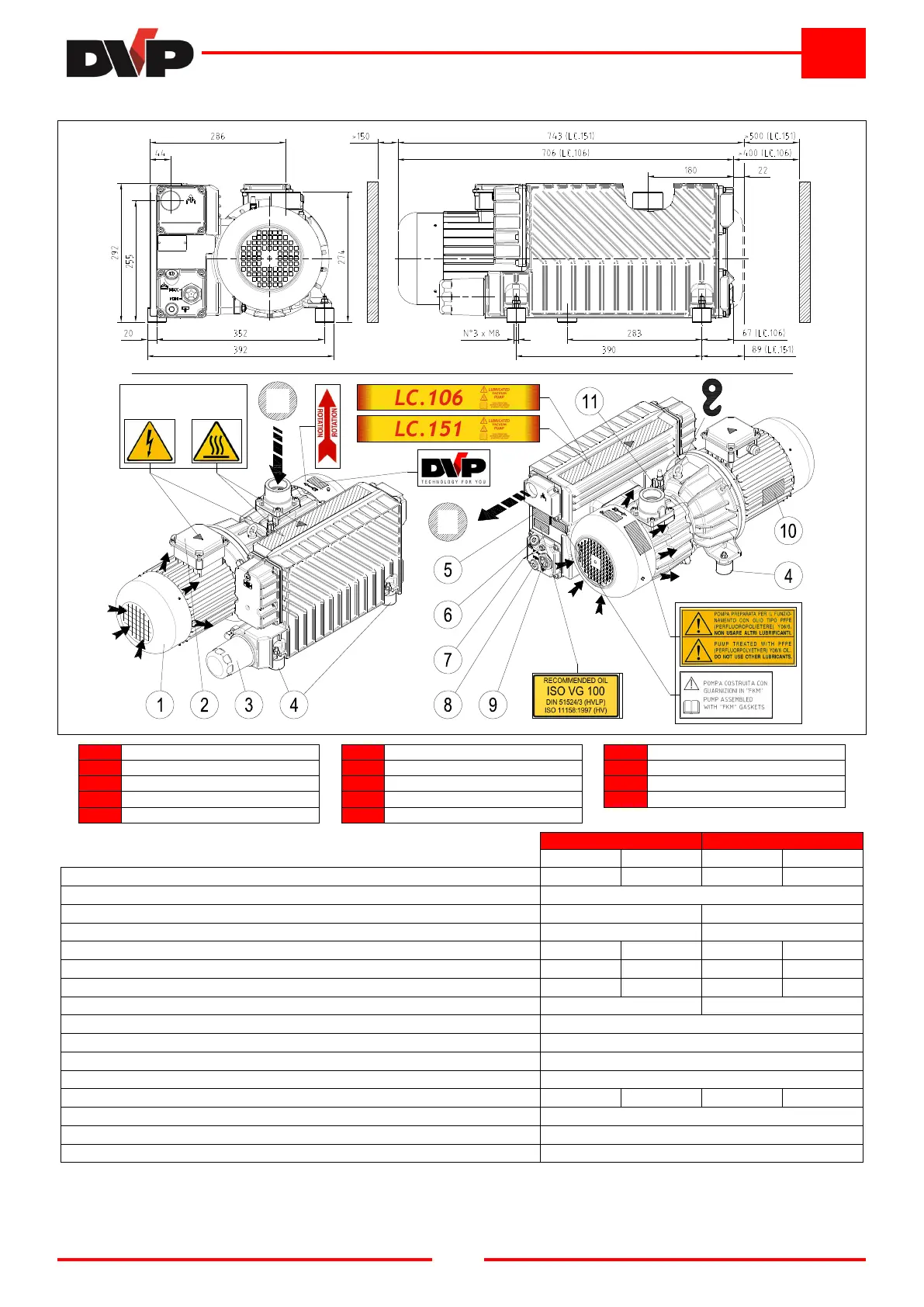

3.4.3 Model: LC 106 – LC 151
A
B


A
Intake
4
Attachment point
9
Oil sight glass
B
Air outlet
5
Information plate
10
Motor rating plate
1
Motor fun guard
6
Oil filler plug
11
Gas Ballast ON/OFF
2
Terminal board
7
Level switch (optional)

Only present on special versions
3
Oil filter
8
Oil drain plug
TECHNICAL SPECIFICATIONS
LC 106 LC 151
50 Hz 60 Hz 50 Hz 60 Hz
Inlet capacity m³/h 106 127 151 181
Final pressure (Abs.) mbar - hPa 0,1 ***
Max inlet pressure for water vapour mbar - hPa 11 **** 11 ****
Max water vapour pumping rate Kg/h 1,0 **** 1,4 ****
Motor power (IE2)
kW (3~)
2,2 ** 2,7 ** 3,3 ** 3,7 **
Nominal r.p.m. n/min 1400 1700 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 66 68 68 70
Weight
kg (3~)
70,5 80,0
Type of oil cod. DVP BV100 (SW100)
Oil quantity Min÷Max dm³ 2,0 ÷ 3,0
Pump Intake / Outlet “G 1-1/2 / 1-1/4
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 0,1
Operating temperature (room temp. 20°C) °C 75 ÷ 80 80 ÷ 85 75 ÷ 80 80 ÷ 85
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m s.l.m. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
(**) IE2 efficiency motor.
(***) Final pressure (Abs.) with ballast closed.
(****) Final pressure (Abs.) with open Gas Ballast.
