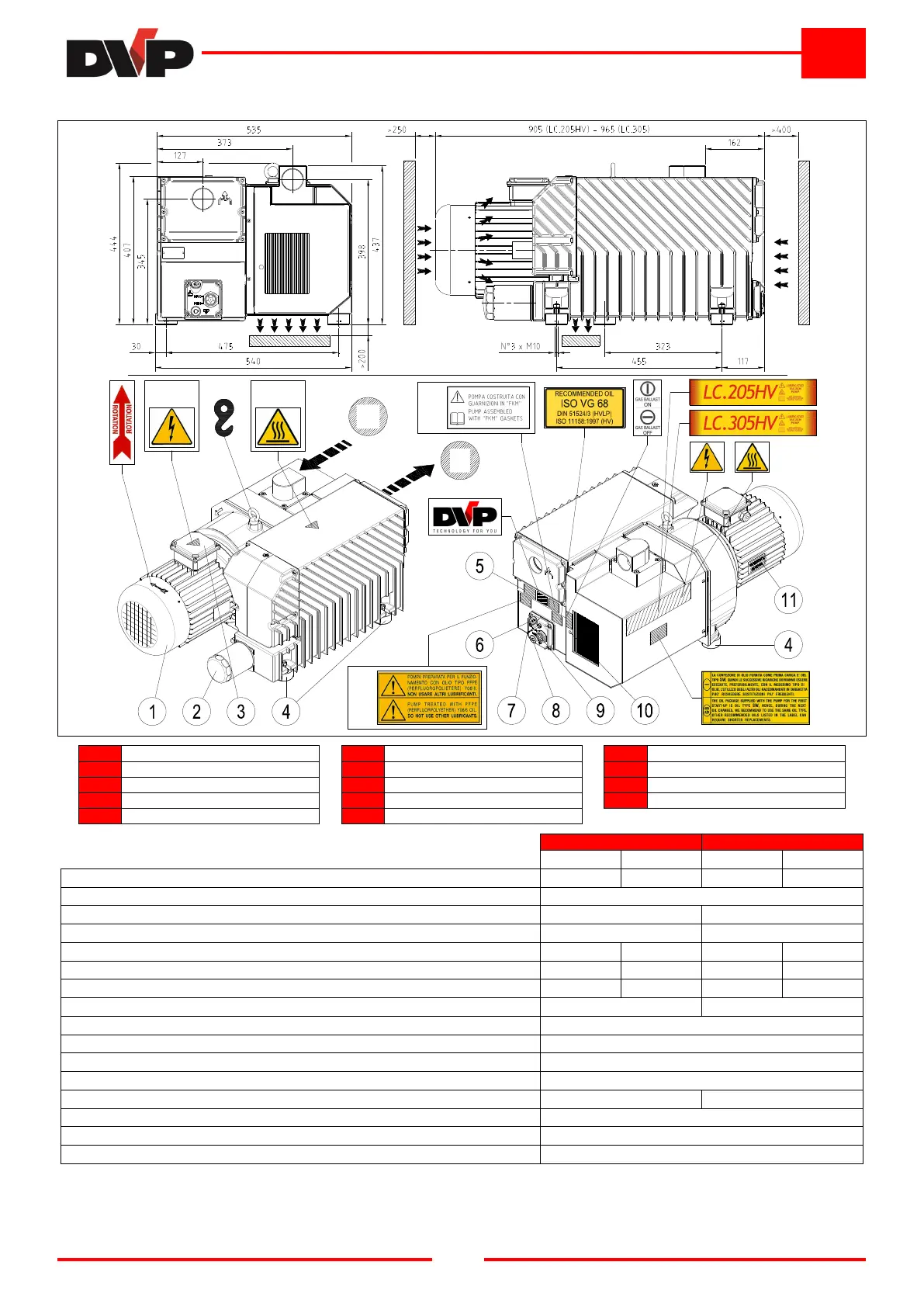

3.4.6 Model: LC 205HV – LC 305HV
B
A




A
Intake
4
Attachment point
9
Oil sight glass
B
Air outlet
5
Information plate
10
Gas Ballast ON/OFF
1
Motor fun guard
6
Oil filler plug
11
Motor rating plate
2
Oil filter
7
Level switch (optional)

Only present on special versions
3
Terminal board
8
Oil drain plug
TECHNICAL SPECIFICATIONS
LC 205HV LC 305HV
50 Hz 60 Hz 50 Hz 60 Hz
Inlet capacity m³/h 205 245 305 365
Final pressure (Abs.) mbar - hPa 0,1 ***
Max inlet pressure for water vapour mbar - hPa 10 **** 12 ****
Max water vapour pumping rate Kg/h 2,1 **** 3,5 ****
Motor power (IE2)
kW (3~)
5,5 ** 6,6 ** 7,5 ** 8,6 **
Nominal r.p.m. n/min 1400 1700 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 71 73 73 75
Weight
kg (3~)
170,0 180,0
Type of oil cod. DVP SW100
Oil quantity Min÷Max dm³ 4,0 ÷ 5,0
Pump Intake / Outlet “G 2 / 2
Continuous-duty working renge (Abs.) mbar - hPa 400 ÷ 0,1
Operating temperature (room temp. 20°C) °C 70 ÷ 75 75 ÷ 80
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m s.l.m. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
(**) IE2 efficiency motor.
(***) Final pressure (Abs.) with ballast closed.
(****) Final pressure (Abs.) with open Gas Ballast.
