DVP LC 25 - Model: RC 50 M

Operating and Maintenance Instructions
EN
LC 25 – LC 40 – LC 60 – LC 106 – LC 106 Kzero – LC 151 – LC 151 Kzero – LC 205 – LC 305 – LC 205HV – LC 305HV – RC 50M
12
8702035 – 01/04/2018 – R.10 www.dvp.it

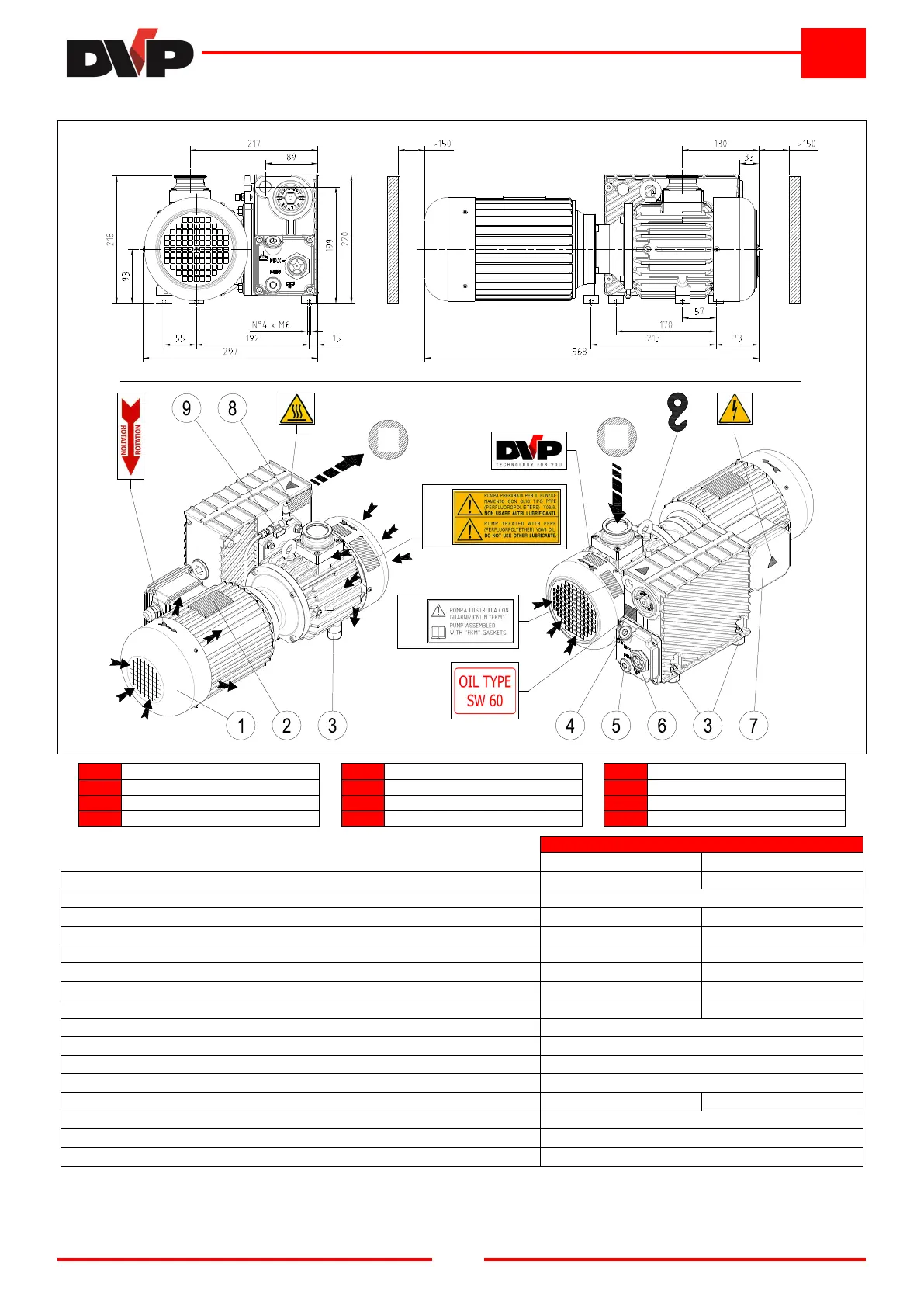

3.4.7 Model: RC 50M
A
B


A
Intake
3
Attachment point
7
Terminal board
B
Air outlet
4
Oil filler plug
8
Information plate
1
Motor fun guard
5
Oil drain plug
9
Gas Ballast ON/OFF
2
Motor rating plate
6
Oil sight glass

Only present on special versions
TECHNICAL SPECIFICATIONS
RC 50M
50 Hz 60 Hz
Inlet capacity m³/h 60 60
Final pressure (Abs.) mbar - hPa 0,05 **** / 0,2 *****
Max inlet pressure for water vapour mbar - hPa 8 ***** 10 *****
Max water vapour pumping rate Kg/h 0,4 ***** 0,5 *****
Motor power (IE2)
kW (3~)
1,1 *** 1,35 **
Nominal r.p.m. n/min 1400 1700
Noise level (UNI EN ISO 2151) (K 3dB) dB(A) 63 66
Weight
kg (3~)
170,0 180,0
Type of oil cod. DVP SW60
Oil quantity Min÷Max dm³ 0,7 ÷ 1
Pump Intake / Outlet DN40 / 1/2"G
Continuous-duty working renge (Abs.) mbar - hPa 100 ÷ 0,05
Operating temperature (room temp. 20°C) °C 55 ÷ 60 60 ÷ 65
Required room temp. for place of installation °C 12 ÷ 40
Ambient temperature for storage/transport °C -20 ÷ 50
MAX humidity / altitude 80% / 1000m s.l.m. *
(*) Please contact the Manufacturer if environmental conditions are different from those prescribed.
(**) IE2 efficiency motor.
(***) IE3 efficiency motor.
(****) Final pressure (Abs.) with ballast closed.
(*****) Final pressure (Abs.) with open Gas Ballast.
