- 11 -
Make sure the Tilt Base and DXE-RADP-3 Radial Plate are oriented correctly for the direction you
wish to tilt the antenna. See Figure 11 which shows the tilt action.
Tighten the V-clamps evenly so the length of the exposed threads is approximately equal. Any
clamp should be tightened evenly from side-to-side with an equal amount of thread above each nut.

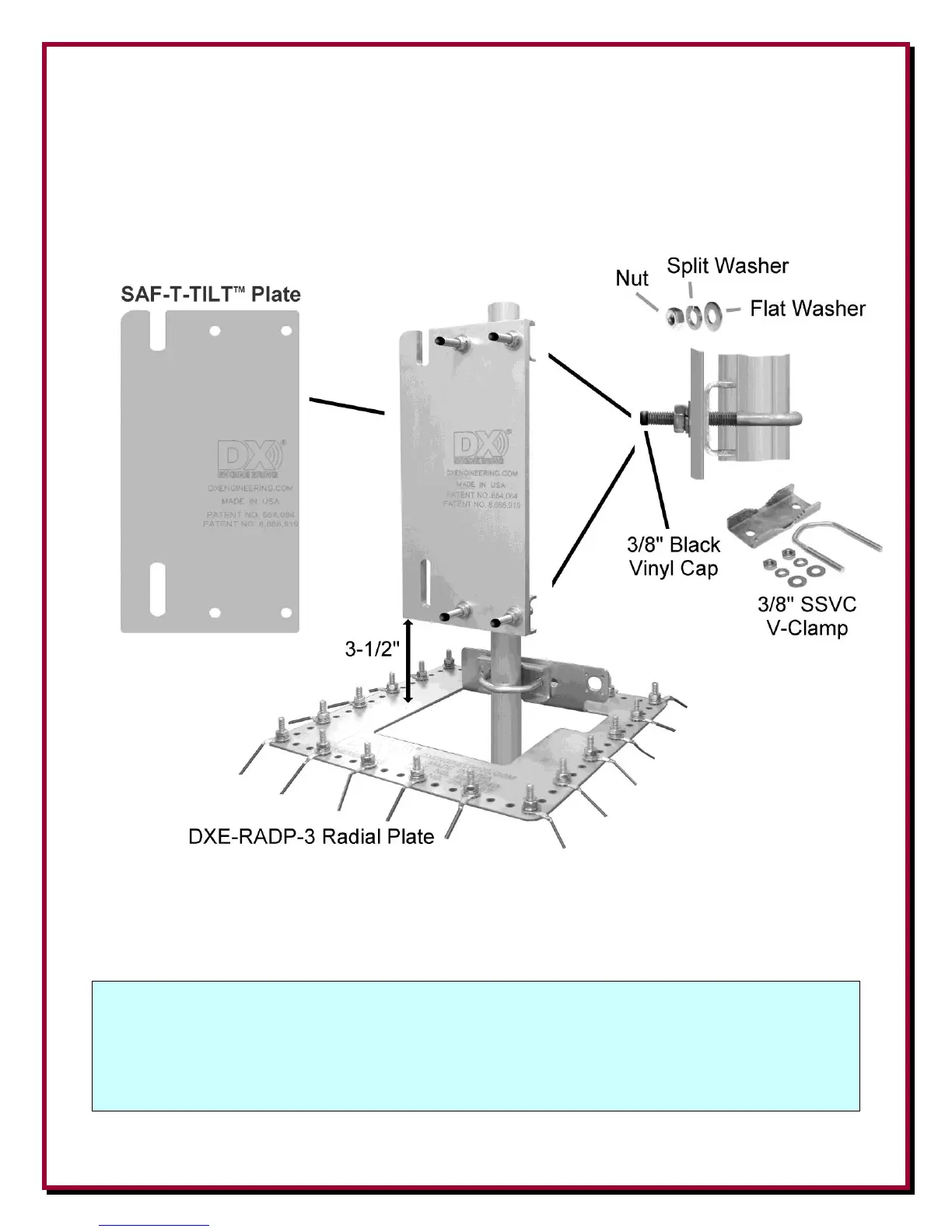

Once tight, place a Black Vinyl Cap on the threaded ends of the V-Clamps as shown in Figure 3.
Figure 3
NOTE: If you are installing the optional DXE-MBV-ATU-1 Multi-Band Vertical Remote
Antenna Tuner Add-on Kit the distance between the bottom of the tilt base and the
radial plate will be 6-1/2”. Please see the note on page 8 and also refer to Appendix
B for additional details.
