DX Engineering DXE-MBVE-5A - Extended Base Tube Exploded View Drawing

- 31 -

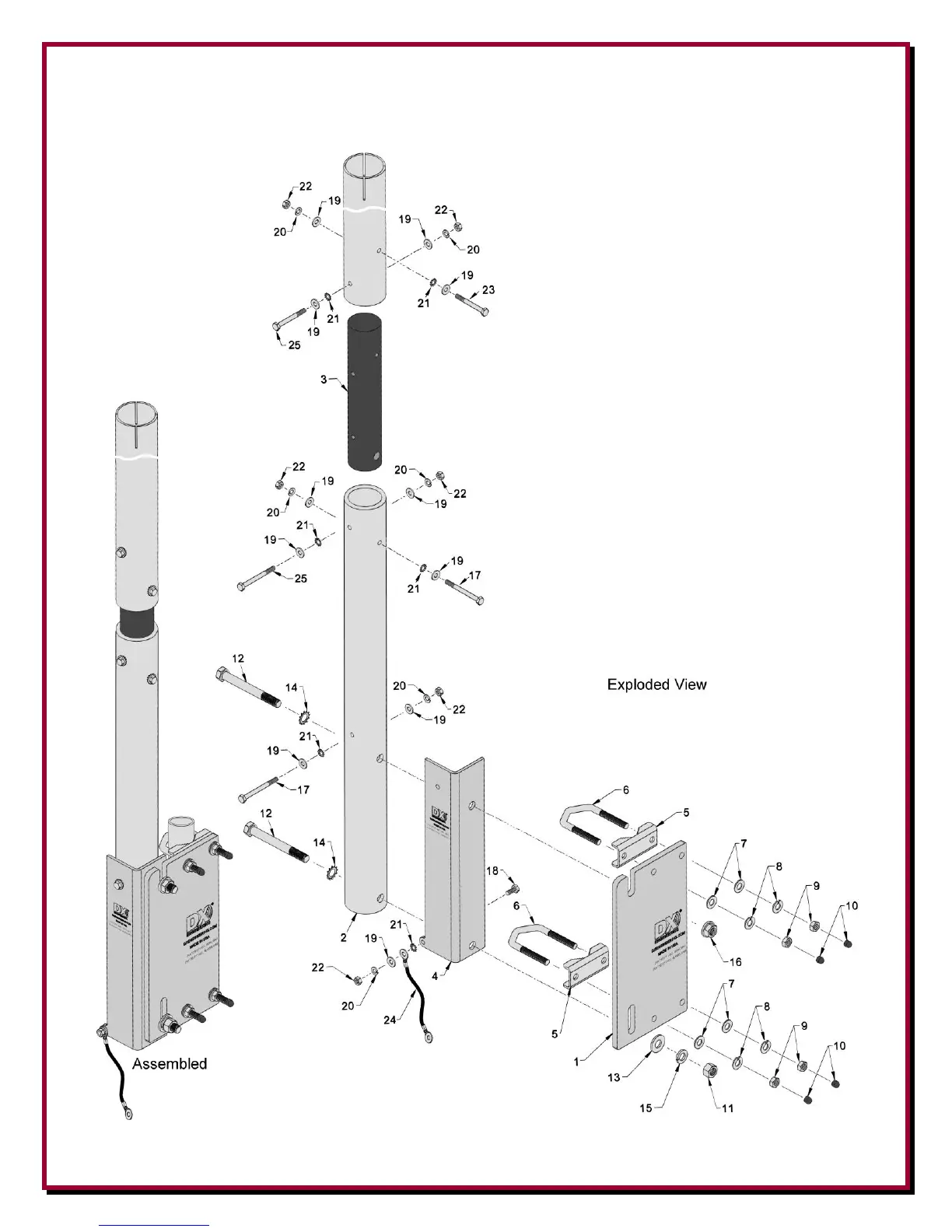

Figure B-1 - Extended Base Tube Drawing
Figure B-1 This drawing shows
the DXE-MBVE-5AE that uses
the extended base tube (Item 2)
and a new drilled insulator (Item
3) with the associated hardware.
Required for using the
MFJ-993BRT, MFJ-994BRT or
MFJ-998RT remote tuners.
