DX Engineering DXE-MBVE-5A - Upgrade Hardware Exploded View Drawing

- 32 -

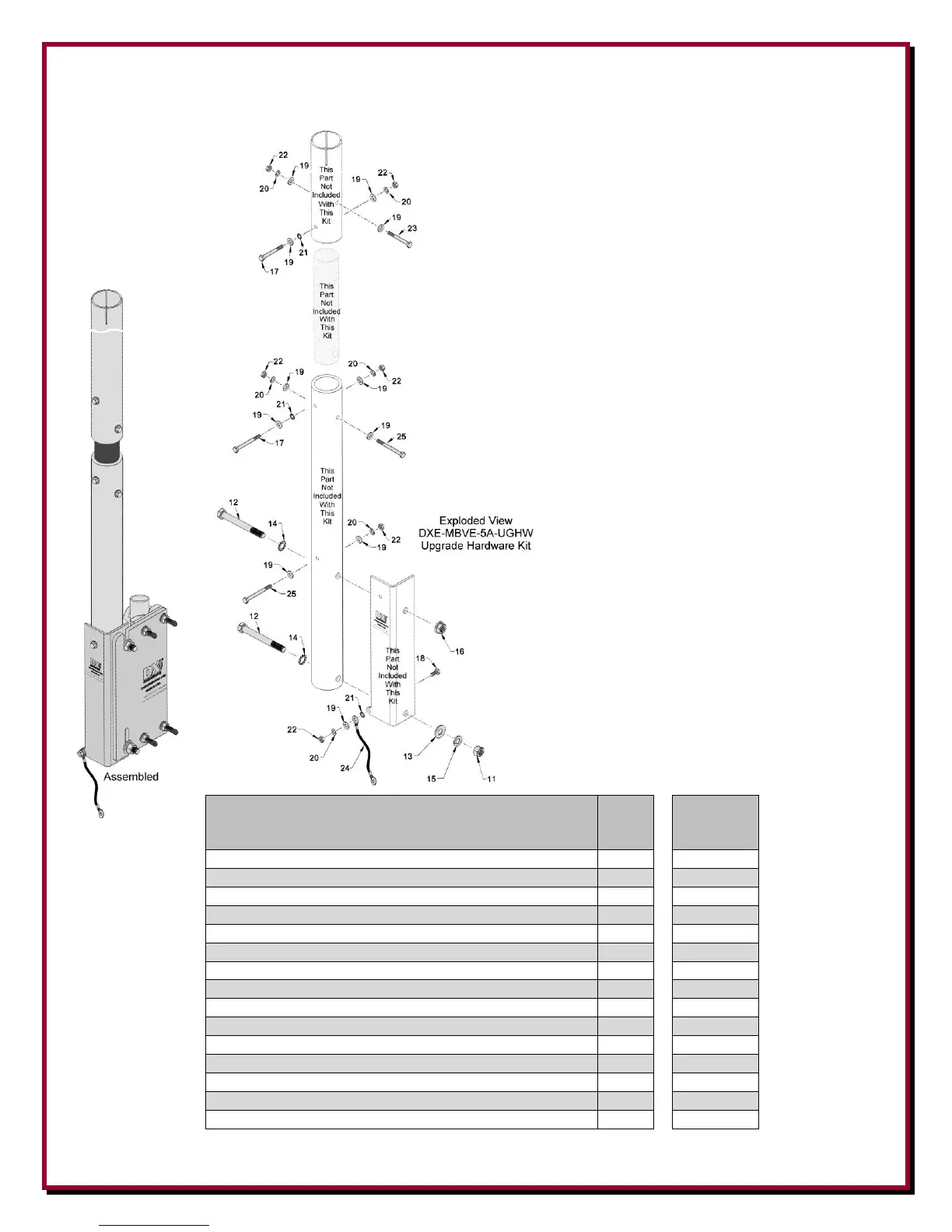

Figure B-2 - Upgrade Hardware for the Extended Base Tube Drawing
Figure B-2 - This
drawing shows the
Upgrade Hardware
Kit that includes the
associated hardware.
For existing systems,
the new hardware is
supplied with the
upgrade kits to make
installation easier.
SAF-T-Tilt™ Base Assembly Upgrade Hardware Kit
DXE-MBVE-5A-UGHW for the extended base tube option
Qty
Drawing
Ref.
Number
1/4”-20 x 3/4” long Hex Head Bolt, Stainless Steel
1
18
1/4”-20 x 2-3/4” long Hex Head Cap Screw, Stainless Steel
1
23
1/4”-20 x 3-1/4” long Hex Head Cap Screw, Stainless Steel
2
17
1/4” Flat Washer, Stainless Steel
11
19
1/4” Split Lock Washer, Stainless Steel
6
20
1/4" External Tooth Washer, Stainless Steel
3
21
1/4”-20 Hex Nut, Stainless Steel
6
22
1/4”-20 x 3” long Hex Head Cap Screw, Stainless Steel
2
25
1/2”-13 Hex Nut, Stainless Steel
1
11
1/2”-13 x 4-1/2” long, Hex Head Bolt, Stainless Steel
2
12
1/2” Flat Washer, Stainless Steel, Thick
1
13
1/2” External Tooth Washer, Stainless Steel
2
14
1/2” Split Lock Washer, Stainless Steel
1
15
1/2”-13 Flanged Nut, Stainless Steel
1
16
7” Wire, 14 ga PVC insulated, two 1/4” Ring Terminals
1
24
