DXE-MBVE-5A SAF-T-TILT™ Antenna Base Section Assembly

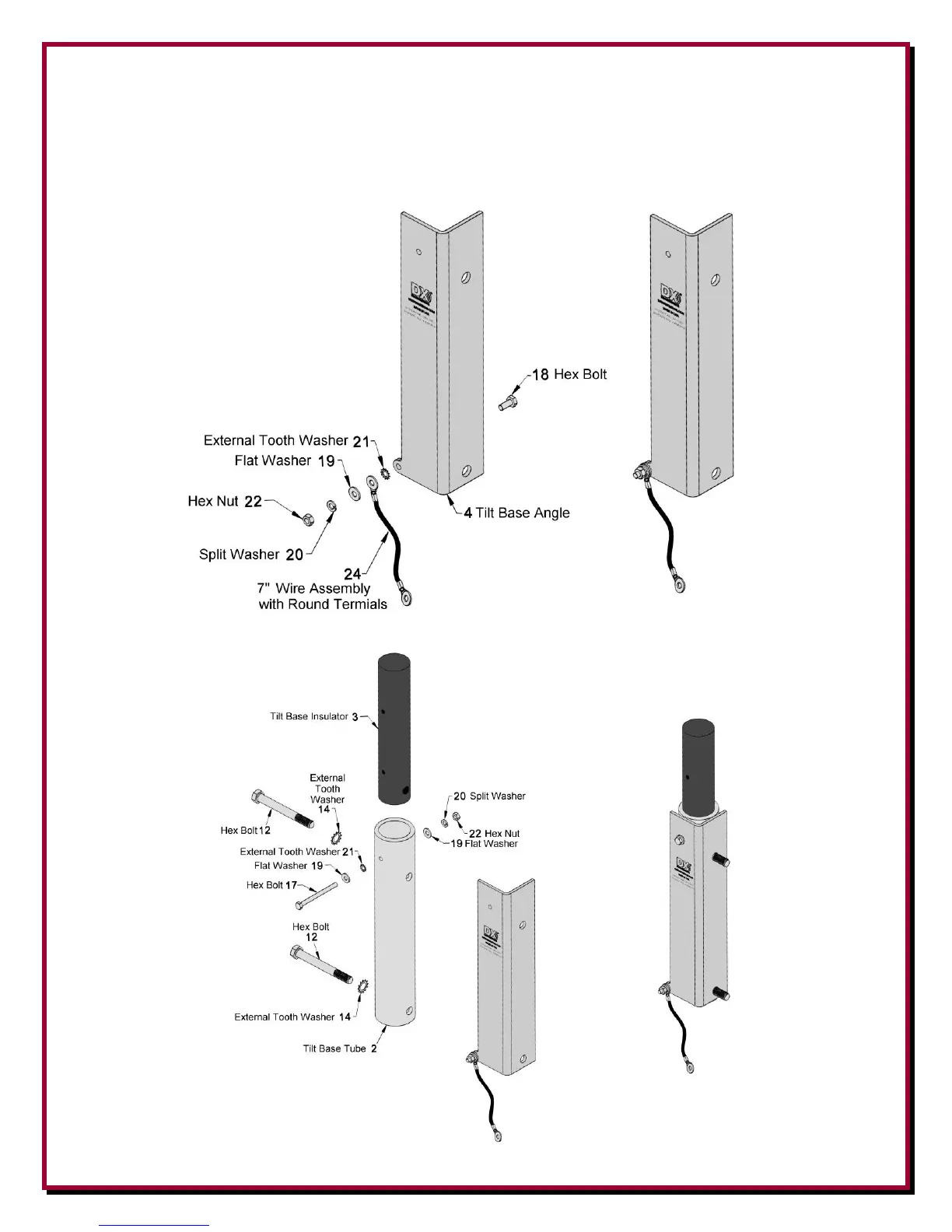

Attach the 7” ground wire with ring terminals to the tilt base angle plate using the hardware as
shown in Figure 4. Refer to pages 26 & 27 for description of numbered parts.
Figure 4
Attach the tilt base tube to the tilt base angle using the hardware as shown in Figure 5.
Figure 5
NOTE: Remote
Tuner models use a
longer Tube #2 and different
Insulator #3 as shown later in this manual.
