- 22 -

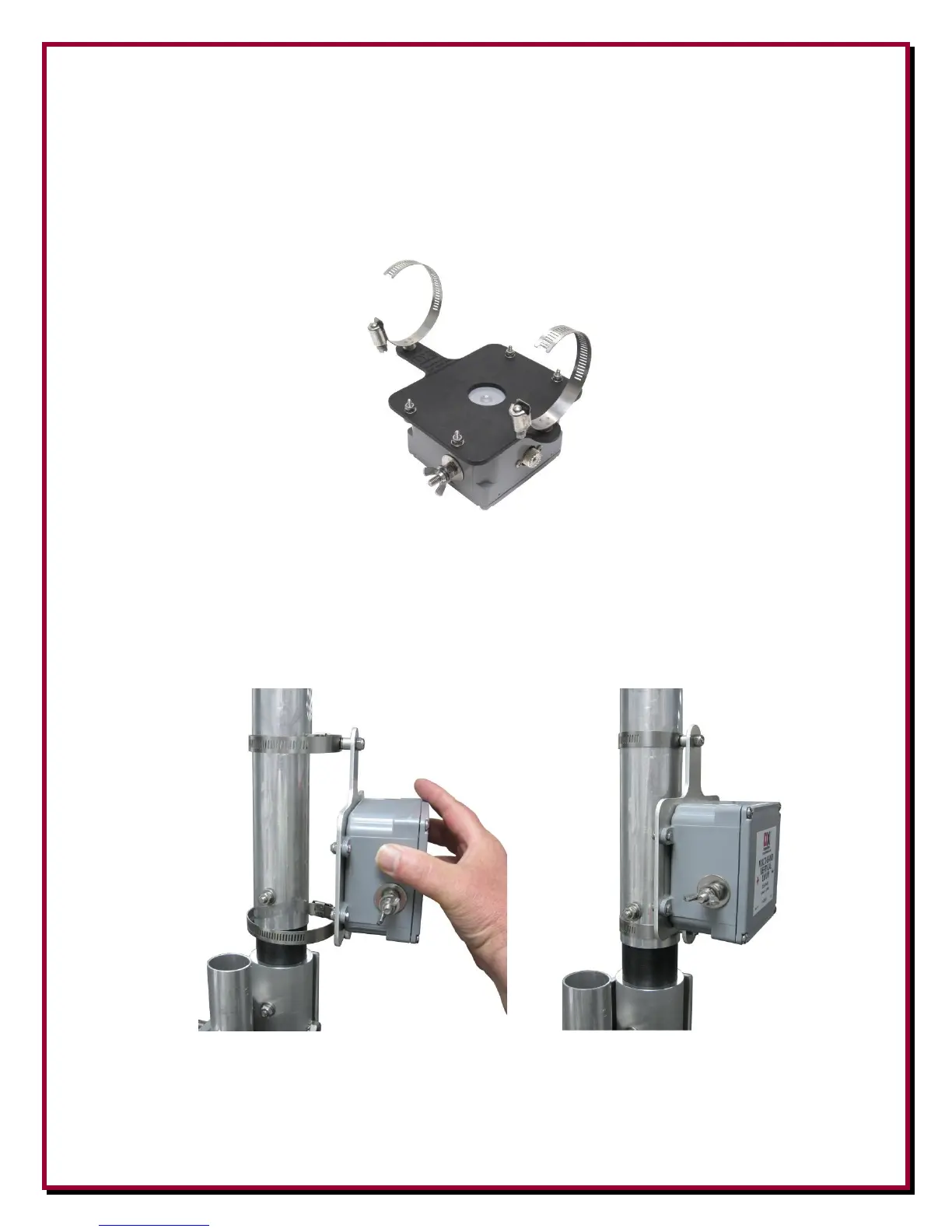

Installation of UNUN Assembly to Antenna Lower Section
The completed UNUN and UNUN Mounting Bracket assembly are mounted to the antenna lower
section. To allow easy installation of the UNUN Bracket to the lower base section, open the upper
and lower custom studded element clamps as shown in Figure 16.
Figure 16
Position the UNUN and mounting bracket so the bottom element clamp is located between the
feedpoint hardware and the black insulator shown in Figure 17. Tighten the element clamps to hold
the assembly in place. Also tighten the Nyloc nuts that hold the studded element clamps to the
UNUN bracket.
Figure 17
Clamps open, Clamp Ends inserted to go around the antenna element
Tighten in place with UNUN facing outward
