DXE-MBVE-5A SAF-T-TILT™ Base Section

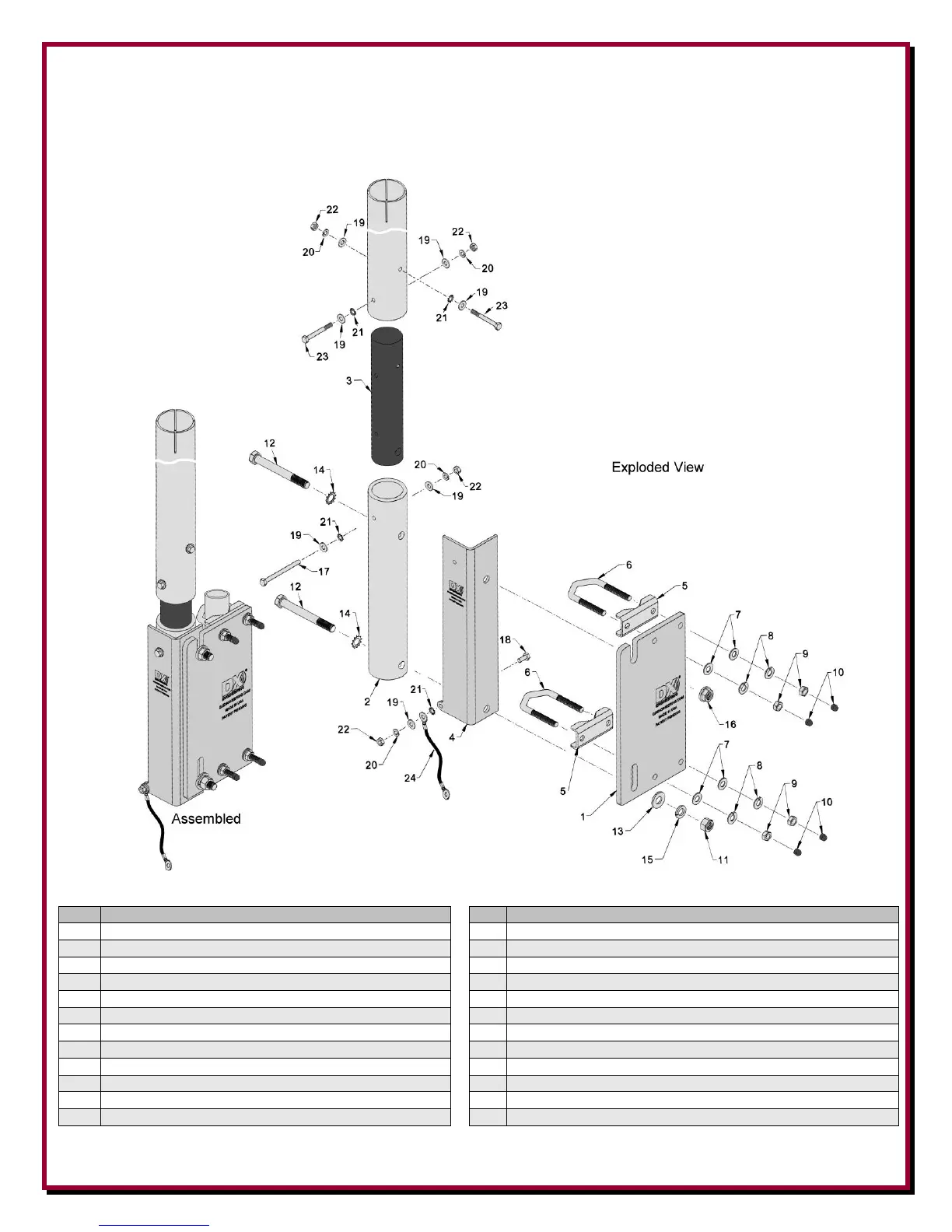

For reference purposes Figure 21 shows an exploded view of the DXE-MBVE-5A Base Section
(US Patent Nos. 654,064 AND 8,686,919)
Figure 21
#
Item Description
#
Item Description
1
Tilt Base Plate - 12” x 6” x 3/8” thick
13
1/2” Stainless Steel Flat Washer, Thick
2
Tilt Plate Tube - 2.5” OD x 14” x 1/4” thick, drilled
14
1/2” Stainless Steel External Tooth Washer
3
Tilt Base Insulator - 2” OD x 10”, drilled
15
1/2” Stainless Steel Split Lock Washer
4
Tilt Base Angle Bracket - laser cut and drilled
16
1/2”-13 Stainless Steel Flanged Nut
5
Stainless Steel Saddle for 3/8” V-Bolt
17
1/4”-20 x 3-1/4” long Stainless Steel Hex Head Cap Screw
6
3/8” Stainless Steel V-Bolt
18
1/4”-20 x 3/4” long Stainless Steel Hex Head Bolt
7
3/8” Stainless Steel Flat Washer
19
1/4” Stainless Steel Flat Washer
8
3/8” Stainless Steel Split Lock Washer
20
1/4” Stainless Steel Split Lock Washer
9
3/8”-16 Stainless Steel Hex Nut
21
1/4" Stainless Steel External Tooth Washer
10
3/8” Black Vinyl Tube Caps
22
1/4”-20 Stainless Steel Hex Nut
11
1/2” Stainless Steel Hex Nut
23
1/4”-20 x 2-3/4” long Stainless Steel Hex Head Cap Screw
12
1/2”-13 x 4-1/2” long Stainless Steel Hex Head Bolt
24
7” 14 ga PVC insulated wire with two 1/4 Round Terminals
