- 19 -
While holding the base at approximately a 90 degree angle, slide the bottom 2-1/8” OD element
section onto the black insulator, aligning up the two holes in the 2” OD aluminum tube with the two
holes in the black insulator as shown in Figure 13.

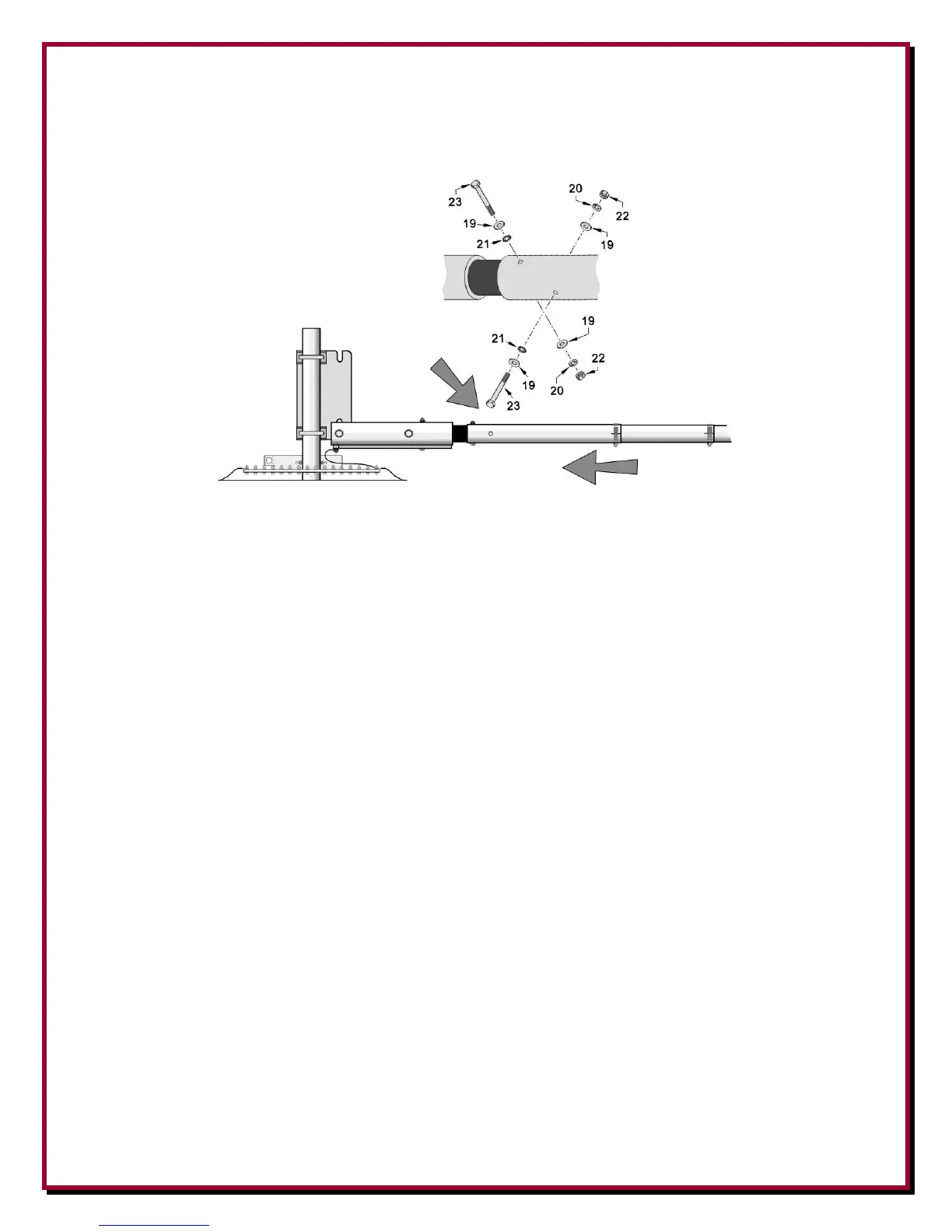

Figure 13 - Mating the vertical antenna to the SAF-T-TILT™ Base assembly
Once the holes are aligned, install the stainless steel hex bolts with the flat washers, external tooth
washers, split washers and nuts as shown in Figure 13.
