- 29 -

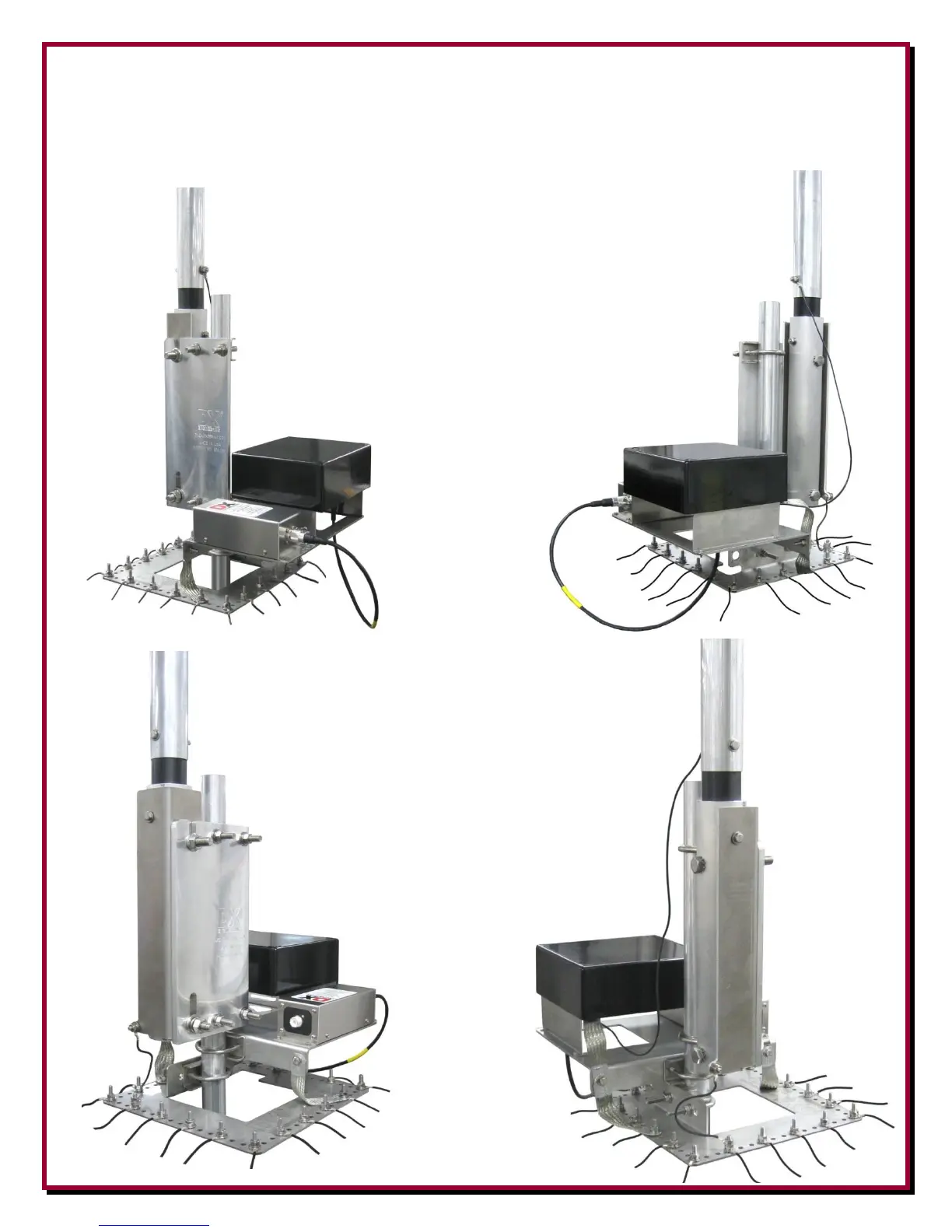

Positioning of the remote tuner shelf in relation to the MBVE-5A and the DXE-RADP-3 Radial
Plate. Pictures shown below show how this is accomplished. Note the Tilt Base is mounted 6-1/2”
above the Radial Plate to allow the extra room needed for this remote tuner package. Please refer to
the DXE-MBV-ATU-1 manual for additional details.
