Dyna-Glo DGP483CSP-D - Hardware Used

ASSEMBLY INSTRUCTIONS
11
M6 Plain Washer
x 2

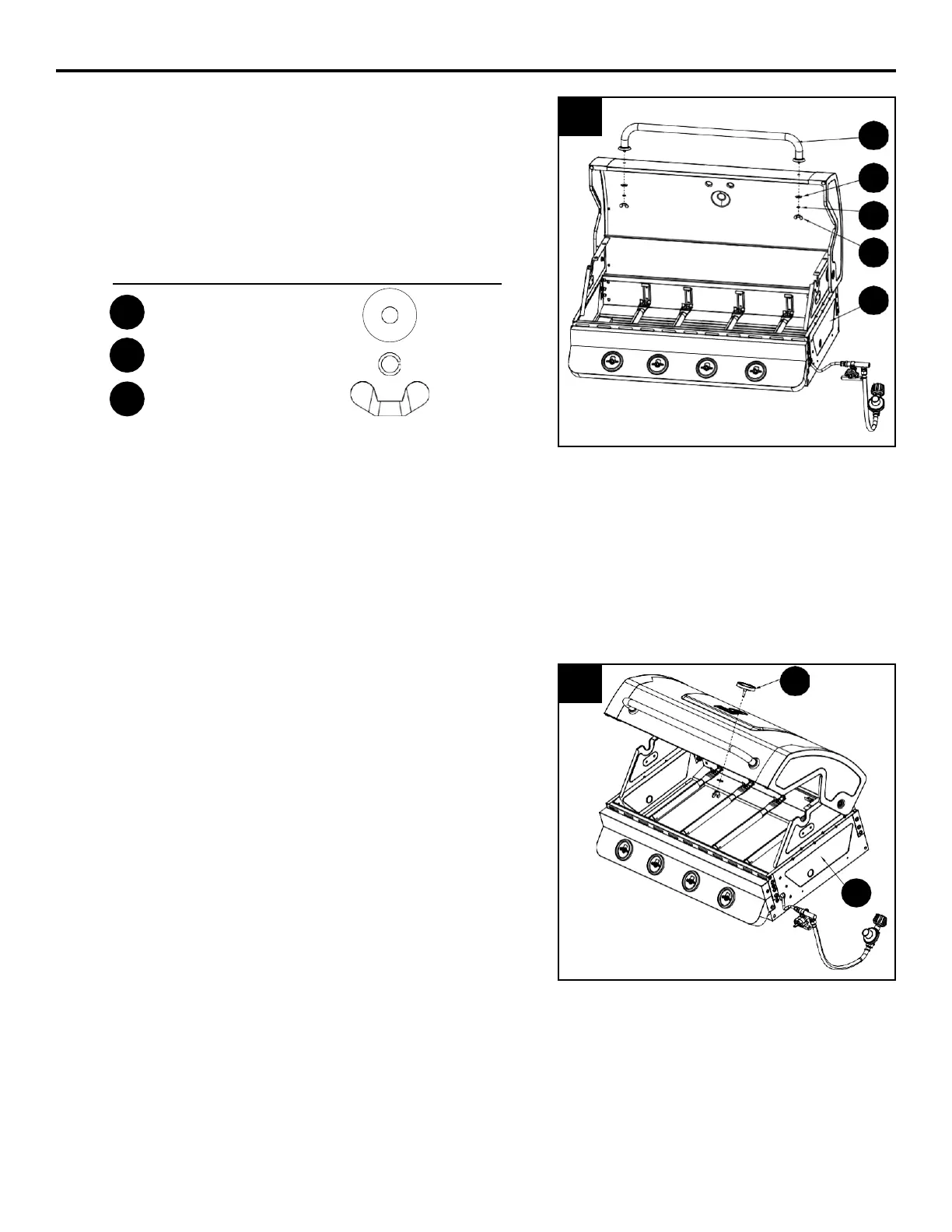

9. Attach the hood handle (A) to the grill body
assembly (C) with two M6 wing nuts (EE), two
M6 spring washers (DD) and two M6 plain
washers (CC).
Hardware Used
M6 Spring Washer x 2
M6 Wingnut x 2
10. Remove pre-assembled wing nut and plain
washer from the temp gauge (B), then attach
the temp gauge (B) to the grill body assembly
(C). Secure the temp gauge (B) with wing nut
and plain washer removed earlier in this step.
CC
DD
EE
9
A
A
C
C
C
C
D
D
D
D
E
E
E
E
C
C
10
B
B
C
