ASSEMBLY INSTRUCTIONS
12

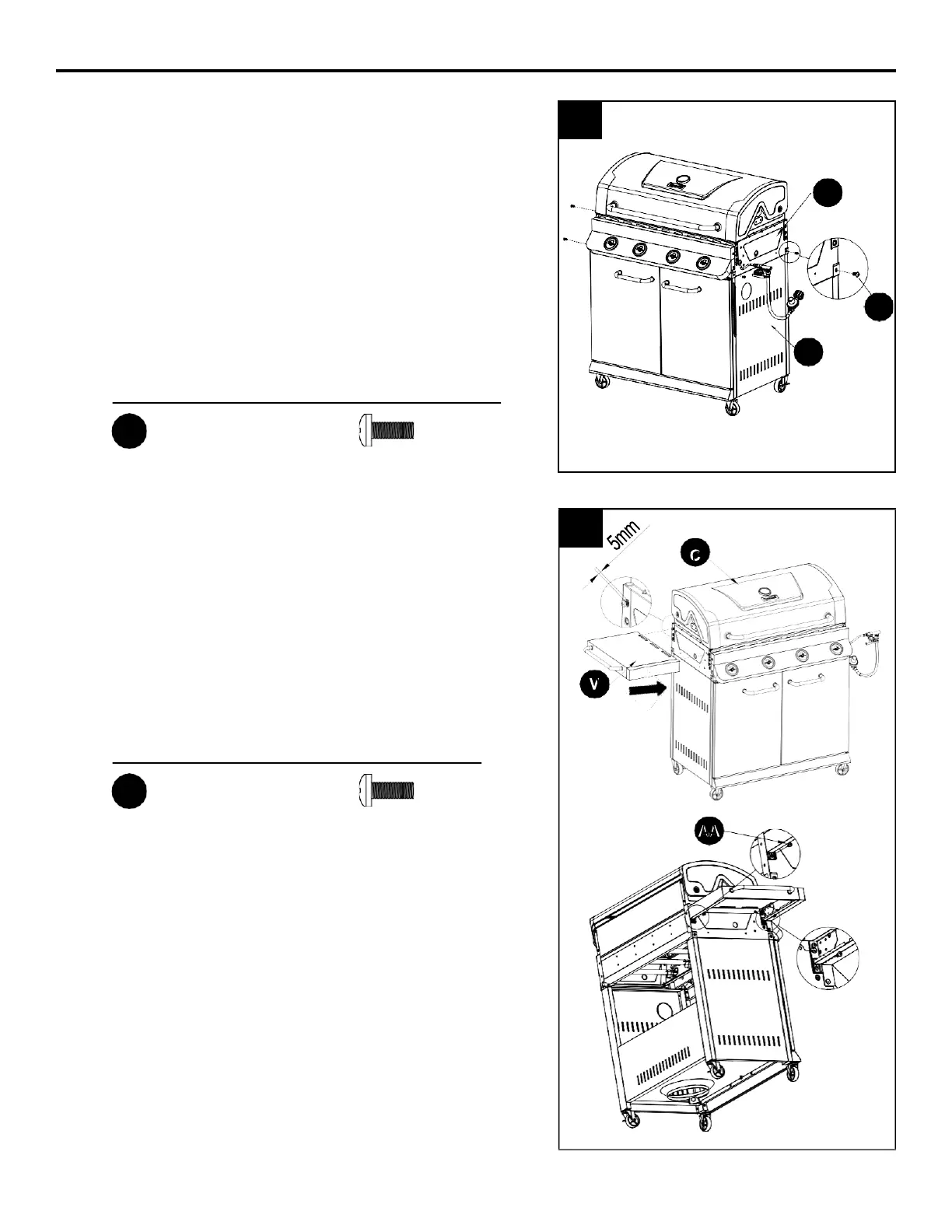

11. Carefully place the grill body (C) onto cart left
side panel assembly (P) and cart right side
panel assembly (L). Adjust the grill body (C) so
that the holes in the grill body (C) are aligned
with holes in the tabs of cart left side panel
assembly (P) and cart right side panel
assembly (L).
Note: Make sure the gas hose/regulator
assembly is outside the cart. Secure the grill
body (C) with four M6X16 bolts (AA).
Hardware Used
M6x16 Bolt
x 4
12. Insert two M6x16 bolts (AA) in left side of grill
body (C) as shown, leaving 5mm of threads
exposed. Align key hole in left side table
assembly (V) with the two bolts just inserted in
the grill body (C), and insert two M6x16 bolts
(AA) in the remaining holes in the grill body
(C). Adjust the left side table assembly (V)
correctly, then tighten all bolts.
Hardware Used
M6x16 Bolt
x 4
12
AA
AA
11
C
C
A A
A
L
L
