ASSEMBLY INSTRUCTIONS
9
A1
P

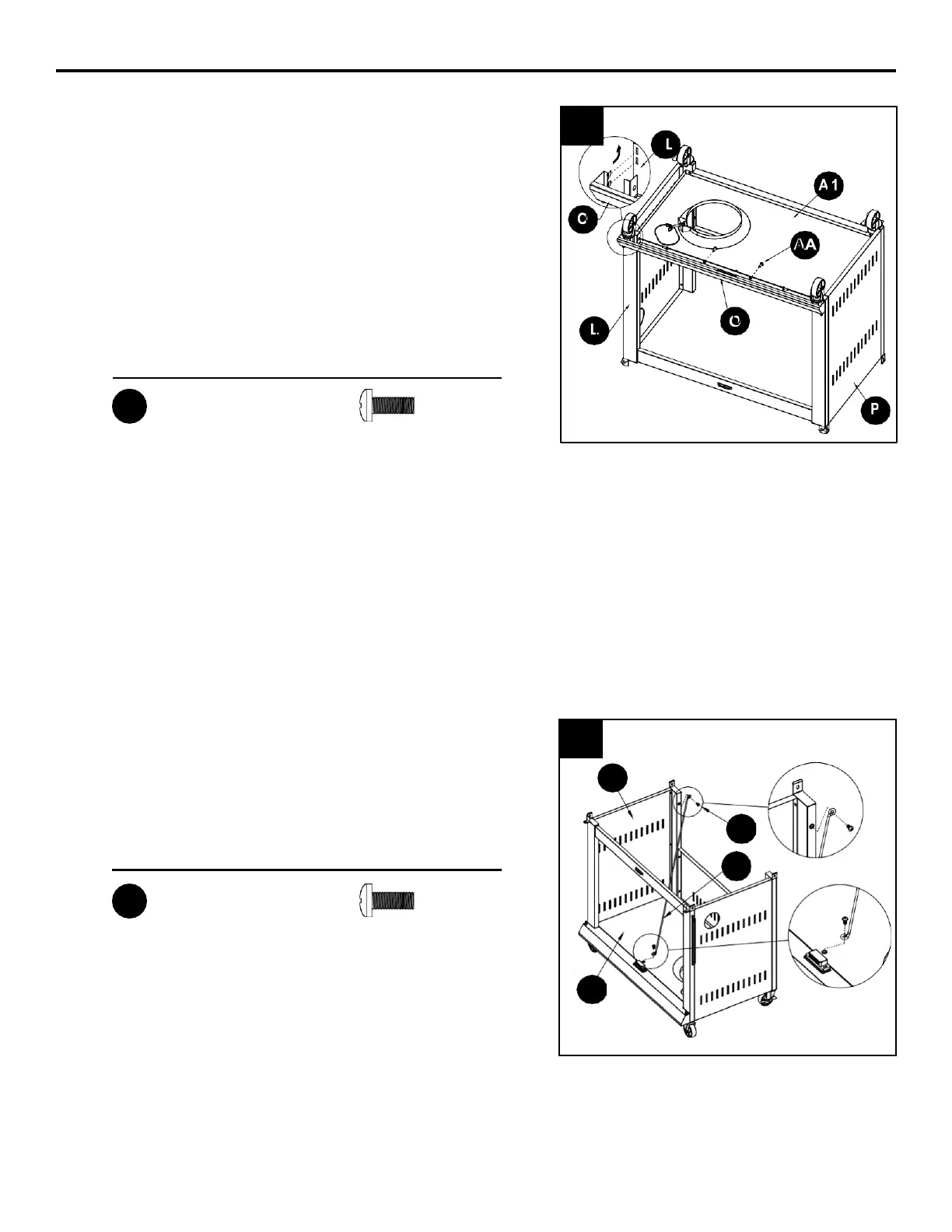

5. Insert the hook on the bottom panel skirt
assembly (O) into the slot on the cart left side
panel assembly (P) and the cart right side
panel assembly (L) as shown. Attach the
bottom panel skirt assembly (O) to the cart
bottom shelf (A1), cart left side panel assembly
(P) and the cart right side panel assembly (L)
with four M6x16 bolts (AA).
Tighten ALL bolts from step 2 securely.
Hardware Used
M6x16 Bolt
x 4
6. Attach the cylinder blocking bar (R) to the cart
left side panel assembly (P) and the cart bot-
tom panel shelf (A1) with two M6x16 bolts
(AA).
Hardware Used
M6x16 Bolt
x 2
5
AA
AA
6
P
A
A
A
A
R
R
A1
