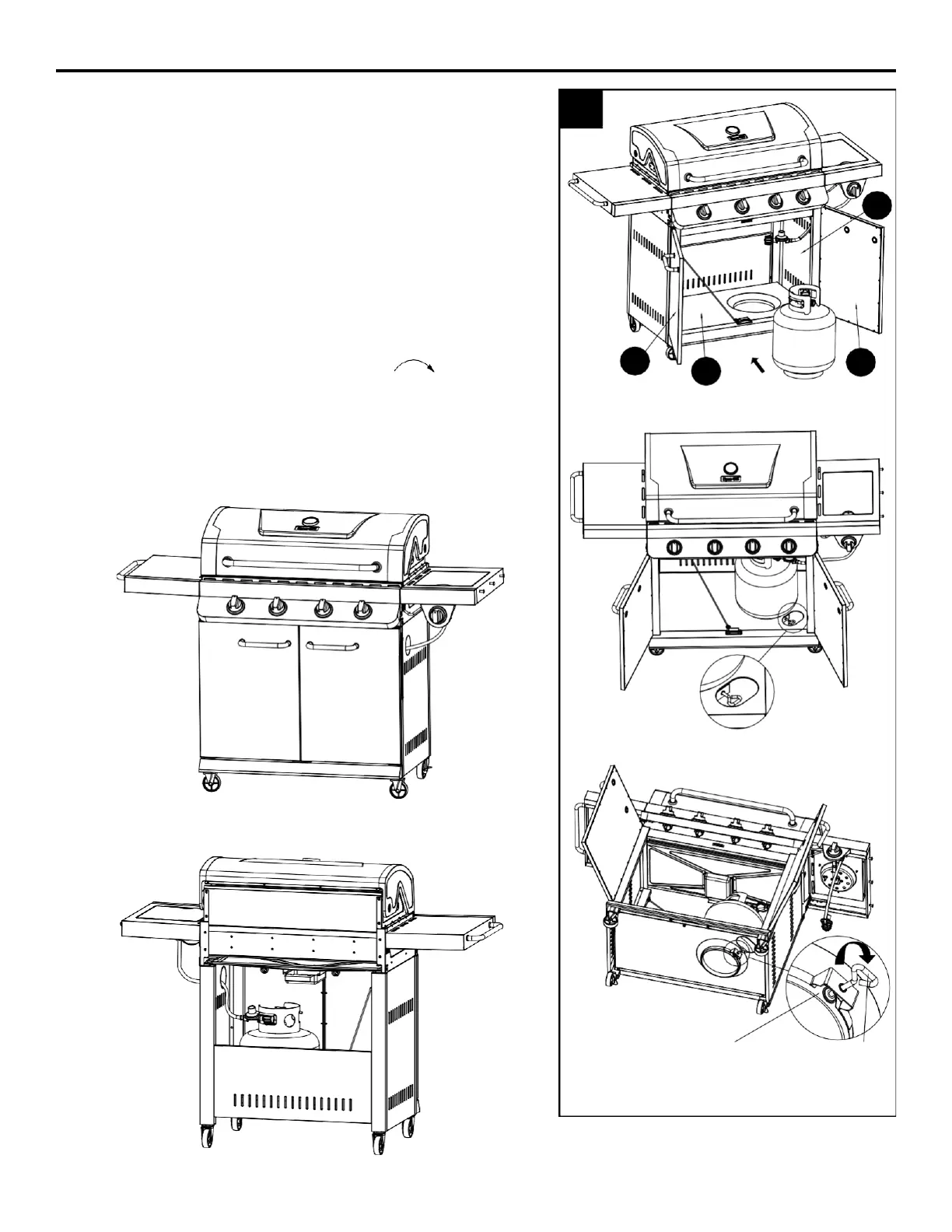

21. Open the left door assembly (Q) and the right
door assembly (K), insert the hose/regulator
assembly into the cart assembly through the
hole on the cart right side panel assembly (L).
Place LP gas cylinder (sold separately) into
the nesting hole located on the cart bottom
shelf (A1). Rotate the LP gas cylinder until the
hose/regulator coupling aligns with the thread-
ed valve of the cylinder. Hand tighten the hose/
regulator coupling to the threaded valve of the
LP gas cylinder.
Tighten the tank screw clockwise in the
rear of the cart until the LP gas cylinder is
secured in place inside the nesting hole of the
cart bottom shelf (A1).
Fully Assembled
