Dyna-Glo DGU505BAE - Assembly Instructions

10
ASSEMBLY INSTRUCTIONS

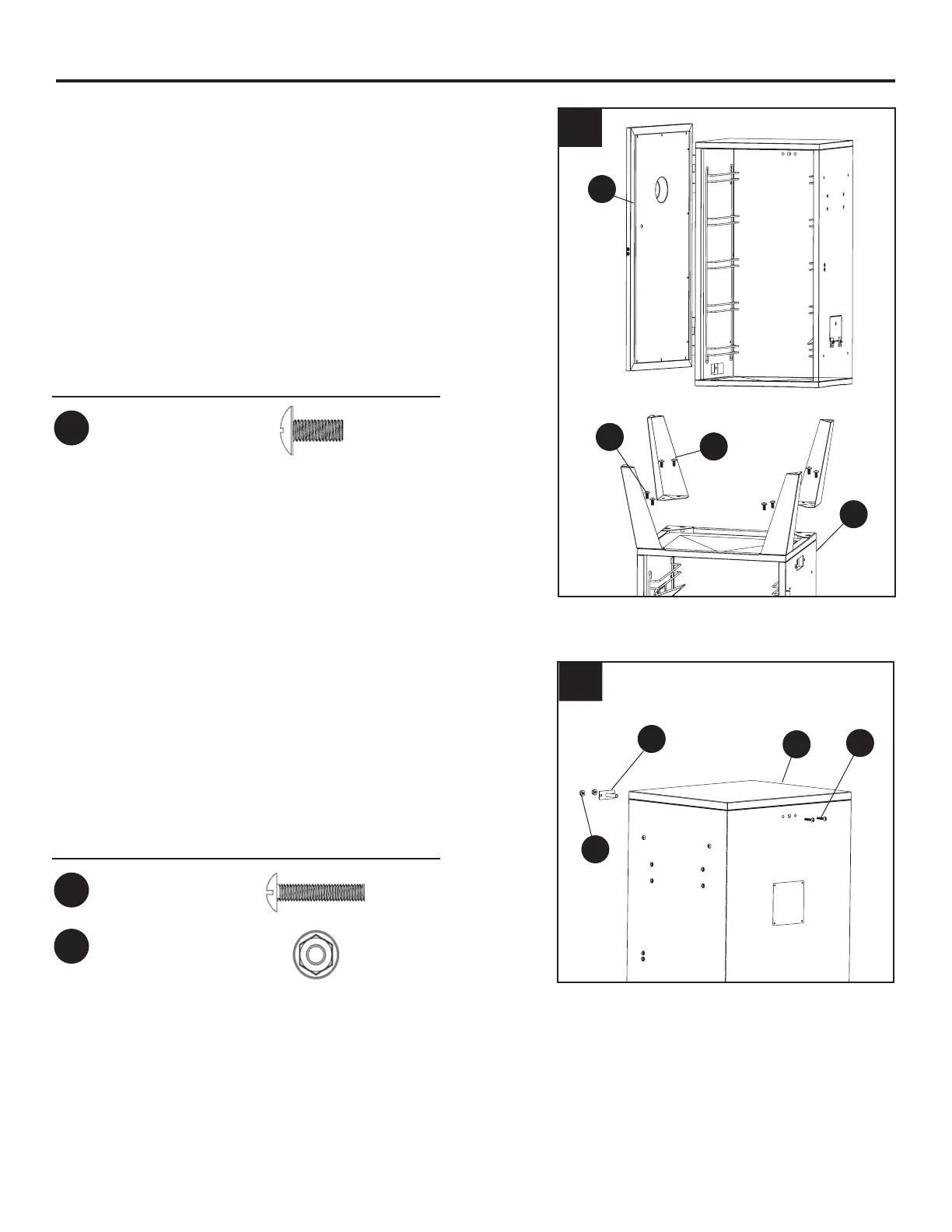

1. CAUTION: This unit is HEAVY! Do not attempt
the rst 2 steps without assistance! Remove
the door assembly (C) by opening and sliding
the doors up and off the hinges.
With the assistance of a helper, turn the smoker
cabinet assembly (A) upside down. Align the legs
(N) on the front corners of the smoker cabinet
assembly (A). Secure with 8 ¼”-20 x ½” screws
(AA). Tighten all bolts.
2. With the assistance of a helper, stand the unit up
right on its legs on a rm and level surface. Insert
the tube of the air outlet (Q) through the inside of
smoker cabinet assembly (A) and attach using 2
#10-24 x 1” screws (BB) and 2 #10-24 nuts (CC).
1
A
2
Q
BB
C
A
Hardware Used
BB
#10-24 x 1”
Screw
x 2
Hardware Used
AA
¼”-20 x ½”
Screw
x 8
AA
N
CC
#10-24 Nut
x 2
CC
