Dyna-Glo DGU505BAE - Replacement Parts List

26

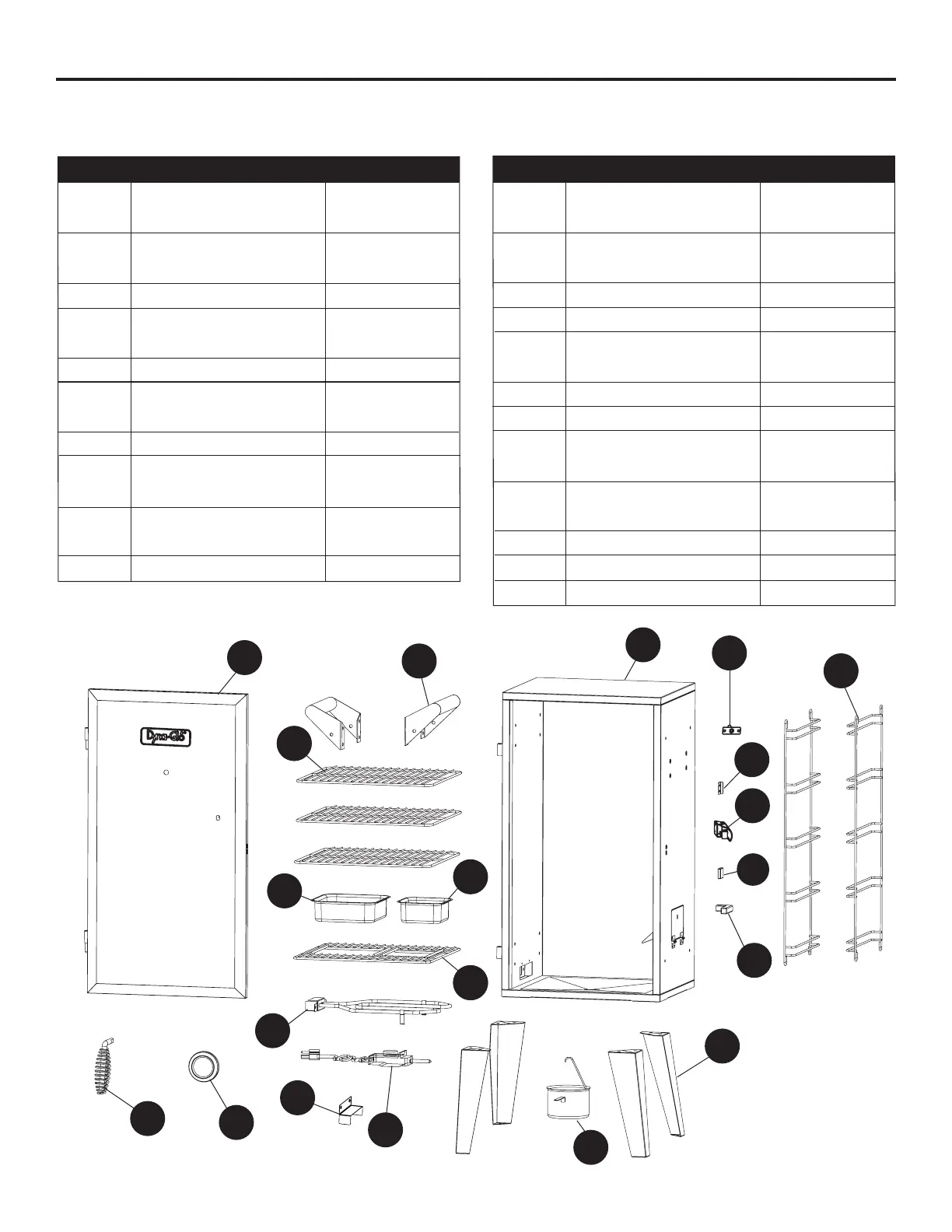

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. - 4:30 p.m.
CST, Monday - Friday or e-mail us at customerservice@ghpgroupinc.com.
70-01-560 Printed in China
PART DESCRIPTION PART #
1 Smoker Cabinet
Assembly 70 - 01 - 375
2 Door Assembly with
Logo (No Temp Gauge) 70 - 01 - 370
3 Side Handle (L/R) 70 - 01 - 373
4 Temp Gauge
Assembly* 70 - 01 - 372
5 Cooking Grates 70 - 01 - 374
6 Door Handle
Assembly 70 - 01 - 371
7 Door Latch Bracket 70 - 01 - 352
8 Door Latch Handle
(without Sleeve) 70 - 01 - 353
9 Door Latch Handle
Sleeve 70 - 01 - 356
10 Leg 70 - 01 - 379
PART DESCRIPTION PART #
11 Air Outlet Tube
Assembly 70 - 01 - 381
12 Wood Chip Access
Door Handle*
13 Water Bowl
14 Wood Chip Box
70 - 01 - 383
70 - 01 - 427
70 - 01 - 428
15 Water Bowl & Wood
Chip Box Support 70 - 01 - 376
16 Cooking Grate Support 70 - 01 - 382
17 Grease Cup Assembly 70 - 01 - 380
18 Heating Element
Assembly 70 - 01 - 377
19 Thermostat Control
Assembly 70 - 01 - 378
20 Thermostat Shield 70 - 01 - 424
n/a Hardware Pack 70 - 09 - 506
n/a Instruction Manual 70 - 10 - 560
5
3
1
6
4
2
7
10
8
9
A
15
13
17
14
16
18
19
11
12
20
