Dyna-Glo DGU505BAE - Page 11

11

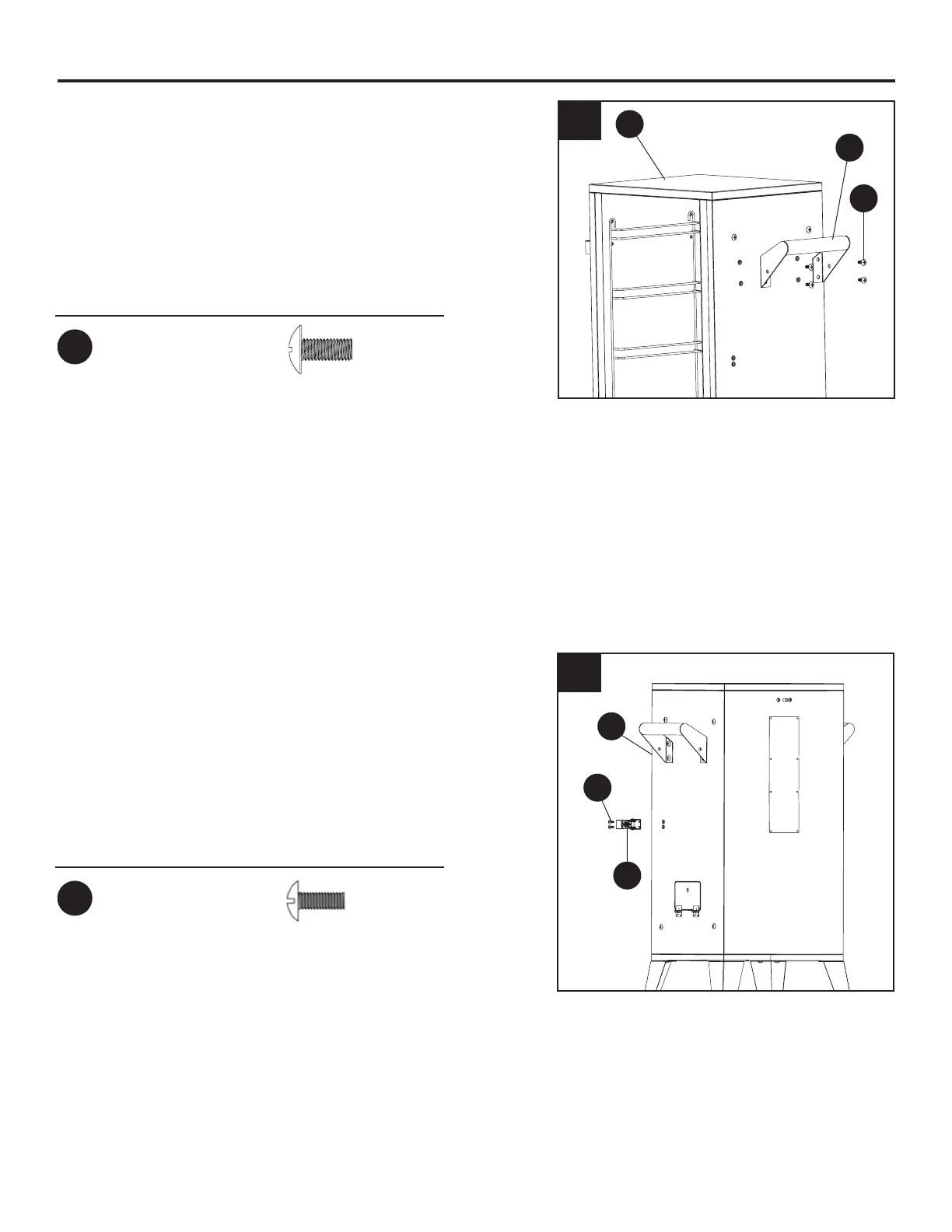

ASSEMBLY INSTRUCTIONS
3. Attach each of the side handles (B) to the smoker
cabinet assembly (A) using 4 ¼”-20 x ½” screws
(AA) per side.
4. Attach the door latch (O) to the smoker cabinet
assembly (A) using 2 #10-24 x ½” screws (DD).
A
O
AA
B
3
4
A
Hardware Used
AA
¼”-20 x ½”
Screw
x 8
Hardware Used
DD
#10-24 x ½”
Screw
x 2
DD
