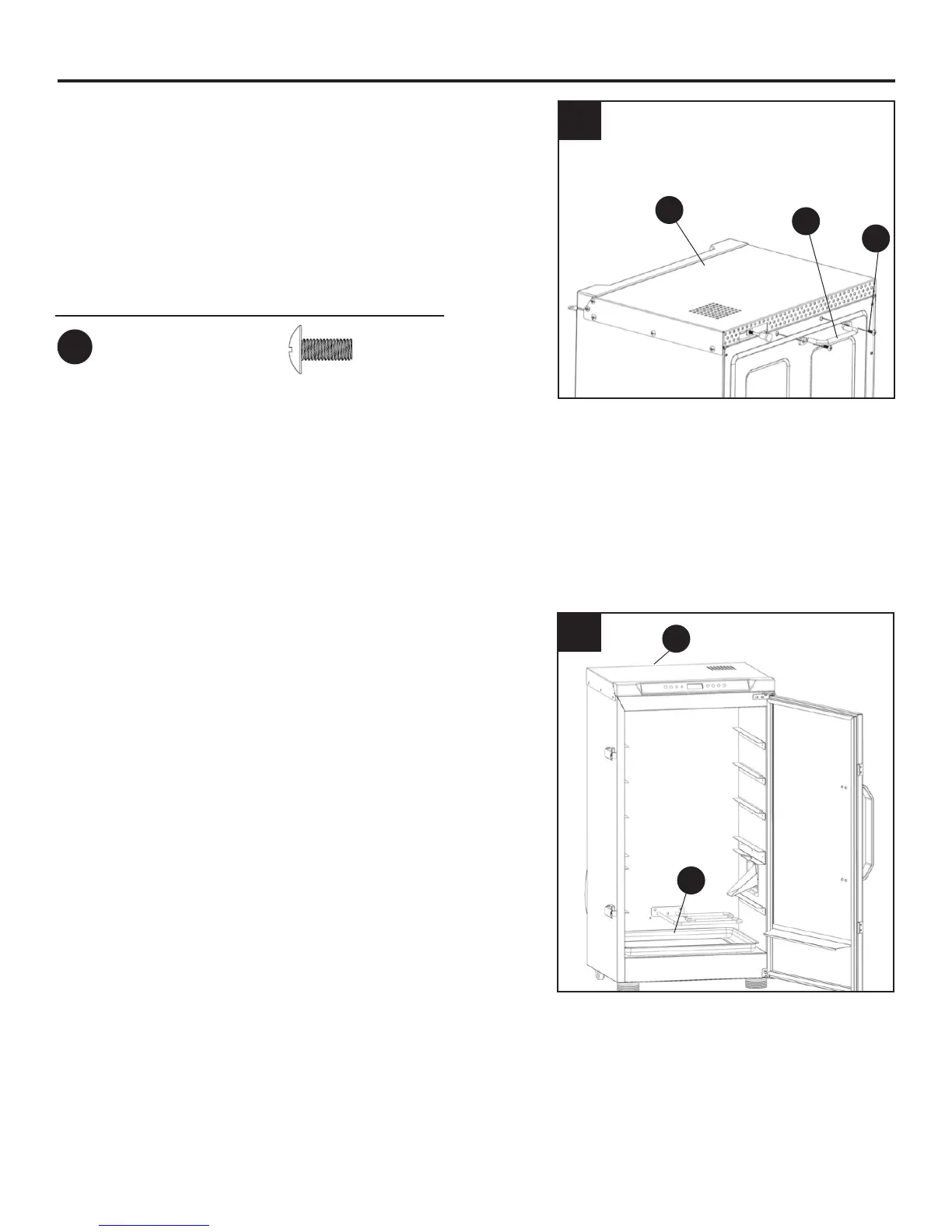

ASSEMBLY INSTRUCTIONS
3. Remove the 2 pre-assembled M5 x 12 mm screws
(AA) from the smoker cabinet assembly (A). Insert
the 2 screws into the rear handle (B) and into the
threaded holes in the smoker cabinet assembly (A).
Tighten the screws.
4. Place the grease tray (J) on the bottom of the
smoker cabinet assembly (A) as shown.
A
J
AA
B
3
4
A
Hardware Used
AA
M5 x 12 mm
Screw
x 2
