ASSEMBLY INSTRUCTIONS

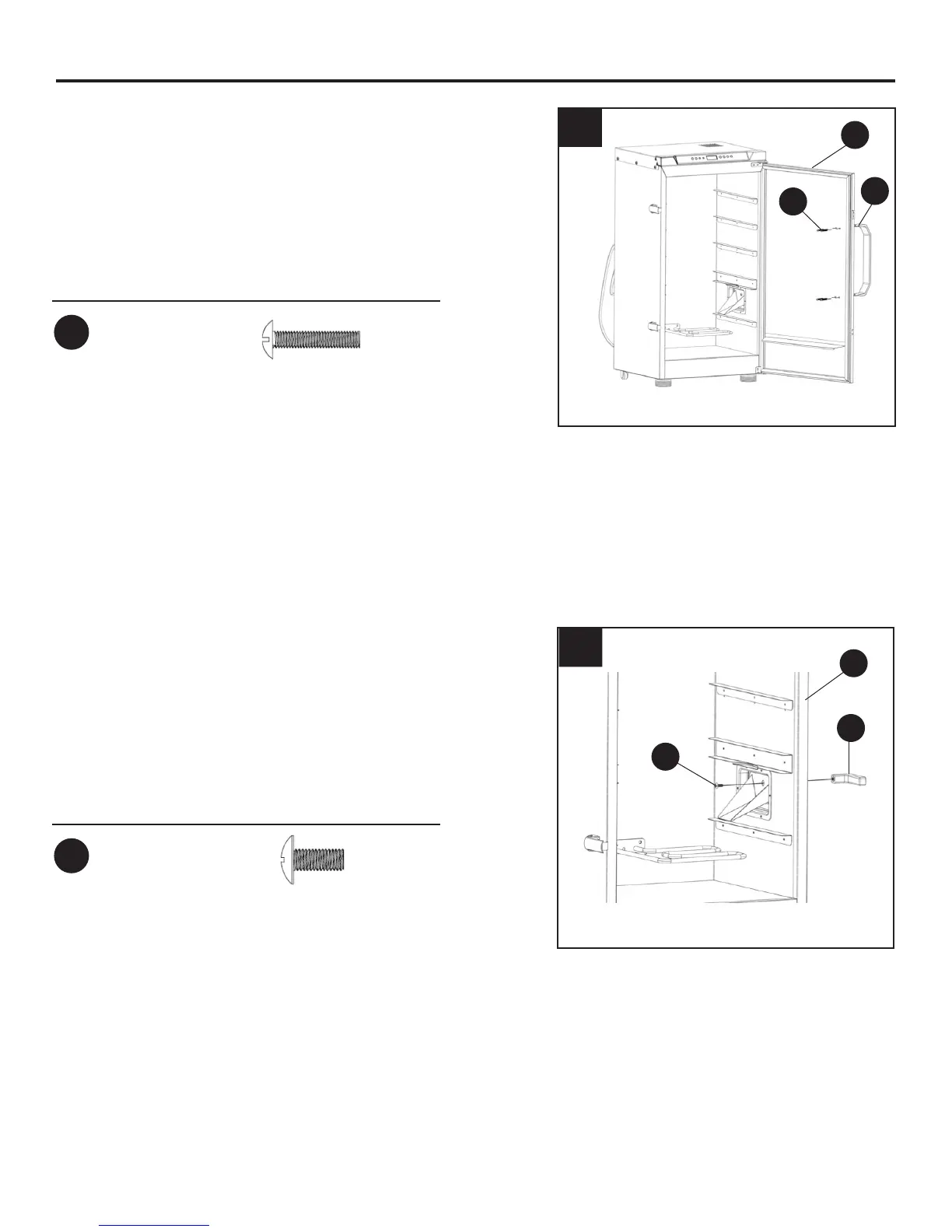

1. Remove the 4 pre-assembled M4 x 35 mm screws
(BB) from the door handle (D) and attach the
door handle (D) to the door assembly (C) as
shown. Tighten the screws.
2. Remove 1 pre-assembled M5 x 12 mm screw (AA)
from the wood chip access door handle (E).
Insert the screw into the smoker cabinet assembly
(A) and into the thread holes in the wood chip
access door handle (E). Tighten the screw.
1
D
2
E
AA
C
A
Hardware Used
AA
M5 x 12 mm
Screw
x 1
Hardware Used
BB
M4 x 35 mm
Screw
x 4
BB
