ASSEMBLY INSTRUCTIONS

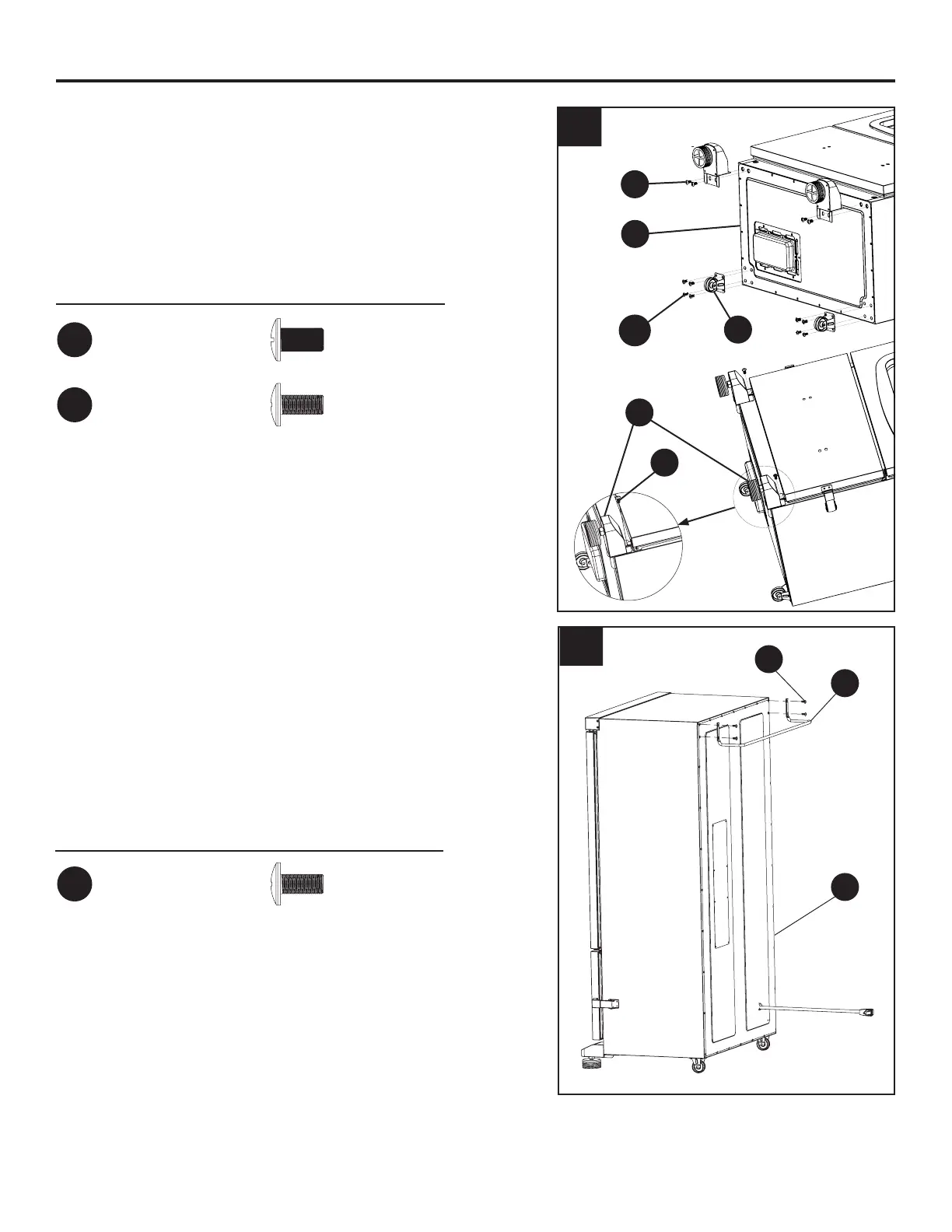

Remove the pre-installed screws on the bottom of
the cabinet assembly (A). Attach each of the rear
casters (B) to the bottom of the cabinet assembly
(A) using 4 M5 x 12 (CC) screws per caster. At-
tach the bottom of the front legs (C) to the bottom
of the cabinet assembly (A) using 3 M6 x 12 (BB)
screws per leg.
CAUTION: This unit is HEAVY! Do not attempt
this step without assistance!
With the assistance of a helper, stand the smoker
uprightonarmandlevelsurface.(Makesure
thatlegsandcastersarermlyattached).Re-
move the pre-installed screws on the back of the
cabinet assembly (A) and attach the rear handle
(D) using the pre-installed screws.
2.
1.
Hardware Used
Hardware Used
v
1
C
BB
B
A
BB
2
D
A
CC
M6 x 12 mm
Screw
x 6
BB
M5 x 12 mm
Screw
x 8
CC
M5 x 12 mm
Screw
x 4
CC
CC
