Dyna-Glo DGX780BDC-D - Replacement Parts List; Parts Identification and Numbers

19

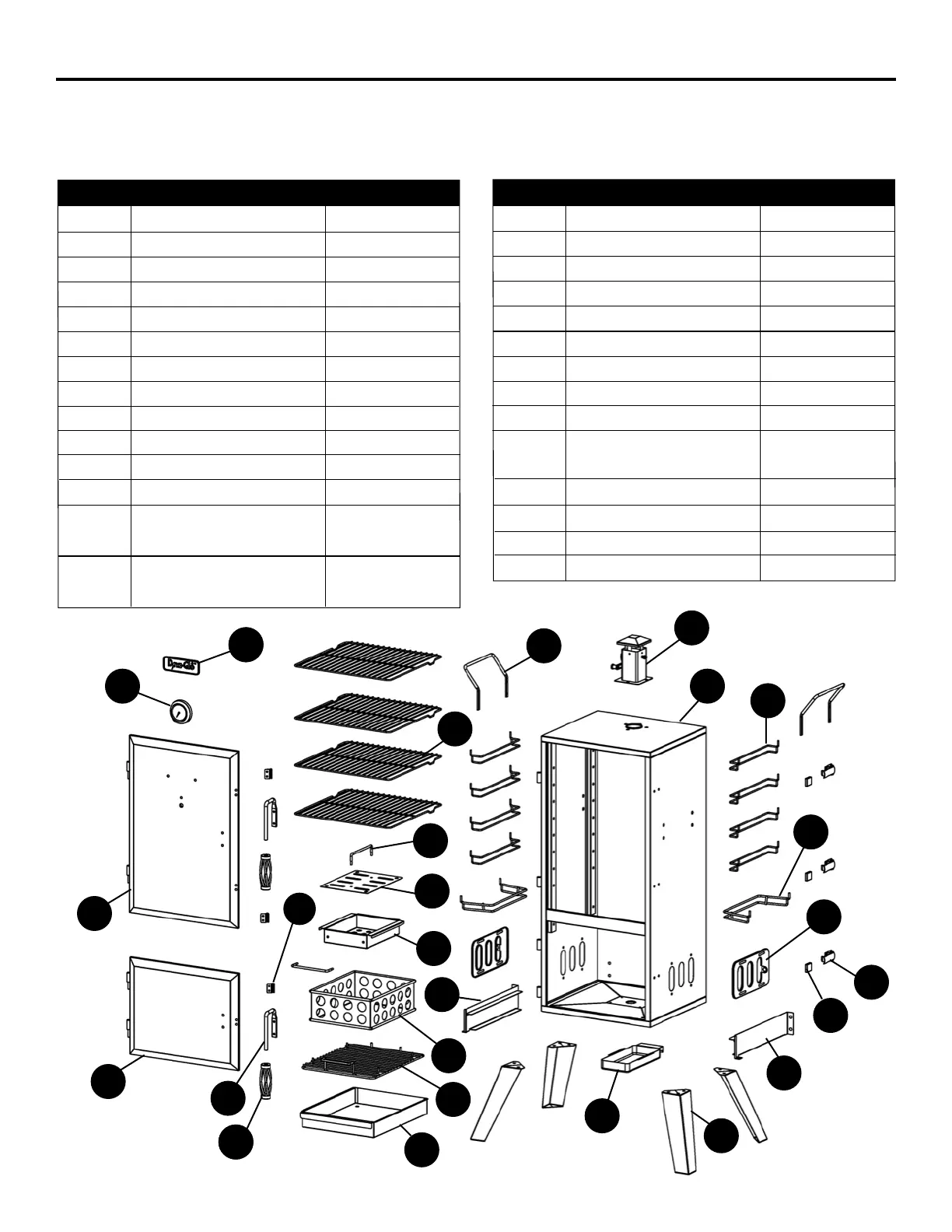

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. - 4:30 p.m.
CST, Monday - Friday or e-mail customerservice@ghpgroupinc.com.
70-01-115 Printed in China
PART DESCRIPTION PART #
1 Square smoke stack 312-02009-00
2 Smoker body 70-01-230
3 Lifting handle 70-01-231
4 Temperature gauge 211-02005
5
Logo plate - Dyna-Glo* 211-02002
6 Cooking grate 312-01014-00
7 Upper door 70-01-232
8 Lower door 70-01-233
9 Door latch bracket 70-01-156
10 Side damper plate* 70-01-239
11 Leg 301-01016-00
12 Grease cup 313-12002-01
13 Charcoal grate
support - right 70-01-234
14 Charcoal grate
support - left 70-01-235
PART DESCRIPTION PART #
15
Door handle grip* 70-01-169
16
Door handle base 70-01-170
17 Ash tray

18 Charcoal grate 314-00001-01
19 Charcoal chamber

20 Wood chip box 70-01-236
21 Cooking grate support 302-01030-00
22 Door latch 70-01-161
23 Door latch handle 70-01-160
24 Wood chip box handle
/Lid handle 301-01029-02
25 Wood chip box lid 70-01-237
26 Wood chip box support 70-01-238
n/a Hardware pack 70-09-109
n/a Instruction manual 70-10-115
