1. Insert the SSD to the connector CN1900 on the System Board.
2. Push down the SSD and secure it with the screw.
4.13
Fan
4.13.1
Removing the Fan
To remove the Fan, follow the steps below.
1. Disconnect the LCD harness from the connector CN5390 on the
System Board.
2. Disconnect the Fan harness from the connector CN3380 and CN3390
on the System Board.
3. Remove the following screws and the Fan from the Cover Assembly.

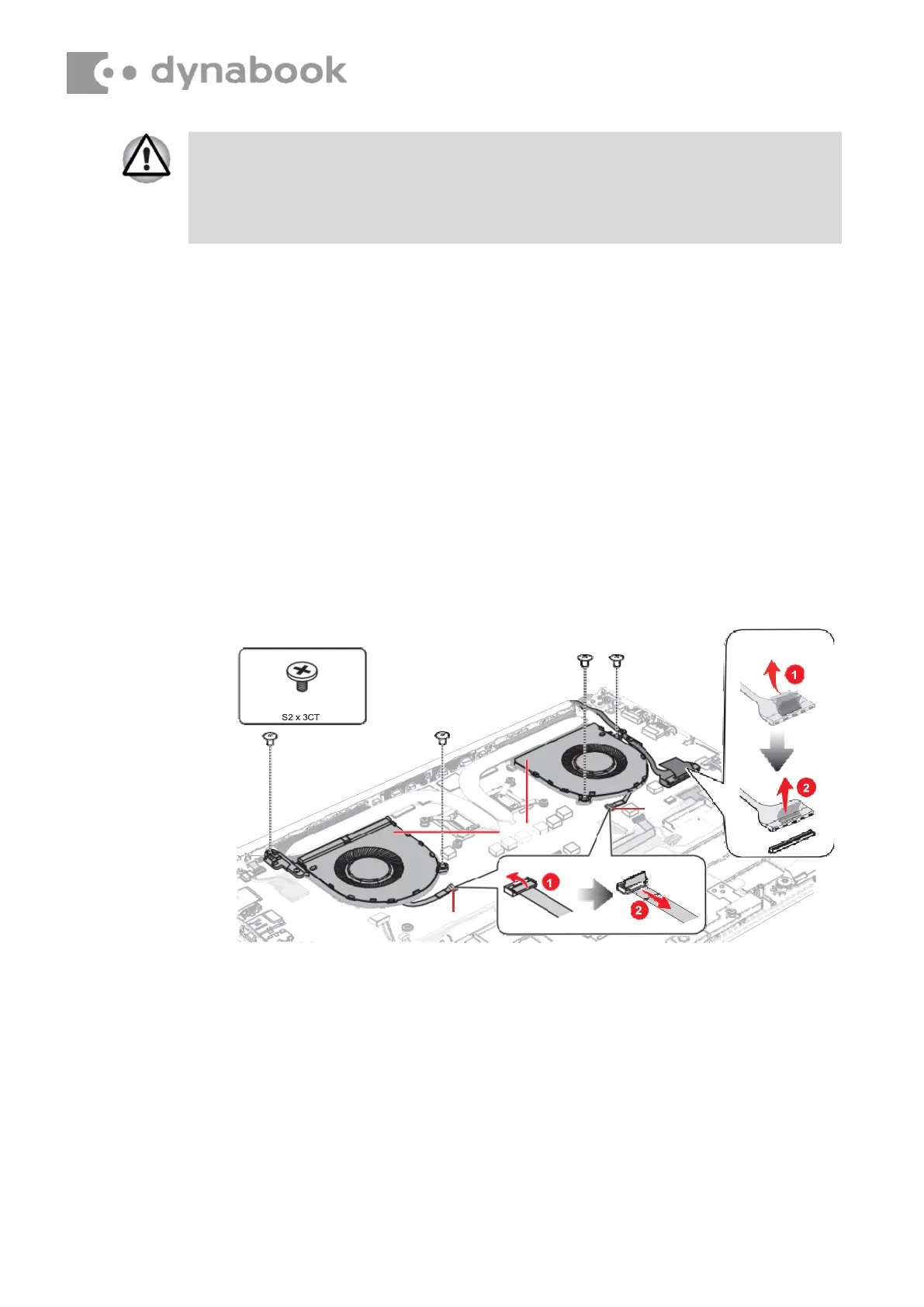

Figure 4-8 Removing the Fan
4.13.2
Installing the Fan
To install the Fan, follow the steps below.
1. Set the Fan in place on the Cover Assembly and secure it with the
screws.
2. Connect the Fan harness to the connector CN3380 and CN3390 on
the System Board.
3. Arrange the LCD harness in place, and connect the harness to the
connector.
To avoid damage, always hold the SSD only by its sides.
To prevent the SSD from being distorted when installing the SSD pack into
the computer, do not press the center of the SSD pack. Always hold the
SSD pack by its sides.
